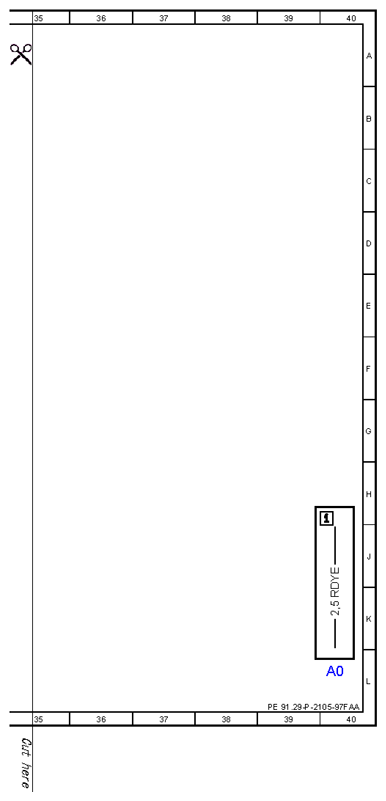

| A0 |
Color code key |
40L |
| CAN B |
Interior CAN |
12K |
| F34 |
Interior fuse box |
3L |
| F34f126 |
Fuse 126 |
2K |

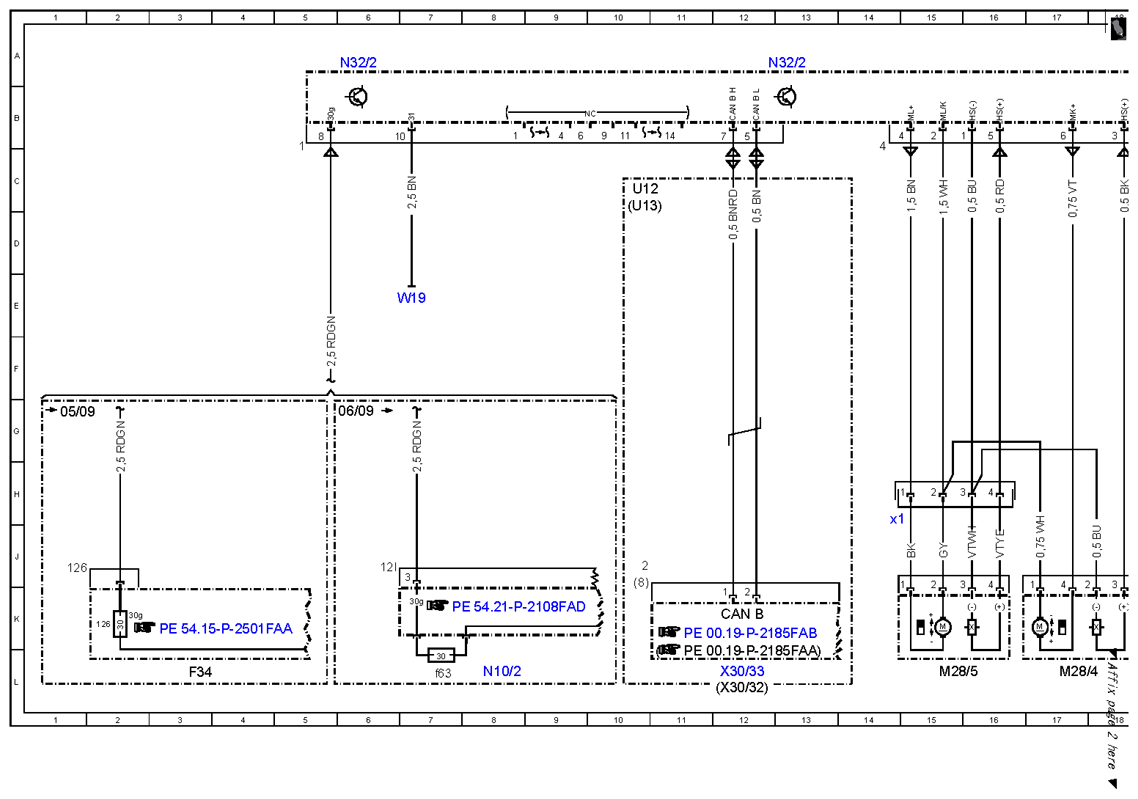

| M28/1 |
Front passenger seat fore/aft adjustment motor |
23L |
| M28/2 |
Front passenger seat height adjustment motor |
21L |
| M28/3 |
Front passenger seat inclination adjustment motor |
19L |
| M28/4 |
Front passenger seat head restraint adjustment motor |
17L |
| M28/5 |
Front passenger seat backrest inclination adjustment motor |
15L |
| M28/5x1 |
Seat backrest inclination adjustment motor electrical connector, front passenger seat |
14H |
| N10/2 |
Rear SAM control unit with fuse and relay module |
8L |
| N10/2f63 |
Fuse 63 |
7L |
| N32/2 |
Front passenger seat control unit |
6A |
| N32/2 |
Front passenger seat control unit |
13A |
| N32/2 |
Front passenger seat control unit |
20A |
| N32/2 |
Front passenger seat control unit |
28A |
| N32/24 |
Front passenger seat lumbar support adjustment control unit |
28L |

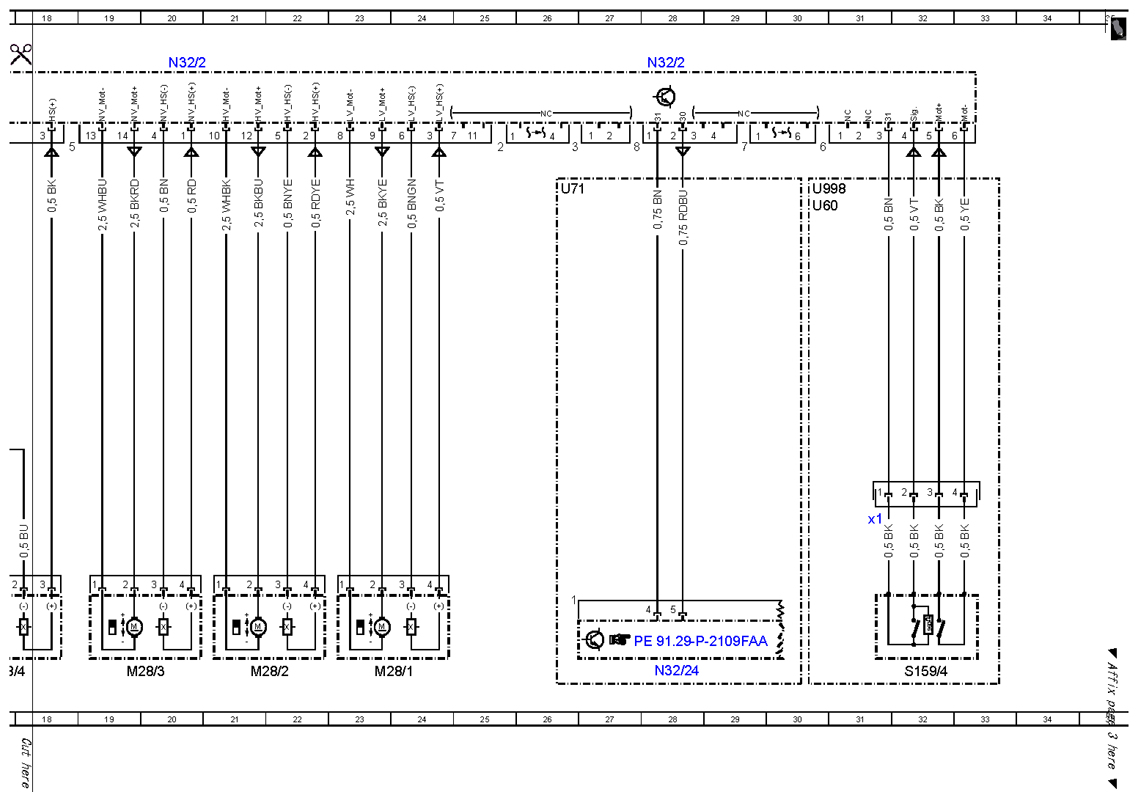

| S159/4 |
EASY-ENTRY system limit switch, front passenger seat |
32L |
| S159/4x1 |
EASY-ENTRY system limit switch electrical connector, front passenger seat |
31H |
| U12 |
Valid for left-hand drive vehicles |
10C |
| U13 |
Valid for right-hand drive vehicles |
10C |
| U60 |
Valid for model 204.3 |
30C |
| U71 |
Valid for fully electric seat adjustment with memory function |
26C |
| U998 |
Valid for EASY-ENTRY |
30C |
| W19 |
Right front seat crossmember ground point |
7E |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
12L |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
12L |
