| A0 |
Color code key |
40L |

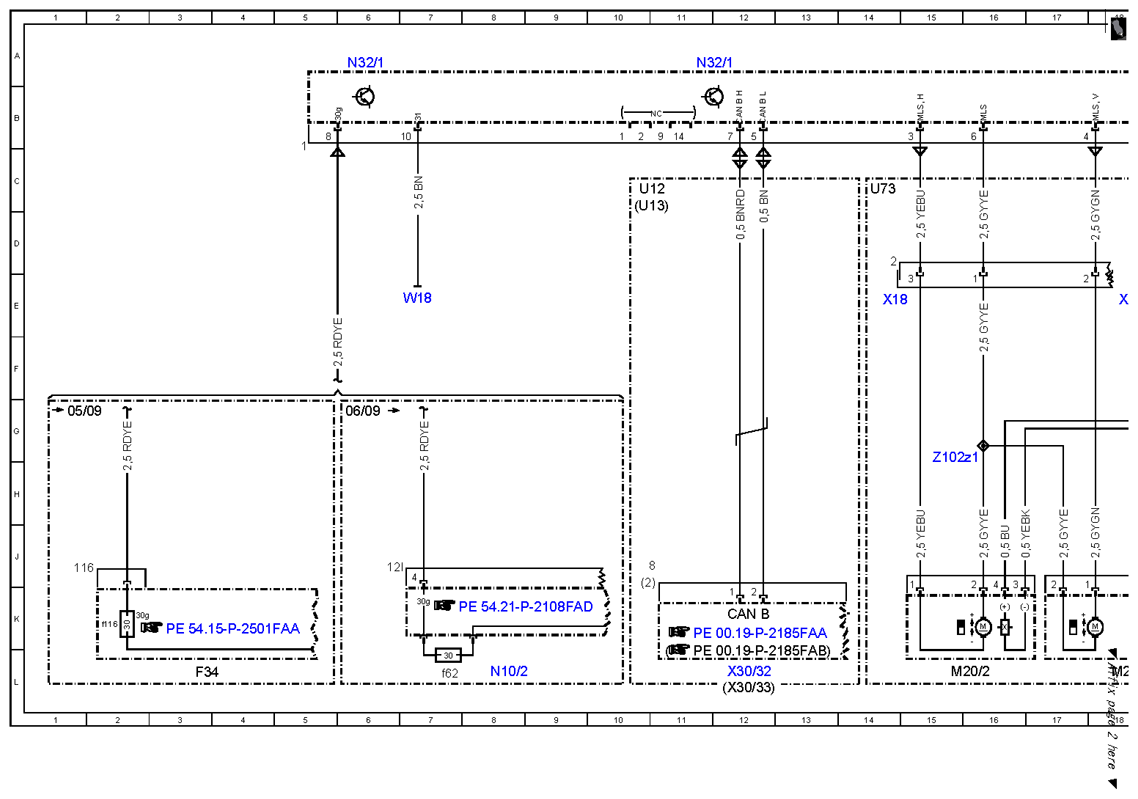

| CAN B |
Interior CAN |
12K |
| F34 |
Interior fuse box |
3L |
| F34f116 |
Fuse 116 |
2K |
| M20/1 |
Steering column in/out adjustment motor |
18L |
| M20/2 |
Steering column up/down adjustment motor |
15L |
| M27/1 |
Driver seat fore/aft adjustment motor |
29L |
| M27/2 |
Driver seat height adjustment motor |
27L |
| M27/3 |
Driver seat inclination adjustment motor |
25L |
| M27/4 |
Driver seat head restraint adjustment motor |
23L |
| M27/5 |
Driver seat backrest inclination adjustment motor |
21L |
| M27/5x1 |
Seat backrest inclination adjustment motor electrical connector, driver seat |
20H |
| N10/2 |
Rear SAM control unit with fuse and relay module |
8L |
| N10/2f62 |
Fuse 62 |
7L |

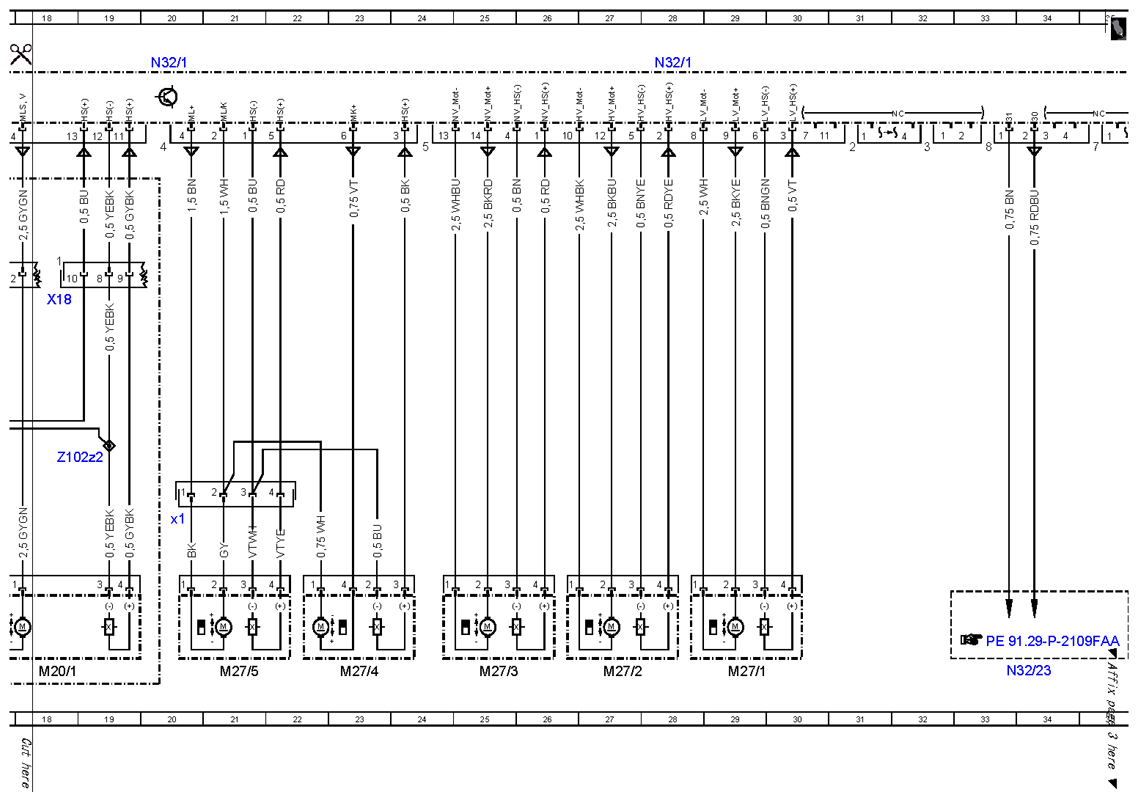

| N32/1 |
Driver seat control unit |
6A |
| N32/1 |
Driver seat control unit |
11A |
| N32/1 |
Driver seat control unit |
20A |
| N32/1 |
Driver seat control unit |
28A |
| N32/1 |
Driver seat control unit |
36A |
| N32/23 |
Driver seat lumbar support adjustment control unit |
34L |

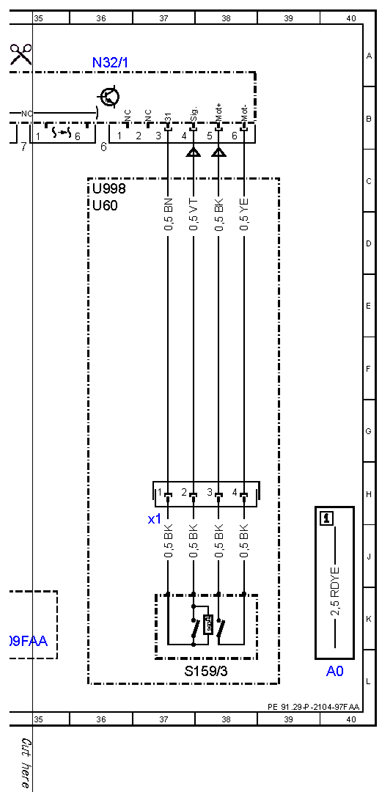

| S159/3 |
EASY-ENTRY system limit switch, driver seat |
38L |
| S159/3x1 |
EASY-ENTRY system limit switch electrical connector, driver seat |
37H |
| U12 |
Valid for left-hand drive vehicles |
10C |
| U13 |
Valid for right-hand drive vehicles |
10C |
| U60 |
Valid for model 204.3 |
36C |
| U73 |
Valid for electric steering column adjustment |
14C |
| U998 |
Valid for EASY-ENTRY |
36C |
| W18 |
Left front seat crossmember ground point |
7E |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
14E |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
18E |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
12L |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
12L |
| Z102z1 |
Steering column adjustment connector sleeve |
15G |
| Z102z2 |
Steering column adjustment connector sleeve |
19G |
