| A0 |
Color code key |
80L |
| A45 |
Fanfare horns and airbag clock spring contact |
11J |
| A53 |
Left sidebag sensor |
21L |
| A54 |
Right sidebag sensor |
23L |

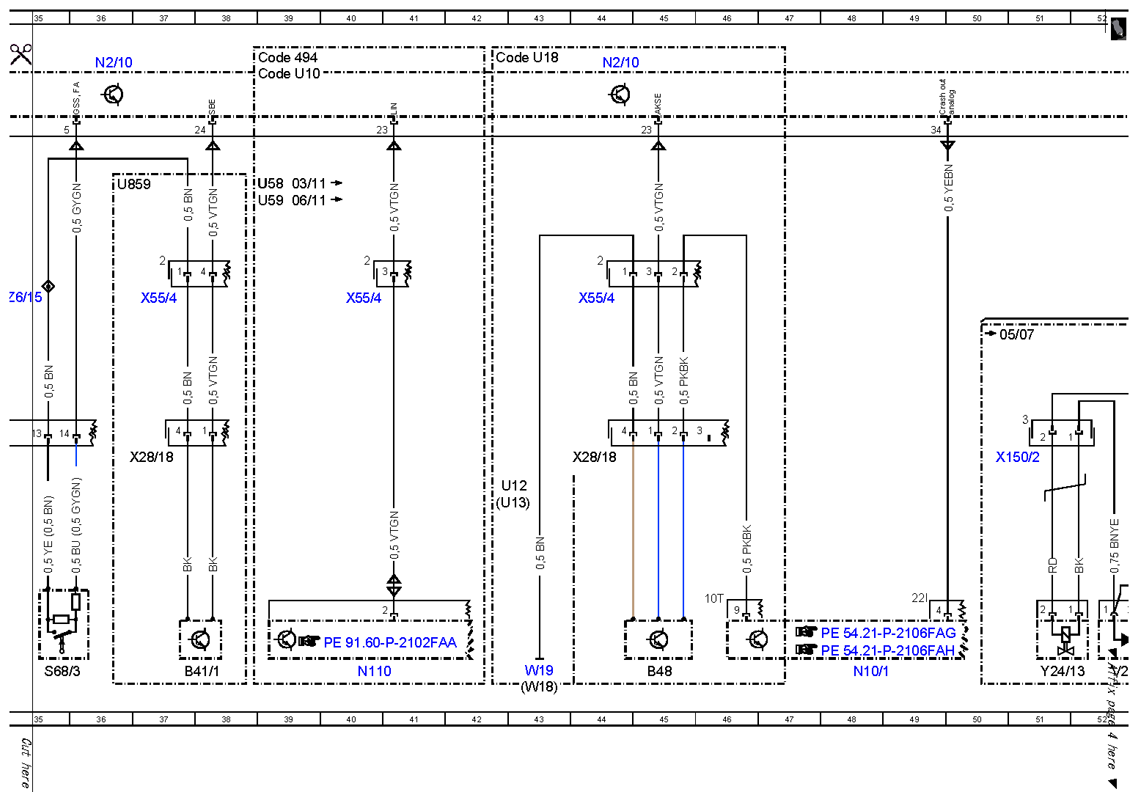

| B41/1 |
Front passenger seat occupied recognition |
37L |
| B48 |
Front passenger seat occupied recognition and ACSR |
45L |
| B48/1 |
Left frontal acceleration sensor |
27L |
| B48/2 |
Right frontal acceleration sensor |
28L |
| B48/7 |
Left front door pressure sensor |
24L |
| B48/8 |
Right front door pressure sensor |
25L |
| CAN E |
Chassis CAN |
7K |
| Code 359 |
TELEAID emergency call system |
75F |
| Code 494 |
USA version |
38A |
| Code U10 |
Weight sensing system (WSS) |
38A |
| Code U18 |
Automatic child seat recognition (ACSR[AKSE]) |
42A |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1 |
Front SAM control unit with fuse and relay module |
48L |
| N10/1f15 |
Fuse 15 |
2L |
| N10/1f8 |
Fuse 8 |
5L |

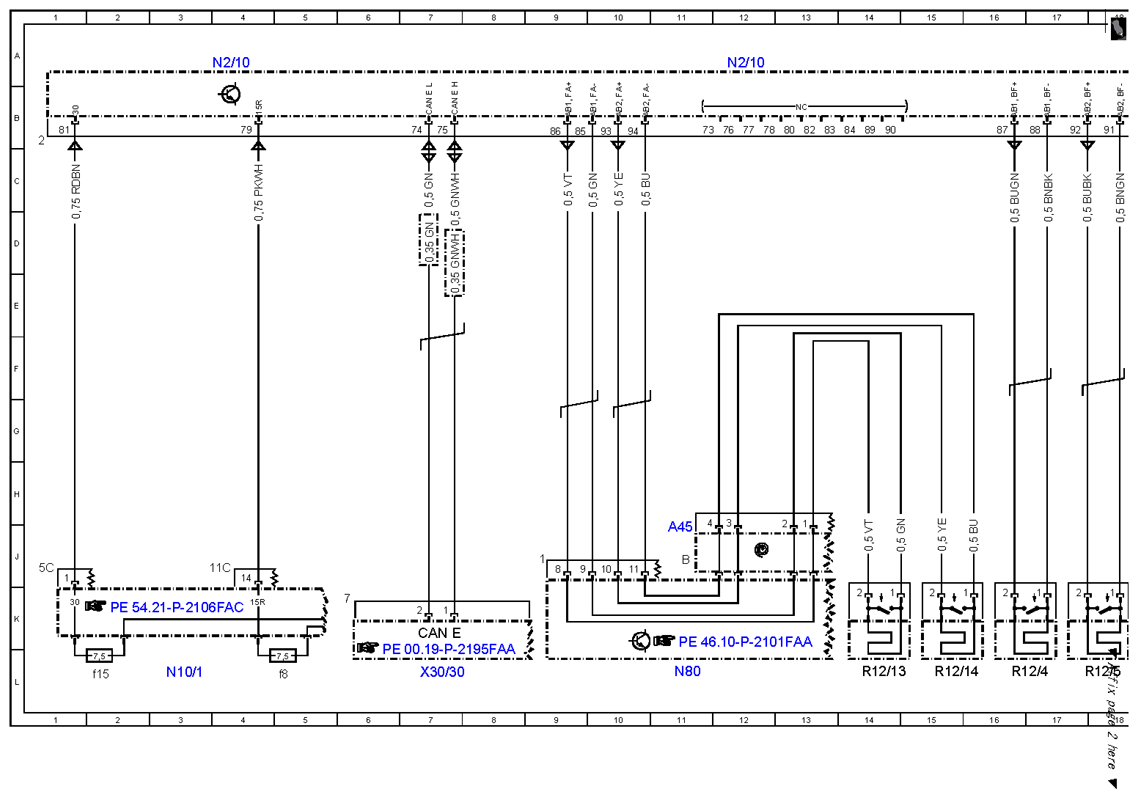

| N10/2 |
Rear SAM control unit with fuse and relay module |
67L |
| N110 |
Weight Sensing System (WSS) control unit |
40L |
| N123/4 |
Emergency call system control unit |
77L |
| N2/10 |
Supplemental restraint system control unit |
4A |
| N2/10 |
Supplemental restraint system control unit |
12A |
| N2/10 |
Supplemental restraint system control unit |
20A |
| N2/10 |
Supplemental restraint system control unit |
28A |
| N2/10 |
Supplemental restraint system control unit |
36A |
| N2/10 |
Supplemental restraint system control unit |
44A |
| N2/10 |
Supplemental restraint system control unit |
53A |
| N2/10 |
Supplemental restraint system control unit |
61A |
| N2/10 |
Supplemental restraint system control unit |
68A |
| N2/10 |
Supplemental restraint system control unit |
76A |
| N80 |
Steering column module control unit |
11L |

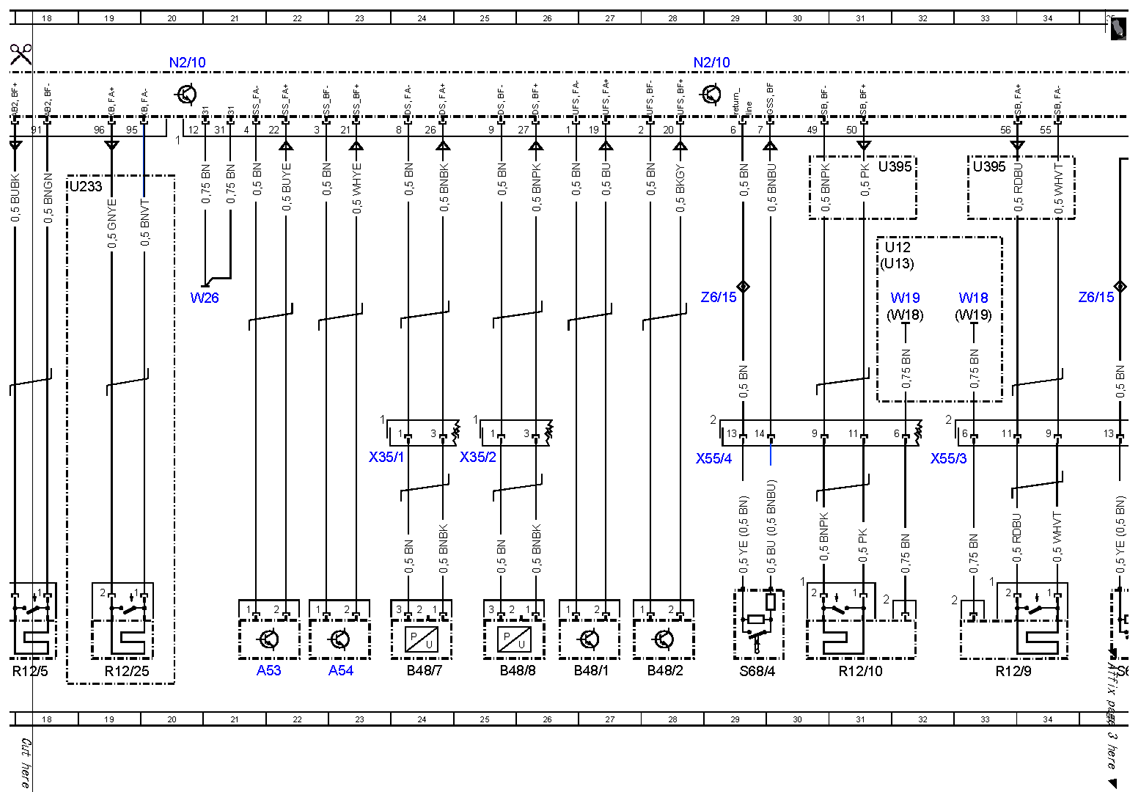

| R12/10 |
Front passenger sidebag squib |
31L |
| R12/13 |
Driver airbag squib 1 |
14L |
| R12/14 |
Driver airbag squib 2 |
15L |
| R12/25 |
Driver kneebag squib |
19L |
| R12/4 |
Front passenger airbag squib 1 |
16L |
| R12/5 |
Front passenger airbag squib 2 |
18L |
| R12/9 |
Driver sidebag squib |
33L |
| S68/14 |
Center rear seat belt buckle switch |
61L |
| S68/14x1 |
Center rear seat belt buckle switch electrical connector |
61J |
| S68/3 |
Driver seat belt buckle restraint system switch |
35L |
| S68/4 |
Front passenger seat belt buckle restraint system switch |
29L |
| S68/5 |
Left rear seat belt buckle switch |
58L |
| S68/5x1 |
Left rear seat belt buckle switch electrical connector |
57J |
| S68/6 |
Right rear seat belt buckle switch |
64L |
| S68/6x1 |
Right rear seat belt buckle switch electrical connector |
64J |
| U108 |
Valid for rear seat belt buckles |
57F |
| U108 |
Valid for rear seat belt buckles |
57F |
| U12 |
Valid for left-hand drive vehicles |
31D |
| U12 |
Valid for left-hand drive vehicles |
42H |
| U13 |
Valid for right-hand drive vehicles |
31D |
| U13 |
Valid for right-hand drive vehicles |
42H |
| U233 |
Valid for kneebag |
18C |
| U395 |
Not valid for Black Series |
31C |
| U395 |
Not valid for Black Series |
33C |
| U395 |
Not valid for Black Series |
53C |
| U395 |
Not valid for Black Series |
55F |
| U395 |
Not valid for Black Series |
74C |
| U395 |
Not valid for Black Series |
73F |
| U57 |
Valid for model 204.2 |
58H |
| U57 |
Valid for model 204.2 |
62H |
| U57 |
Valid for model 204.2 |
60H |
| U58 |
Valid for model 204.0 |
38C |
| U58 |
Valid for model 204.0 |
58J |
| U58 |
Valid for model 204.0 |
62J |
| U58 |
Valid for model 204.0 |
60J |
| U59 |
Valid for model 204.9 |
38C |
| U59 |
Valid for model 204.9 |
58J |
| U59 |
Valid for model 204.9 |
62J |
| U59 |
Valid for model 204.9 |
60J |
| U60 |
Valid for model 204.3 |
62J |
| U60 |
Valid for model 204.3 |
58J |
| U859 |
Valid for seat belt reminder warning |
36C |
| V24 |
Driver overvoltage protection diode |
71L |
| V25 |
Front passenger overvoltage protection diode |
52L |

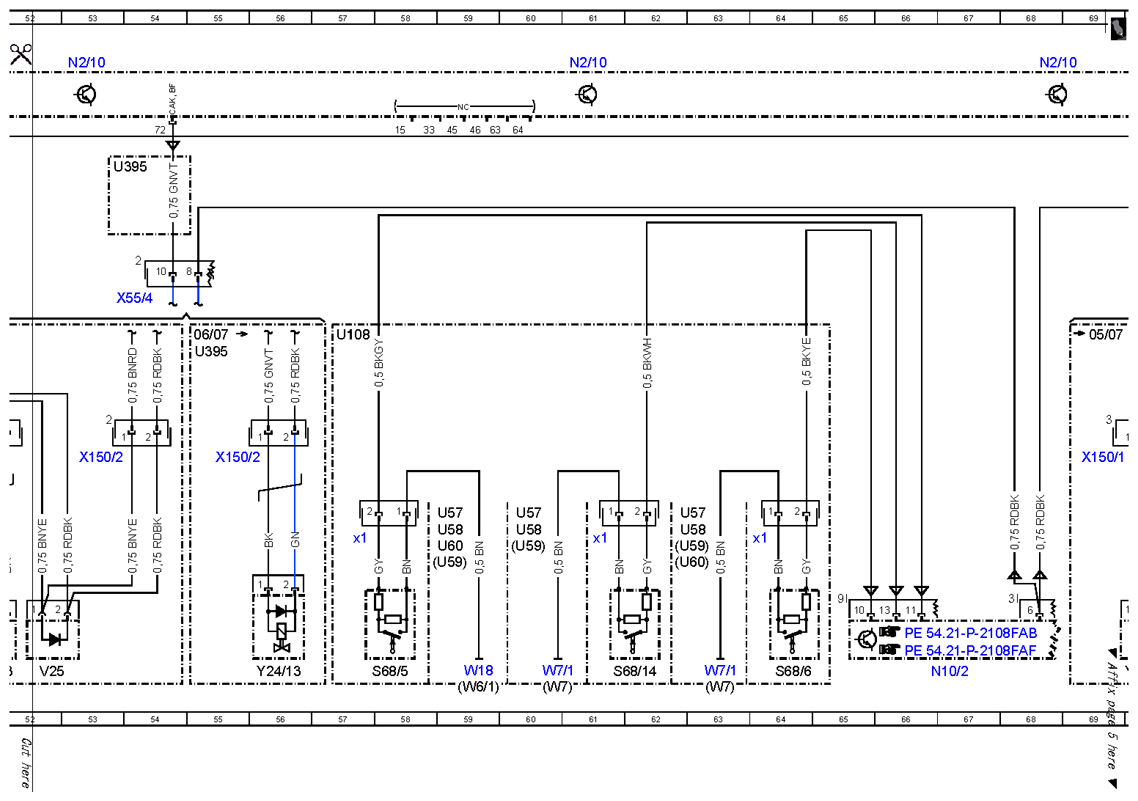

| W18 |
Left front seat crossmember ground point |
32E |
| W18 |
Left front seat crossmember ground point |
33E |
| W18 |
Left front seat crossmember ground point |
43L |
| W18 |
Left front seat crossmember ground point |
59L |
| W19 |
Right front seat crossmember ground point |
33E |
| W19 |
Right front seat crossmember ground point |
32E |
| W19 |
Right front seat crossmember ground point |
43L |
| W26 |
Supplemental restraint system (SRS) control unit ground point |
20E |
| W6/1 |
Left tail lamp trunk ground point |
59L |
| W7 |
Right wheelhouse trunk ground point |
63L |
| W7 |
Right wheelhouse trunk ground point |
60L |
| W7/1 |
Right tail lamp trunk ground point |
63L |
| W7/1 |
Right tail lamp trunk ground point |
60L |

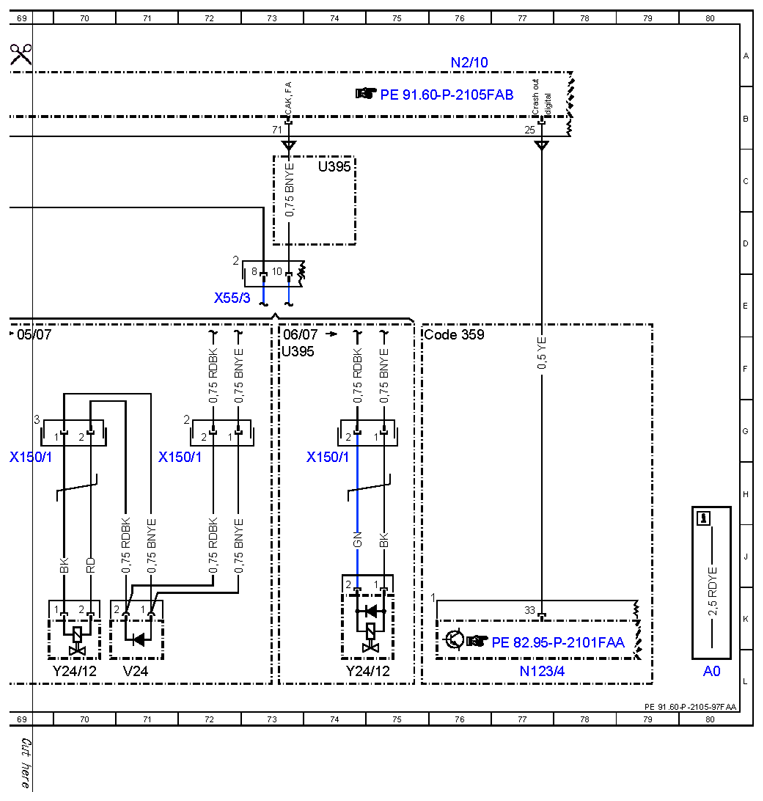

| X150/1 |
Driver NECK-PRO head restraint electrical connector |
69H |
| X150/1 |
Driver NECK-PRO head restraint electrical connector |
72H |
| X150/1 |
Driver NECK-PRO head restraint electrical connector |
74H |
| X150/2 |
Front passenger NECK-PRO head restraint electrical connector |
53H |
| X150/2 |
Front passenger NECK-PRO head restraint electrical connector |
51H |
| X150/2 |
Front passenger NECK-PRO head restraint electrical connector |
55H |
| X28/18 |
ACSR [AKSE] seat occupied recognition electrical connector |
37H |
| X28/18 |
ACSR [AKSE] seat occupied recognition electrical connector |
44H |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
7L |
| X35/1 |
Left front door electrical connector |
23H |
| X35/2 |
Right front door electrical connector |
25H |
| X55/3 |
Driver seat connector block |
32H |
| X55/3 |
Driver seat connector block |
72E |
| X55/4 |
Front passenger seat connector block |
29H |
| X55/4 |
Front passenger seat connector block |
37E |
| X55/4 |
Front passenger seat connector block |
40E |
| X55/4 |
Front passenger seat connector block |
54E |
| X55/4 |
Front passenger seat connector block |
44E |
| Y24/12 |
Driver seat NECK-PRO head restraint solenoid |
74L |
| Y24/12 |
Driver seat NECK-PRO head restraint solenoid |
70L |
| Y24/13 |
Front passenger seat NECK-PRO head restraint solenoid |
51L |
| Y24/13 |
Front passenger seat NECK-PRO head restraint solenoid |
56L |
| Z6/15 |
Right seat belt buckle circuit 31 connector sleeve |
29E |
| Z6/15 |
Right seat belt buckle circuit 31 connector sleeve |
35E |
