Remove/install rear seat backrest side padding - AR91.12-P-1710CX

MODEL 204.2/9

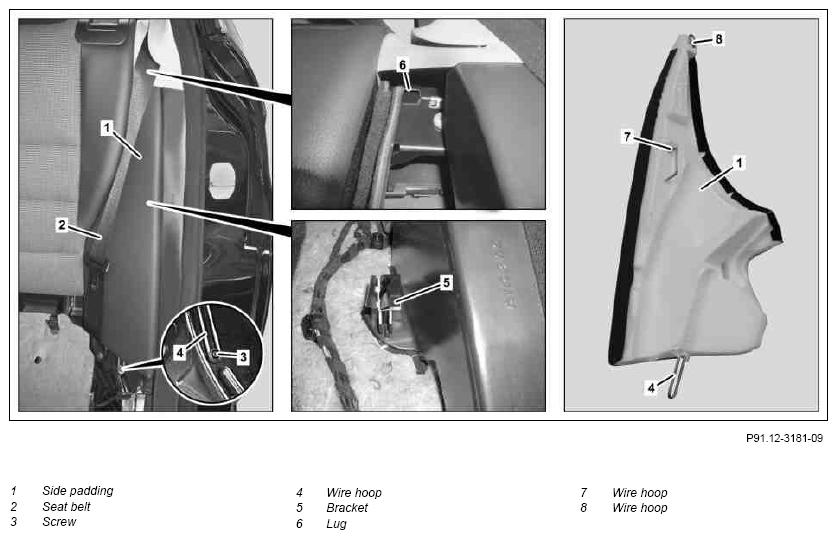

Fig 1: Identifying Rear Seat Backrest Side Padding Remove/Install Components - Shown On Model 204.2

Courtesy of MERCEDES-BENZ USA

Shown on model 204.2 at left side of vehicle

	Remove/install
1	Remove rear seat cushion		AR91.12-P-1020CW
2	Unscrew bolt (3) from wire bracket (4) of left and right side bolsters (1)
3	Pull seat belt (2) to one side
4	Guide wire bracket (7) of side bolster (1) out of bracket (5) at wheel well	Ensure that the wire bracket (7) is seated correctly in the bracket (5).
5	Pull out wire bracket (8) of side bolster (1) downwards out of lug (6) and remove side bolster (1) from vehicle	Ensure that side bolster (1) is correctly seated in the surrounding components.
6	Install in the reverse order
