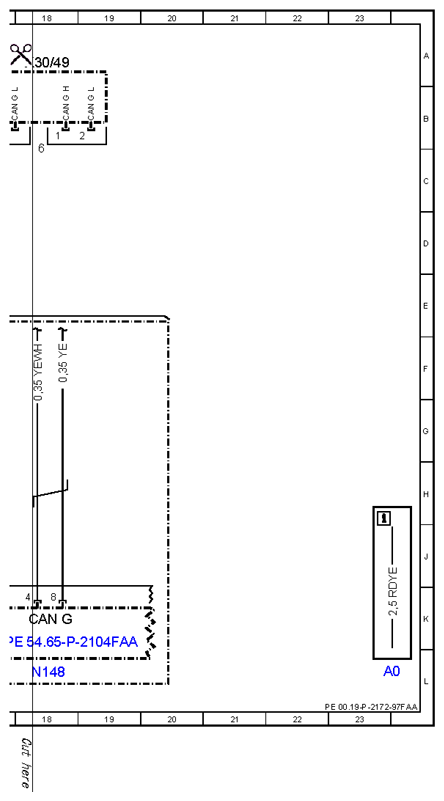

| A0 |
Color code key |
23L |
| B29/4 |
Left rear bumper intelligent radar sensor |
5L |
| B29/5 |
Right rear bumper intelligent radar sensor |
6L |
| B84/3 |
Backup camera |
14L |

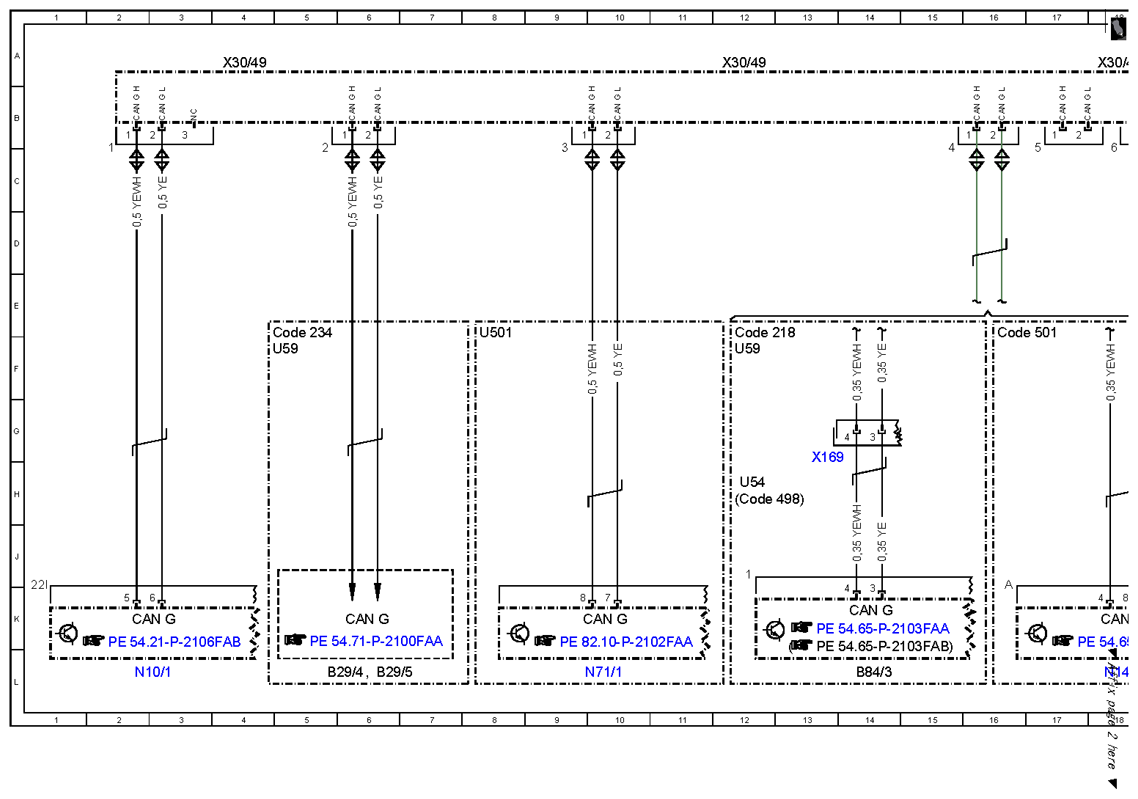

| CAN G |
Front end CAN |
2K |
| CAN G |
Front end CAN |
10K |
| CAN G |
Front end CAN |
6K |
| CAN G |
Front end CAN |
14K |
| CAN G |
Front end CAN |
18K |
| Code 218 |
Backup camera |
12F |
| Code 234 |
Blind spot assist |
4F |
| Code 498 |
Japan version |
12H |
| Code 501 |
360 degree camera |
16F |
| N10/1 |
Front SAM control unit with fuse and relay module |
2L |
| N148 |
360° camera control unit |
18L |
| N71/1 |
Headlamp control unit |
10L |
| U501 |
Valid for xenon headlamps |
8F |
| U54 |
Valid for all except Japan |
12H |
| U59 |
Valid for model 204.9 |
12F |
| U59 |
Valid for model 204.9 |
4F |
| X169 |
Backup camera electrical connector |
13G |
| X30/49 |
Front end CAN potential distributor electrical connector |
4A |
| X30/49 |
Front end CAN potential distributor electrical connector |
12A |
| X30/49 |
Front end CAN potential distributor electrical connector |
18A |
