Check and correct the adjustment of the headlamps - AP82.10-P-8260A

MODEL 124, 129, 140, 202

MODEL 170, 208, 210 except CODE (491) USA version

Model 124

1. a Marking for low beams/high beams
2. c Marking for fog lamps or model 124.036 high beams

Model 129

1. Marking for low beams/high beams

Model 140 (up to approx. 02.94) model 202 (sedan up to approx. 05/96)

1. Marking for low beams
2. Marking for high beams
3. Marking for fog lamps (except coupe)

Model 140 (as of approx. 03.94) model 170, model 202 (sedan as of approx. 06/96 and T-model)

1. Marking for low beams
2. Marking for fog lamps (except coupe model 140 and model 170)
3. Marking for high beams

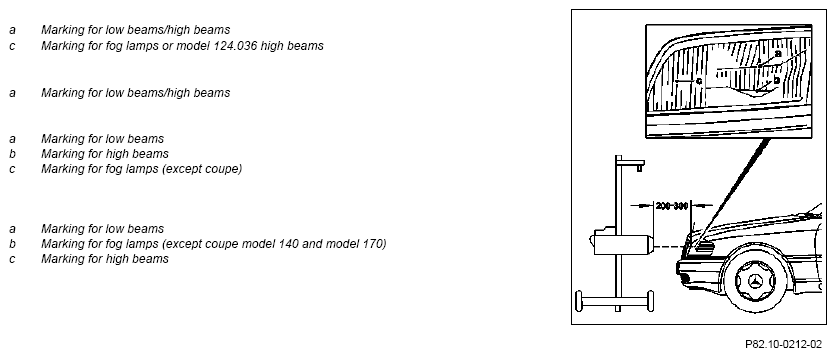

   Fig 1: Adjusting Headlamps

   Courtesy of MERCEDES-BENZ USA

	Check
	Risk of death  caused by high voltage levels present at xenon headlamps. Risk of explosion/fire hazard  due to highly flammable substances in the area of damaged xenon bulbs Risk of injury  due to UV light, hot components on xenon headlamps and glass splinters when xenon bulbs burst Risk of poisoning  caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with skin	Do not come into contact with parts that are under high voltage. Persons with active electronic implants  (e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure sufficient ventilation in the working area.	AS82.10-Z-0001-01A
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
1	Check tire inflation pressure, correct if necessary
2	Park the vehicle on a horizontal, level surface	Vehicle must be in curb condition (curb weight, fuel tank full or corresponding additional weight). The vehicle level must not change when the brakes are applied.
3	One person to occupy the driver seat or load the seat with 75 kg	Except vehicles with code 491 USA version or vehicles with level control or ADS
4	Start engine and run at moderate speed for approx. 30 s	On vehicles with level control or ADS. Move vehicle back and forward in order to adjust the axle setting.
5.1	Align headlamp adjustment testing unit to vehicle and adjust height according to marking in lens	Model 124, 129, 140, 170, 202 Precisely observe operating instructions for headlamp adjustment testing unit. Headlamp aimer gotis://E_82_01.0
5.2	Align headlamp adjustment testing unit to the vehicle and carry out height setting according to middle of the lens	Model 170, 208, 210 Precisely observe operating instructions for headlamp adjustment testing unit. Headlamp aimer gotis://E_82_01.0
6	Run engine and switch on low beam
7.1	Check headlamp range control for proper function	With standard headlamps. Except vehicles with code 491 USA version Both light beams of the headlamps must be evenly adjusted. Headlamp range adjustment inoperative: ↓
	Check air-operated headlamp range adjustment	Model 129	AR82.10-P-4011A
		Model 170, 202, 210	AR82.10-P-4011EA
		Model 124	ra82001244011x
		Model 140	ra820b1404011x
7.2	Check function of headlamp range adjustment through placement of additional weights in the luggage compartment	With xenon headlamps.
		Model 129, 140	dh0103pa00011x
	Electric headlamp range adjustment (HRA) diagnosis, function check	Model 202, 208, 210	AD82.10-P-3000A
8.1	Move switch of headlamp range control into position 0
8.2	Remove additional weights	With xenon headlamps.
9	Check low beams and adjust if necessary	Except vehicles with code 491 USA version	AP82.10-P-8260-01A
		Vehicles with code 491 USA version, model 129, 140, 202 up to approx. 03/96 Due to the common reflector unit on model 140 sedan as of approx. 03.94 and model 202 the low beams, high beams and fog lamps are simultaneously adjusted. Due to the common reflector unit on model 170 the low beams and fog lamps are adjusted simultaneously. Vehicles with code 491 USA version, model 210 and 208, 129, 140, 170, 202 as of approx. 04/96, model 210: ↓ See owner's manual	AP82.10-P-8260-01B
	Modified lamp unit	Model 140	BT82.10-P-9403-01Z
	Location of fog and high beams in lamp unit converted	Model 202 sedan	BT82.10-P-0001-01A
10.1	Check setting of high beam		AP82.10-P-8260-02A
10.2	Check headlamp adjustment	Model 124.036	AP82.10-P-8260-03A
11	Check fog lamps		AP82.10-P-8260-04A
