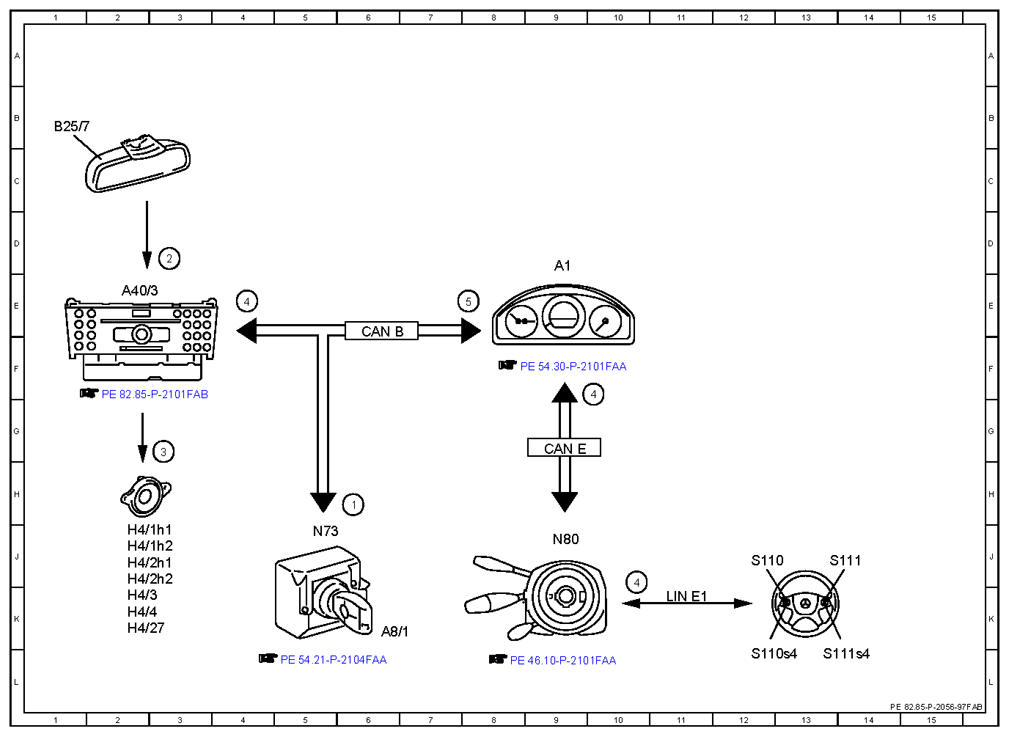

| 1 |
Circuit 15, status |
6H |
| 2 |
Voice input, signal |
3D |
| 3 |
Speaker, actuation |
3G |
| 4 |
Multifunction steering wheel button group, signal |
4E |
| 4 |
Multifunction steering wheel button group, signal |
10J |
| 4 |
Multifunction steering wheel button group, signal |
10F |
| 5 |
Instrument cluster, message |
8E |
| A1 |
Instrument cluster |
9D |
| A40/3 |
COMAND control unit |
2E |
| A8/1 |
Transmitter key |
6K |
| B25/7 |
Voice control system microphone |
1B |
| CAN B |
Interior CAN |
|
| CAN E |
Chassis CAN |
|
| H4/1h1 |
Left front door tweeter |
2J |
| H4/1h2 |
Left front door bass speaker |
2J |
| H4/27 |
Center instrument panel speaker |
2K |
| H4/2h1 |
Right front door tweeter |
2J |
| H4/2h2 |
Right front door bass speaker |
2J |
| H4/3 |
Left rear door speaker |
2K |
| H4/4 |
Right rear door speaker |
2K |
| LIN E1 |
Steering LIN |
|
| N73 |
Electronic ignition switch control unit |
5J |
| N80 |
Steering column module control unit |
9J |
| S110 |
Left multifunction steering wheel button group |
12J |
| S110s4 |
"Back" and voice control system OFF button |
12L |
| S111 |
Right multifunction steering wheel button group |
13J |
| S111s4 |
Voice control system ON button |
13L |
