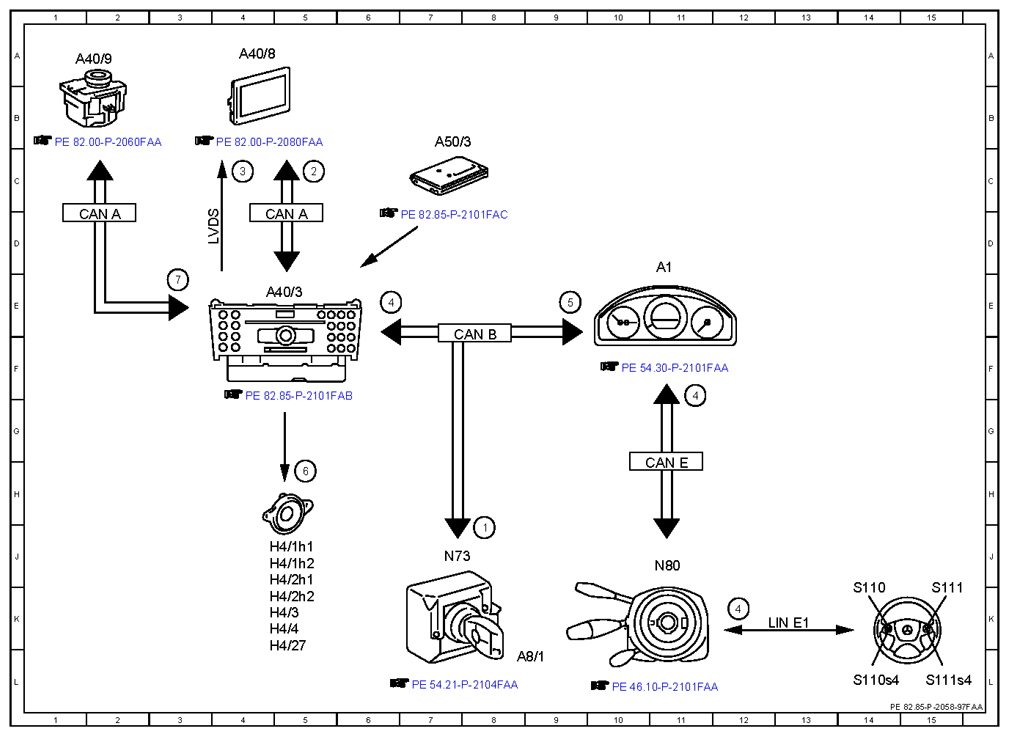

| 1 |
Circuit 15, status |
8J |
| 2 |
Switch-on request, signal |
5C |
| 3 |
Audio/COMAND display, signal |
4C |
| 4 |
Multifunction steering wheel button group, signal |
6E |
| 4 |
Multifunction steering wheel button group, signal |
12K |
| 4 |
Multifunction steering wheel button group, signal |
11G |
| 5 |
Instrument cluster, message |
9E |
| 6 |
Speaker, actuation |
5H |
| 7 |
Audio/COMAND controller, request |
3E |
| A1 |
Instrument cluster |
11D |
| A40/3 |
COMAND control unit |
4E |
| A40/8 |
Audio/COMAND display |
4A |
| A40/9 |
Audio/COMAND control panel |
1A |
| A50/3 |
Electronic Toll Collection control unit |
7B |
| A8/1 |
Transmitter key |
8L |
| CAN A |
Telematics CAN |
|
| CAN A |
Telematics CAN |
|
| CAN B |
Interior CAN |
|
| CAN E |
Chassis CAN |
|
| H4/1h1 |
Left front door tweeter |
4J |
| H4/1h2 |
Left front door bass speaker |
4J |
| H4/27 |
Center instrument panel speaker |
4L |
| H4/2h1 |
Right front door tweeter |
4J |
| H4/2h2 |
Right front door bass speaker |
4K |
| H4/3 |
Left rear door speaker |
4K |
| H4/4 |
Right rear door speaker |
4K |
| LIN E1 |
Steering LIN |
|
| N73 |
Electronic ignition switch control unit |
7J |
| N80 |
Steering column module control unit |
11J |
| S110 |
Left multifunction steering wheel button group |
14K |
| S110s4 |
"Back" and voice control system OFF button |
14L |
| S111 |
Right multifunction steering wheel button group |
15K |
| S111s4 |
Voice control system ON button |
15L |
