Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram - PE82.85-P-2101-97FAF

Code: Designation: Position:
A0 Color code key 32L
A2/37 VICS control unit 17L
A2/94 ETC/DSRC antenna 12L
A28/11 Multifunction antenna 19L
A28/11x1 Multifunction antenna electrical connector 19H
A40/3 COMAND control unit 12A
A40/3 COMAND control unit 20A
A40/3 COMAND control unit 26A
A50/3 Electronic Toll Collection control unit 10L
A50/6 Dedicated Short-Range Communications control unit 10L
Code 218 Backup camera 24H
Code 218 Backup camera 24G
Code 501 360 degree camera 24J
Code 518 Media Interface 20G
F34/5 Electronic Toll Collection preinstallation electrical fuse 6L
N10/1 Front SAM control unit with fuse and relay module 3L
N10/1f21 Fuse 21 2L
U12 Valid for left-hand drive vehicles 13H
U13 Valid for right-hand drive vehicles 13H
U135 Valid for Electronic Toll Collection 1D
U136 Valid for Vehicle Information and Communication System (VICS) 15D
U57 Valid for model 204.2 24G
U58 Valid for model 204.0 24H
U59 Valid for model 204.9 24J
U59 Valid for model 204.9 24J
U59 Valid for model 204.9 24H
U60 Valid for model 204.3 24H
W15/5 Left front footwell ground point 14L
W15/7 Right front footwell ground point 14L
X137/1 VICS and Electronic Toll Collection power supply electrical connector 15H
X137/1 VICS and Electronic Toll Collection power supply electrical connector 8H

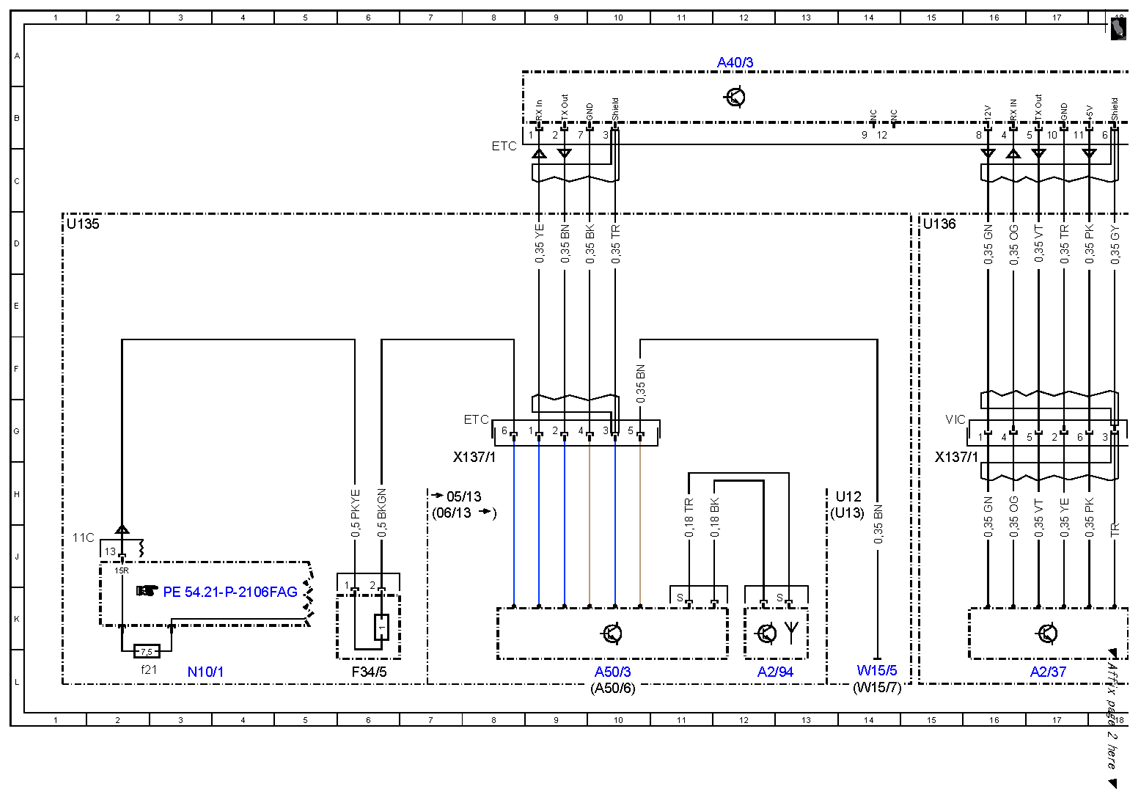

Fig 1: Cockpit Management And Data System Control Unit - Wiring Diagram (1 Of 2)
G10080926Courtesy of MERCEDES-BENZ USA

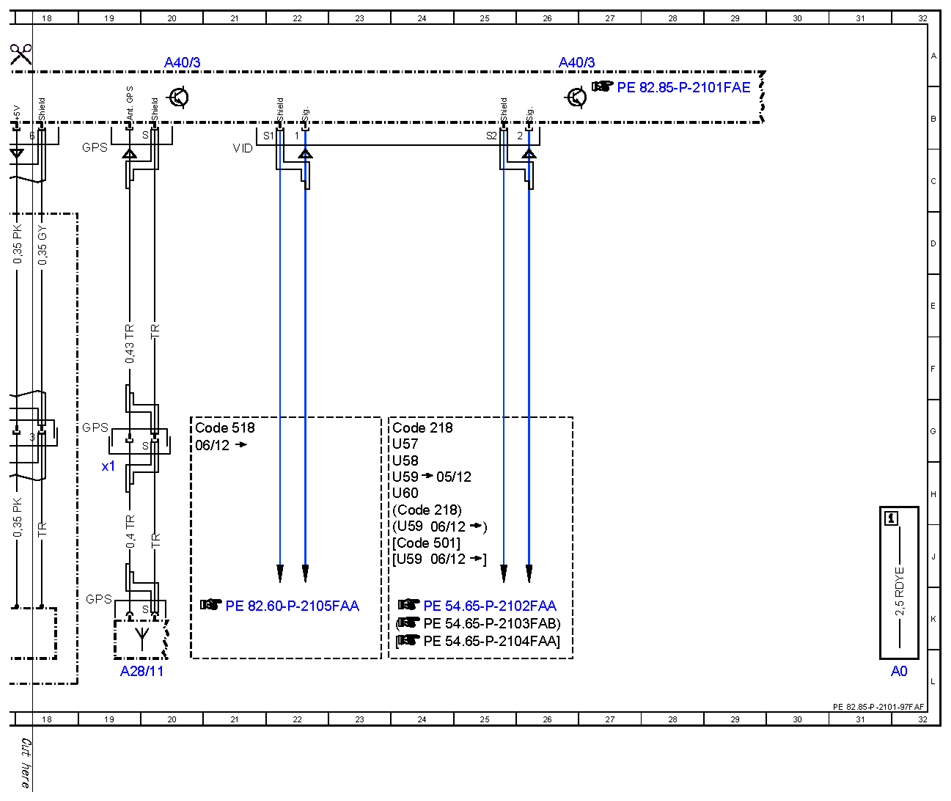

Fig 2: Cockpit Management And Data System Control Unit - Wiring Diagram (2 Of 2)
G10080927Courtesy of MERCEDES-BENZ USA
