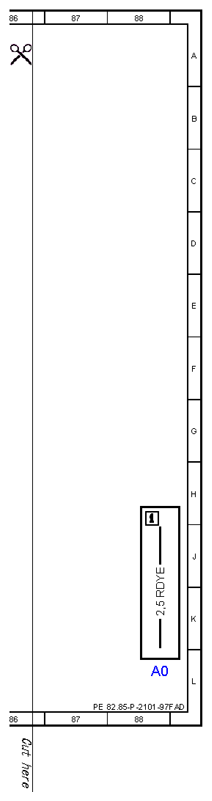

| A0 |
Color code key |
88L |

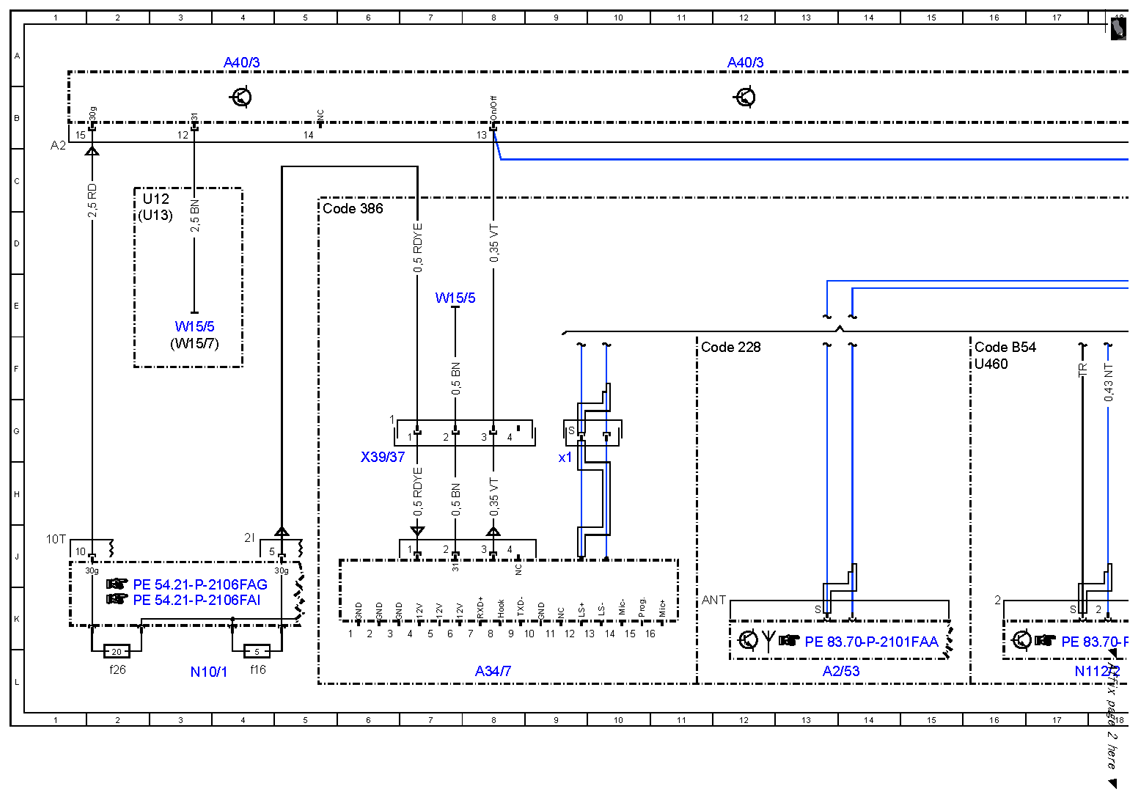

| A2/53 |
Mobile phone and stationary heater radio remote control antenna splitter |
13L |

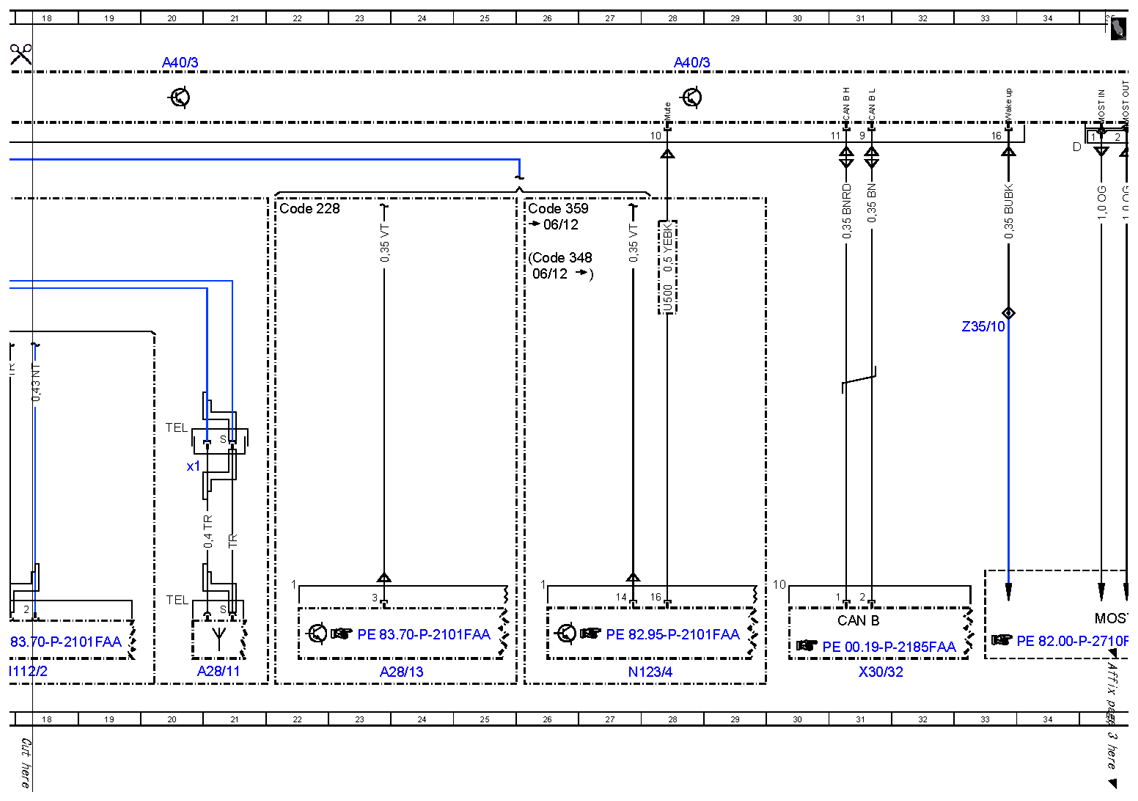

| A28/11 |
Multifunction antenna |
21L |
| A28/11x1 |
Multifunction antenna electrical connector |
20H |
| A28/13 |
Compensator/cellular telephone system UMTS |
24L |
| A34/7 |
Bluetooth module |
8L |
| A34/7x1 |
Bluetooth® module electrical connector 1 |
9H |
| A40/3 |
COMAND control unit |
4A |
| A40/3 |
COMAND control unit |
12A |
| A40/3 |
COMAND control unit |
20A |
| A40/3 |
COMAND control unit |
28A |
| A40/3 |
COMAND control unit |
37A |
| A40/3 |
COMAND control unit |
53A |
| A40/3 |
COMAND control unit |
61A |
| A40/3 |
COMAND control unit |
77A |
| A40/3 |
COMAND control unit |
82A |
| A40/3 |
COMAND control unit |
70A |
| A40/3 |
COMAND control unit |
44A |
| A40/8 |
Audio/COMAND display |
72L |
| A40/8 |
Audio/COMAND display |
68L |

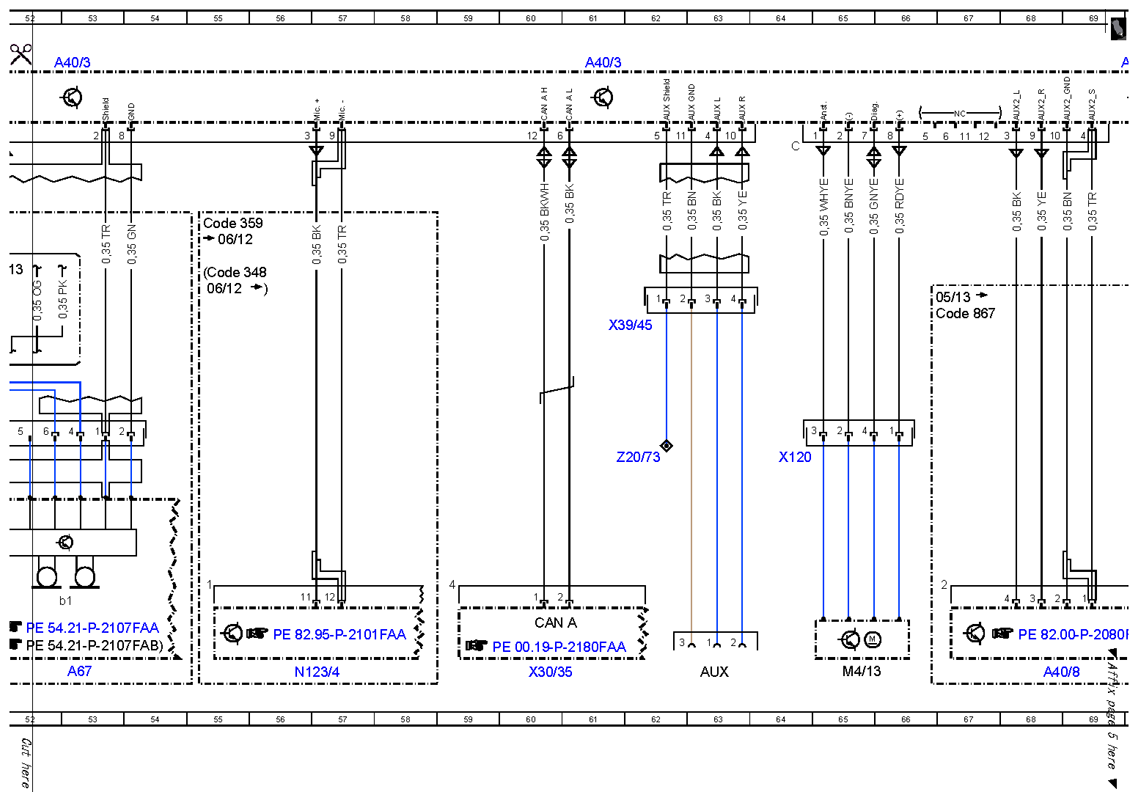

| A67 |
Inside rearview mirror |
53L |
| A67b1 |
Hands-free system microphone |
52K |
| A67x1 |
Inside rearview mirror unit electrical connector |
51H |
| CAN A |
Telematics CAN |
60K |
| CAN B |
Interior CAN |
31K |
| Code 228 |
Stationary heater |
22D |
| Code 228 |
Stationary heater |
11F |
| Code 255 |
AMG Performance Media |
75E |
| Code 348 |
Emergency call/assistance system |
55E |
| Code 348 |
Emergency call/assistance system |
26D |
| Code 359 |
TELEAID emergency call system |
55D |
| Code 359 |
TELEAID emergency call system |
26D |
| Code 386 |
Mobile phone |
5D |
| Code 867 |
SPLITVIEW |
66E |
| Code 990 |
Mercedes-Benz AMG vehicles |
75E |
| Code B54 |
COM module |
16F |

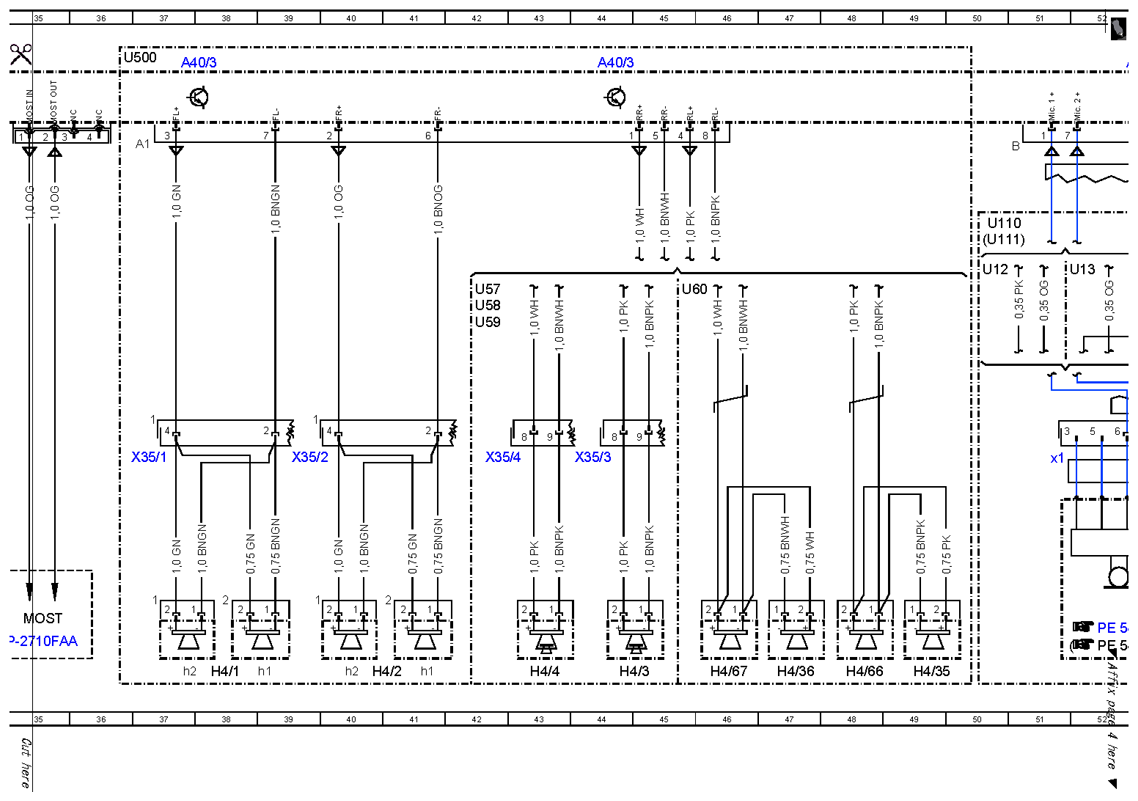

| H4/1 |
Left front door speaker |
38L |
| H4/1h1 |
Left front door tweeter |
39L |
| H4/1h2 |
Left front door bass speaker |
37L |
| H4/2 |
Right front door speaker |
40L |
| H4/2h1 |
Right front door tweeter |
41L |
| H4/2h2 |
Right front door bass speaker |
40L |
| H4/3 |
Left rear door speaker |
44L |
| H4/35 |
Left rear tweeter |
49L |
| H4/36 |
Right rear tweeter |
47L |
| H4/4 |
Right rear door speaker |
43L |
| H4/66 |
Left rear bass speaker |
48L |
| H4/67 |
Right rear bass speaker |
46L |
| M4/13 |
COMAND fan motor |
65L |
| MOST |
Media Oriented System Transport |
35K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f16 |
Fuse 16 |
4L |
| N10/1f26 |
Fuse 26 |
2L |
| N112/2 |
Telematics services communication module |
17L |
| N123/4 |
Emergency call system control unit |
27L |
| N123/4 |
Emergency call system control unit |
56L |

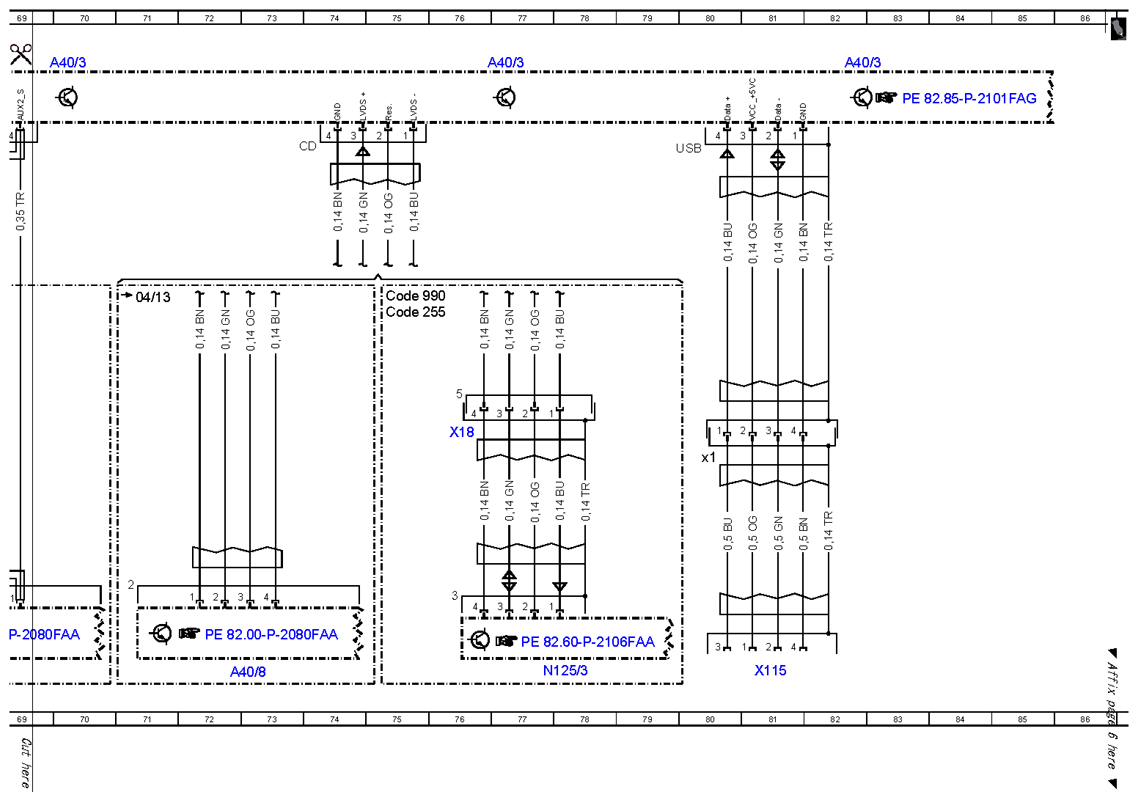

| N125/3 |
AMG Performance Media control unit |
78L |
| U110 |
Valid for overhead control panel with CAN |
50D |
| U111 |
Valid for overhead control panel without CAN |
50D |
| U12 |
Valid for left-hand drive vehicles |
2C |
| U12 |
Valid for left-hand drive vehicles |
50E |
| U13 |
Valid for right-hand drive vehicles |
2D |
| U13 |
Valid for right-hand drive vehicles |
51E |
| U460 |
Valid for telematic services communication module |
16F |
| U500 |
Not valid for sound system |
28E |
| U500 |
Not valid for sound system |
36A |
| U57 |
Valid for model 204.2 |
42E |
| U58 |
Valid for model 204.0 |
42E |
| U59 |
Valid for model 204.9 |
42E |
| U60 |
Valid for model 204.3 |
45E |
| W15/5 |
Left front footwell ground point |
3E |
| W15/5 |
Left front footwell ground point |
7E |
| W15/7 |
Right front footwell ground point |
3F |
| X115 |
USB electrical connector |
81L |
| X115x1 |
USB electrical connector connecting point |
80H |
| X120 |
Radio fan electrical connector |
64H |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
76G |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
31L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
60L |
| X35/1 |
Left front door electrical connector |
37H |
| X35/2 |
Right front door electrical connector |
39H |
| X35/3 |
Left rear door electrical connector |
44H |
| X35/4 |
Right rear door electrical connector |
42H |
| X39/37 |
Mobile phone electrical connector |
6H |
| X39/45 |
AUX jack electrical connector |
62E |
| Z20/73 |
Tracer wire connector sleeve |
62G |
| Z35/10 |
MOST wake-up signal connector sleeve |
33E |
