| A0 |
Color code key |
64L |
| A40/3 |
COMAND control unit |
25L |
| A40/3 |
COMAND control unit |
39L |
| Code 498 |
Japan version |
23H |
| Code 498 |
Japan version |
37G |
| MOST |
Media Oriented System Transport |
9K |
| MOST |
Media Oriented System Transport |
35K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
5L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
31L |
| N10/2f81 |
Fuse 81 |
4L |
| N10/2f81 |
Fuse 81 |
31L |

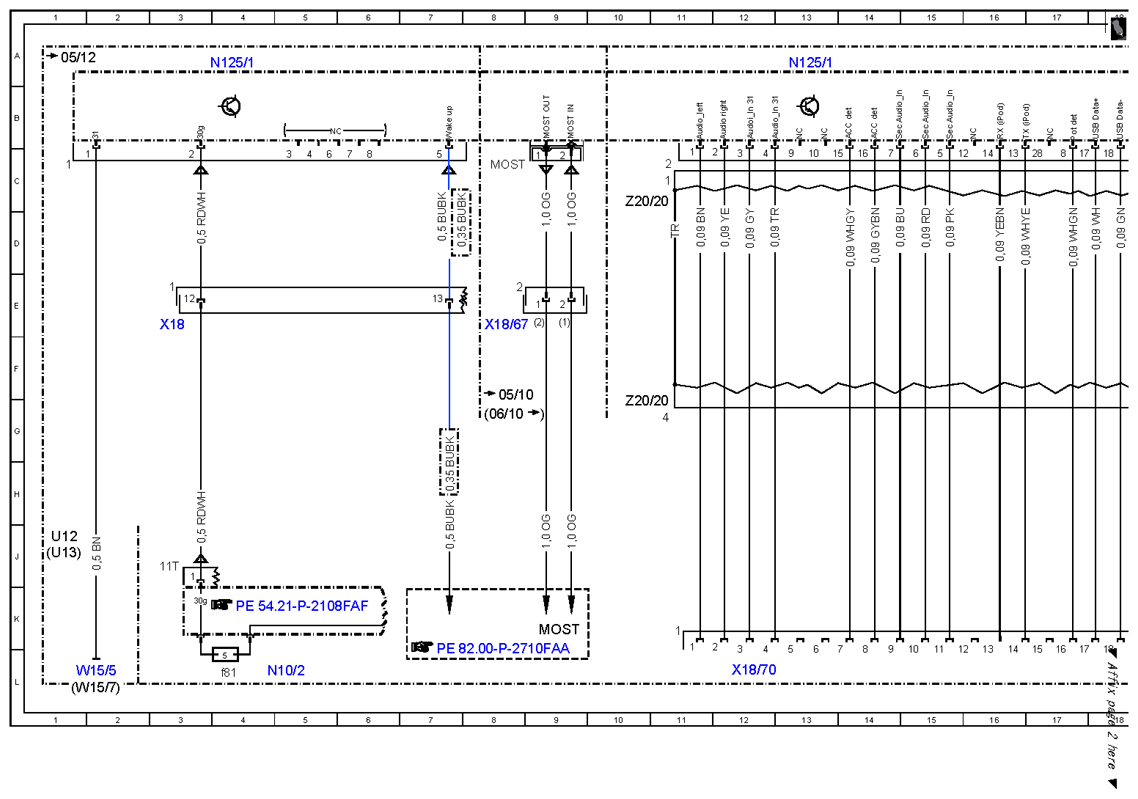

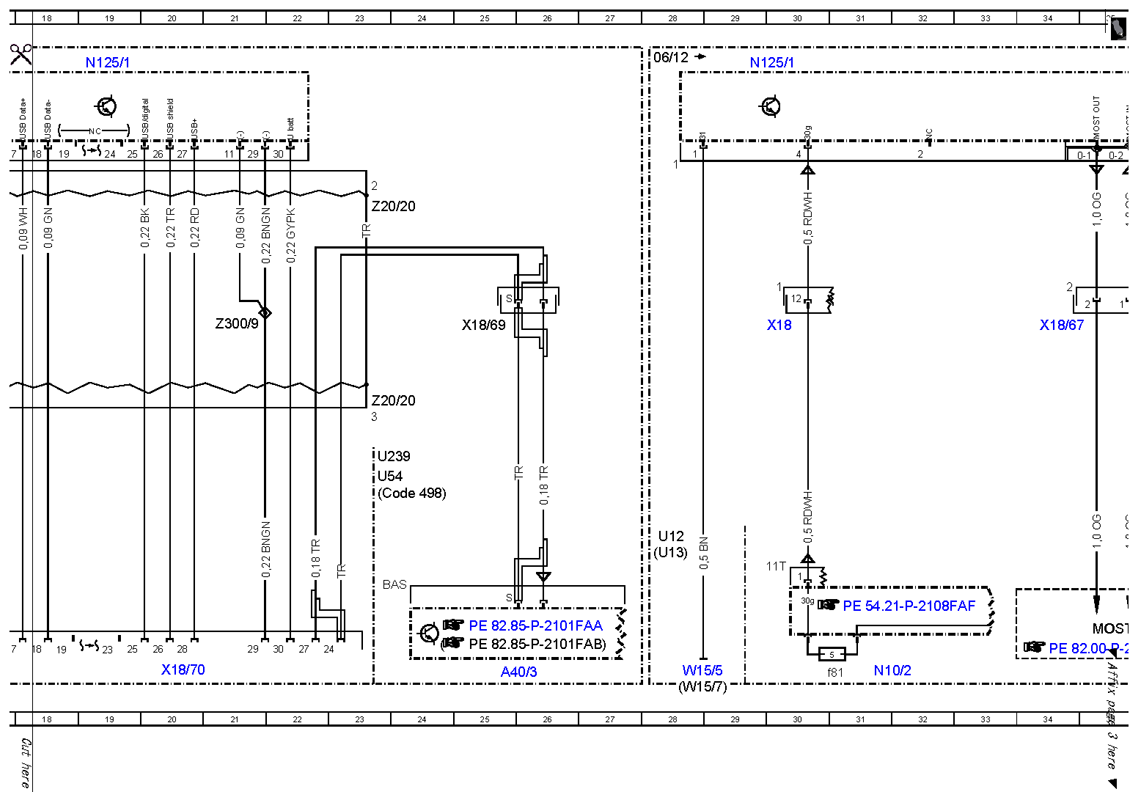

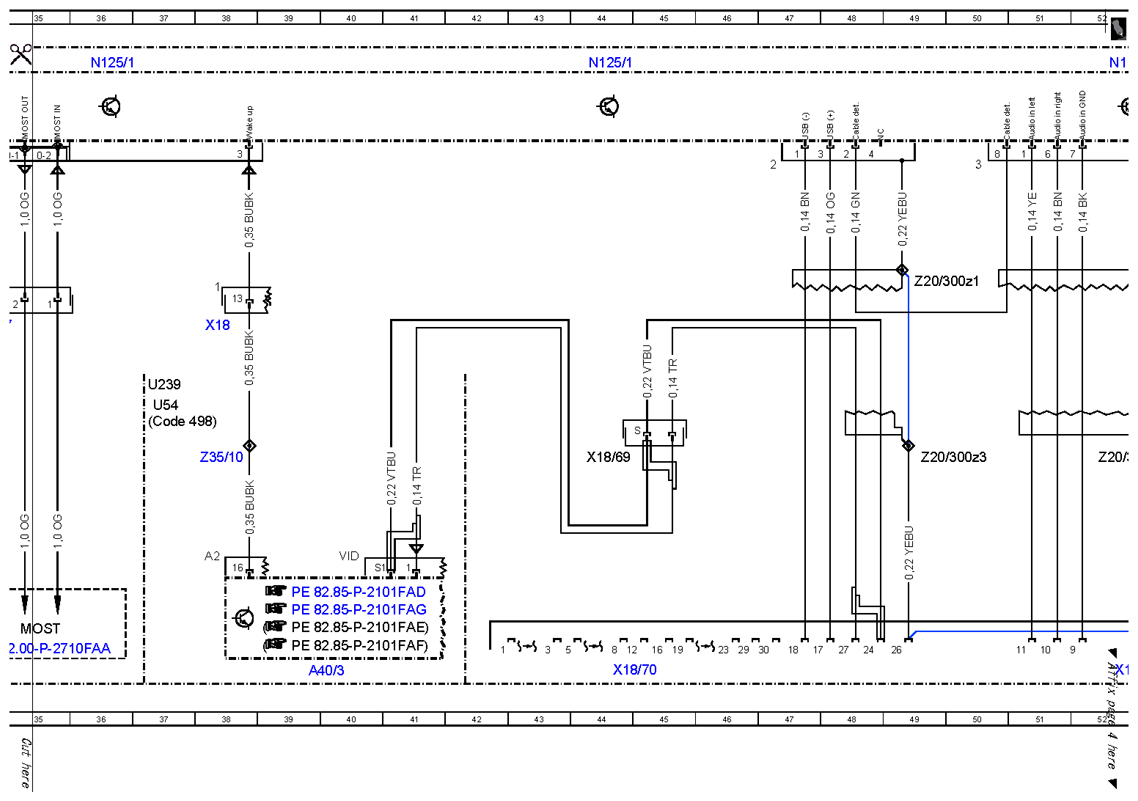

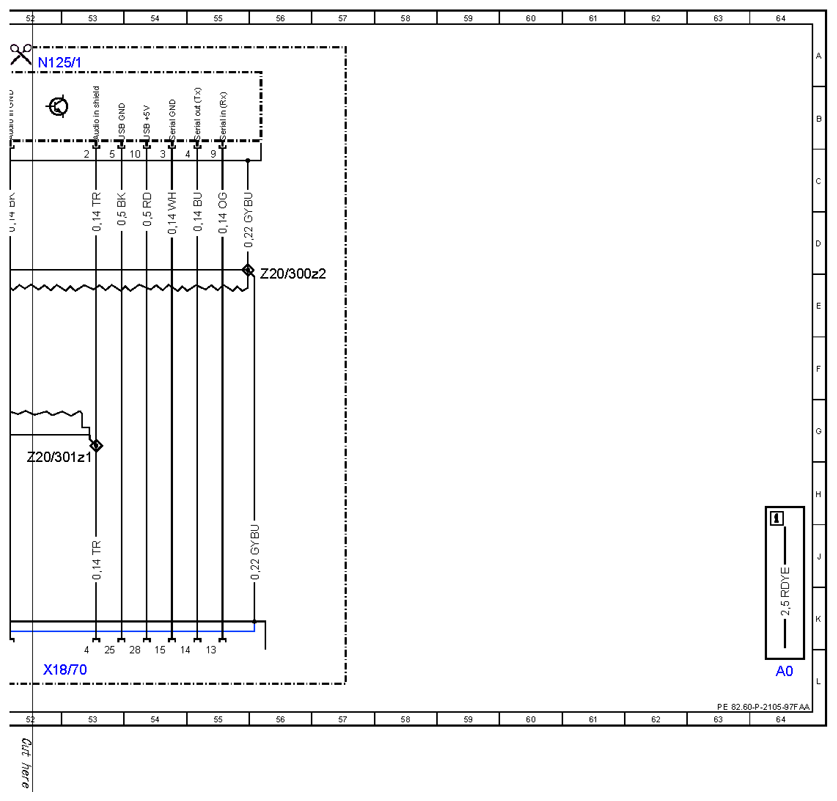

| N125/1 |
Media interface control unit |
4A |
| N125/1 |
Media interface control unit |
13A |
| N125/1 |
Media interface control unit |
19A |
| N125/1 |
Media interface control unit |
29A |
| N125/1 |
Media interface control unit |
36A |
| N125/1 |
Media interface control unit |
44A |
| N125/1 |
Media interface control unit |
52A |
| U12 |
Valid for left-hand drive vehicles |
1J |
| U12 |
Valid for left-hand drive vehicles |
28J |
| U13 |
Valid for right-hand drive vehicles |
1J |
| U13 |
Valid for right-hand drive vehicles |
28J |
| U239 |
Valid for media interface with video |
23G |
| U239 |
Valid for media interface with video |
37F |
| U54 |
Valid for all except Japan |
23H |
| U54 |
Valid for all except Japan |
37G |
| W15/5 |
Left front footwell ground point |
2L |
| W15/5 |
Left front footwell ground point |
28L |
| W15/7 |
Right front footwell ground point |
1L |
| W15/7 |
Right front footwell ground point |
28L |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
3E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
30E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
38E |
| X18/67 |
Media interface electrical connector |
8E |
| X18/67 |
Media interface electrical connector |
34E |
| X18/69 |
Video media interface electrical connector |
25E |
| X18/69 |
Video media interface electrical connector |
44H |
| X18/70 |
Media interface electrical connector |
12L |
| X18/70 |
Media interface electrical connector |
20L |
| X18/70 |
Media interface electrical connector |
45L |
| X18/70 |
Media interface electrical connector |
53L |
| Z20/20 |
Media Interface shielding |
10G |
| Z20/20 |
Media Interface shielding |
23G |
| Z20/20 |
Media Interface shielding |
10C |
| Z20/20 |
Media Interface shielding |
23C |
| Z20/300z1 |
Shielding connector sleeve |
49E |
| Z20/300z2 |
Shielding connector sleeve |
56E |
| Z20/300z3 |
Shielding connector sleeve |
49G |
| Z20/301z1 |
Shielding connector sleeve |
52G |
| Z300/9 |
Media Interface ground connection connector sleeve |
21E |
| Z35/10 |
MOST wake-up signal connector sleeve |
38G |
