Wiring diagram for DVD player control unit - PE82.60-P-2104-97FAA

Code:	Designation:	Position:
A0	Color code key	48L
A40/3	COMAND control unit	11L
A40/3	COMAND control unit	16L
A40/3	COMAND control unit	41L
A40/4	DVD player	4A
A40/4	DVD player	11A
A40/4	DVD player	20A
A40/4	DVD player	28A
A40/4	DVD player	37A
A40/4	DVD player	41A
A40/5	Left rear display	23L
A40/6	Right rear display	35L
CAN A	Telematics CAN	7K
Code 498	Japan version	9F
Code 498	Japan version	13F
N10/2	Rear SAM control unit with fuse and relay module	3L
N10/2f86	Fuse 86	2L
U54	Valid for all except Japan	9E
U54	Valid for all except Japan	14E
U54	Valid for all except Japan	39F
W19	Right front seat crossmember ground point	3E
W19	Right front seat crossmember ground point	25E
W19	Right front seat crossmember ground point	34E
X30/35	Telematics CAN voltage distributor electrical connector	7L
X30/35	Telematics CAN voltage distributor electrical connector	30L
X55/3	Driver seat connector block	24G
X55/3	Driver seat connector block	19G
X55/4	Front passenger seat connector block	32G
X55/4	Front passenger seat connector block	35G
Z5	Connector sleeve in wiring harness	23G
Z53/29	Rear entertainment system circuit 30 connector sleeve	2G
Z53/29	Rear entertainment system circuit 30 connector sleeve	33E

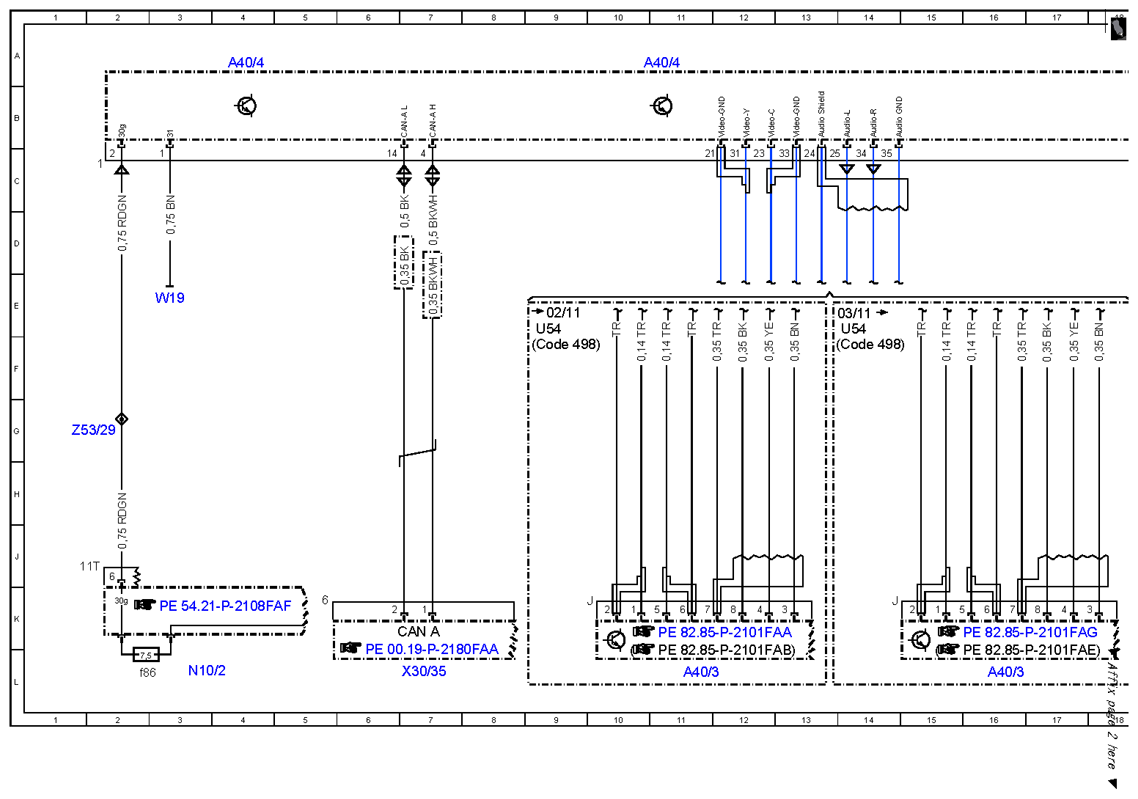

Fig 1: DVD Player Control Unit - Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

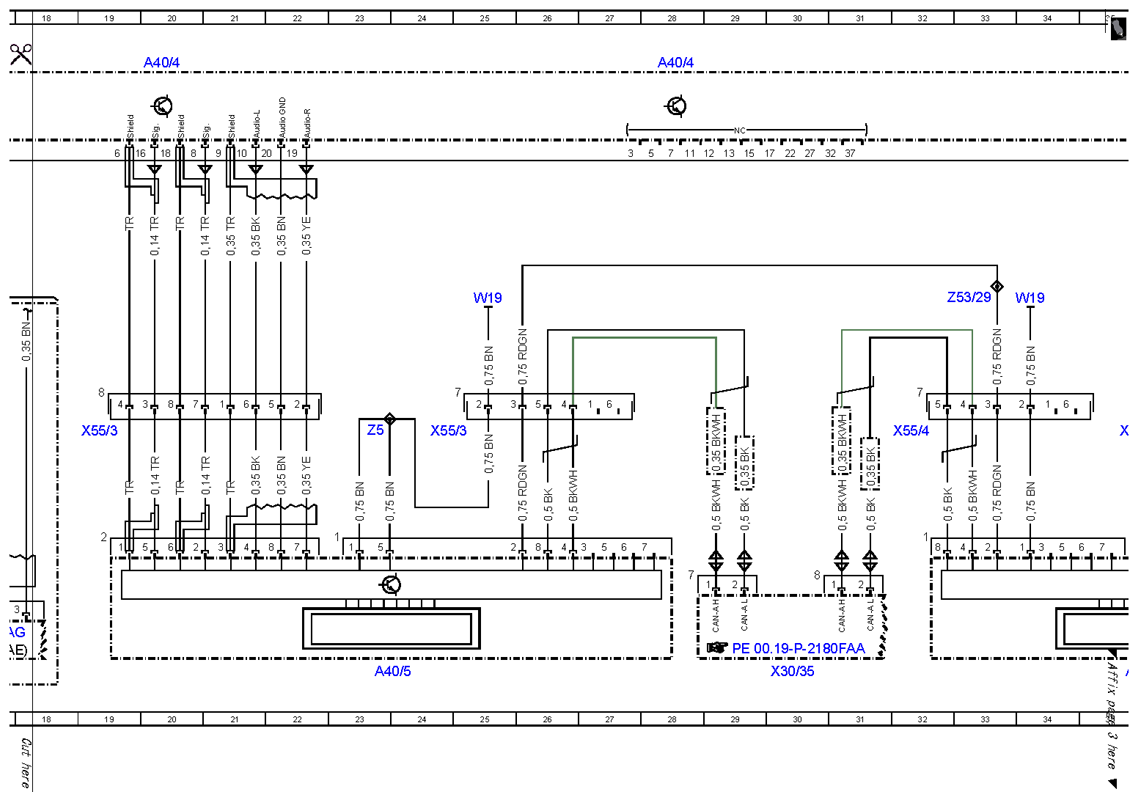

Fig 2: DVD Player Control Unit - Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

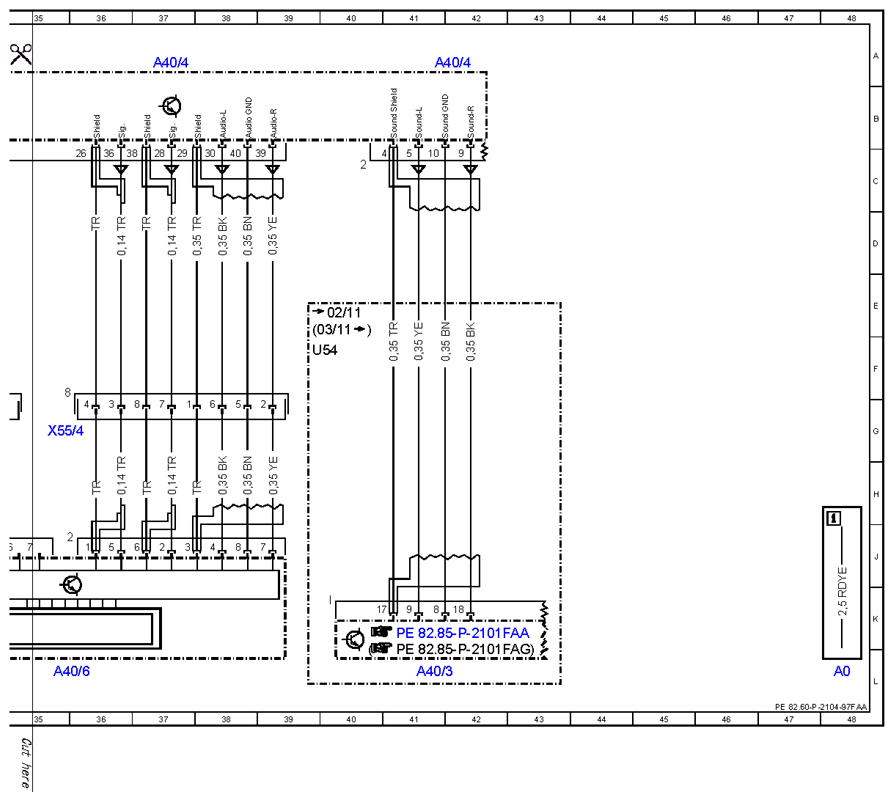

Fig 3: DVD Player Control Unit - Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
