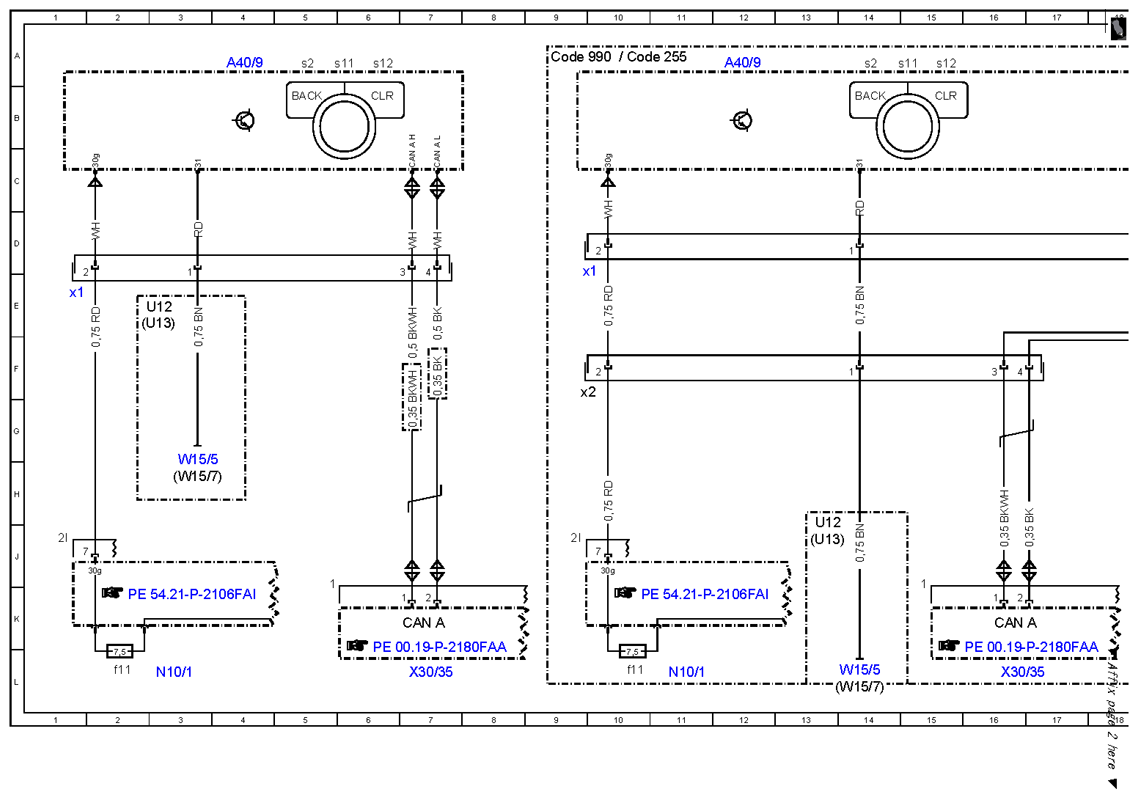

| A0 |
Color code key |
23L |
| A40/9 |
Audio/COMAND control panel |
4A |
| A40/9 |
Audio/COMAND control panel |
12A |
| A40/9 |
Audio/COMAND control panel |
19A |
| A40/9s11 |
Audio/COMAND controller |
6A |
| A40/9s11 |
Audio/COMAND controller |
15A |
| A40/9s12 |
"Delete" button |
6A |
| A40/9s12 |
"Delete" button |
15A |
| A40/9s2 |
"Back" button |
5A |
| A40/9s2 |
"Back" button |
14A |
| A40/9x1 |
Audio/COMAND control panel electrical connector |
1E |
| A40/9x1 |
Audio/COMAND control panel electrical connector |
10E |
| A40/9x2 |
Audio/COMAND control panel electrical connector 2 |
10F |
| CAN A |
Telematics CAN |
7K |
| CAN A |
Telematics CAN |
16K |
| Code 255 |
AMG Performance Media |
10A |
| Code 990 |
Mercedes-Benz AMG vehicles |
9A |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1 |
Front SAM control unit with fuse and relay module |
11L |
| N10/1f11 |
Fuse 11 |
2L |
| N10/1f11 |
Fuse 11 |
10L |

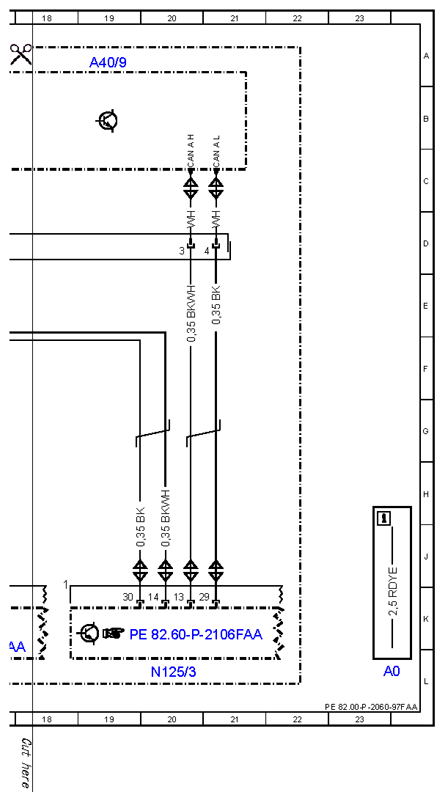

| N125/3 |
AMG Performance Media control unit |
20L |
| U12 |
Valid for left-hand drive vehicles |
2E |
| U12 |
Valid for left-hand drive vehicles |
13J |
| U13 |
Valid for right-hand drive vehicles |
2E |
| U13 |
Valid for right-hand drive vehicles |
13J |
| W15/5 |
Left front footwell ground point |
3H |
| W15/5 |
Left front footwell ground point |
14L |
| W15/7 |
Right front footwell ground point |
3H |
| W15/7 |
Right front footwell ground point |
14L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
7L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
16L |
