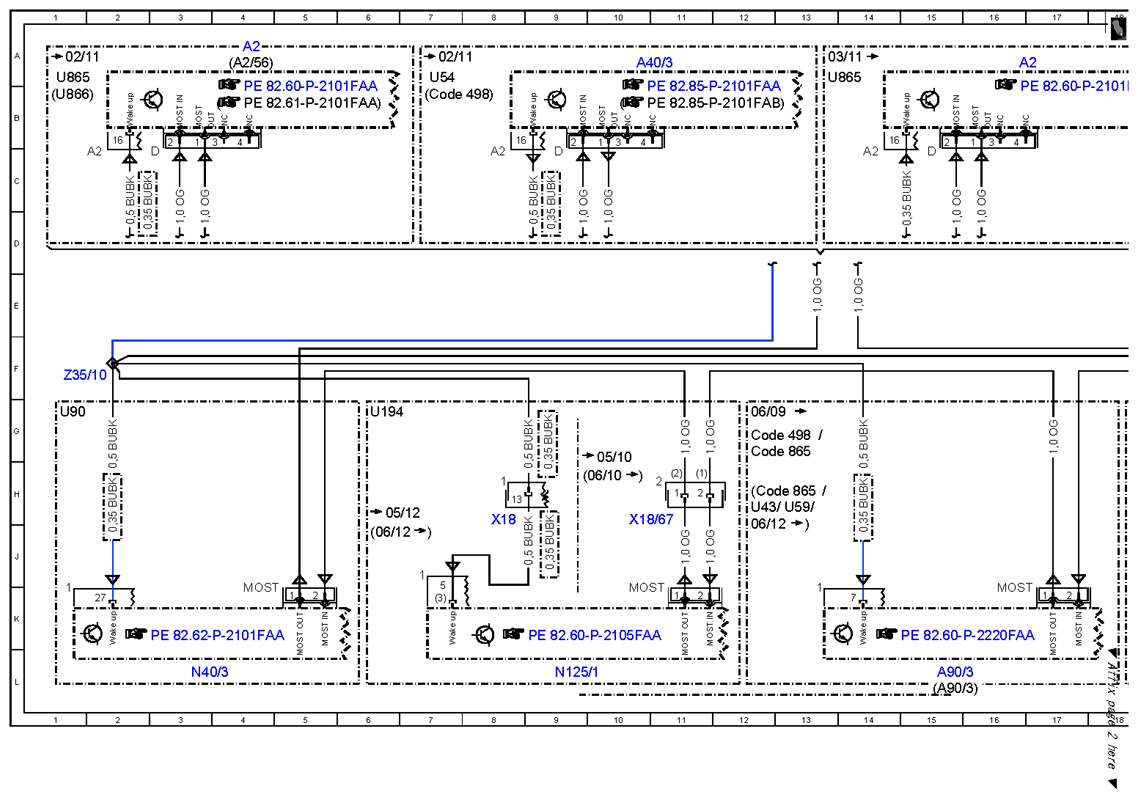

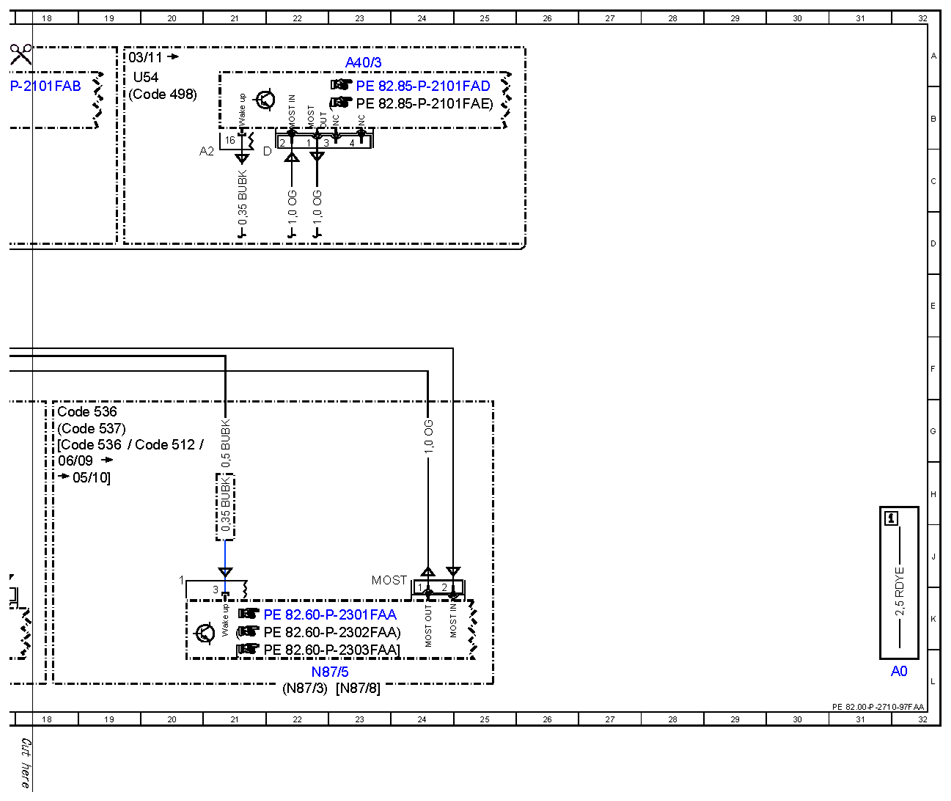

| A0 |
Color code key |
32L |
| A2 |
Radio |
16A |
| A2 |
Radio |
4A |
| A2/56 |
Radio with auto pilot system |
4A |
| A40/3 |
COMAND control unit |
10A |
| A40/3 |
COMAND control unit |
23A |
| A90/3 |
TV digital tuner |
15L |
| A90/3 |
TV digital tuner |
15L |
| Code 498 |
Japan version |
12G |
| Code 498 |
Japan version |
7B |
| Code 498 |
Japan version |
19B |
| Code 512 |
COMAND APS with DVD changer |
19G |
| Code 536 |
SIRIUS satellite radio |
18G |
| Code 536 |
SIRIUS satellite radio |
18G |
| Code 537 |
Digital radio |
18G |
| Code 865 |
TV tuner (digital) |
12H |
| Code 865 |
TV tuner (digital) |
12G |
| N125/1 |
Media interface control unit |
9L |
| N40/3 |
Sound system amplifier control unit |
3L |
| N87/3 |
Digital Audio Broadcasting control unit |
22L |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
22L |
| N87/8 |
SDAR control unit/high definition tuner |
23L |
| U194 |
Valid for AUX jack |
6G |
| U43 |
Valid for ECE |
12H |
| U54 |
Valid for all except Japan |
7A |
| U54 |
Valid for all except Japan |
19A |
| U59 |
Valid for model 204.9 |
13H |
| U865 |
Valid for Audio 20 |
1A |
| U865 |
Valid for Audio 20 |
13A |
| U866 |
Valid for Audio 50 |
1B |
| U90 |
Valid for sound system |
1G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
8H |
| X18/67 |
Media interface electrical connector |
11H |
| Z35/10 |
MOST wake-up signal connector sleeve |
1F |
