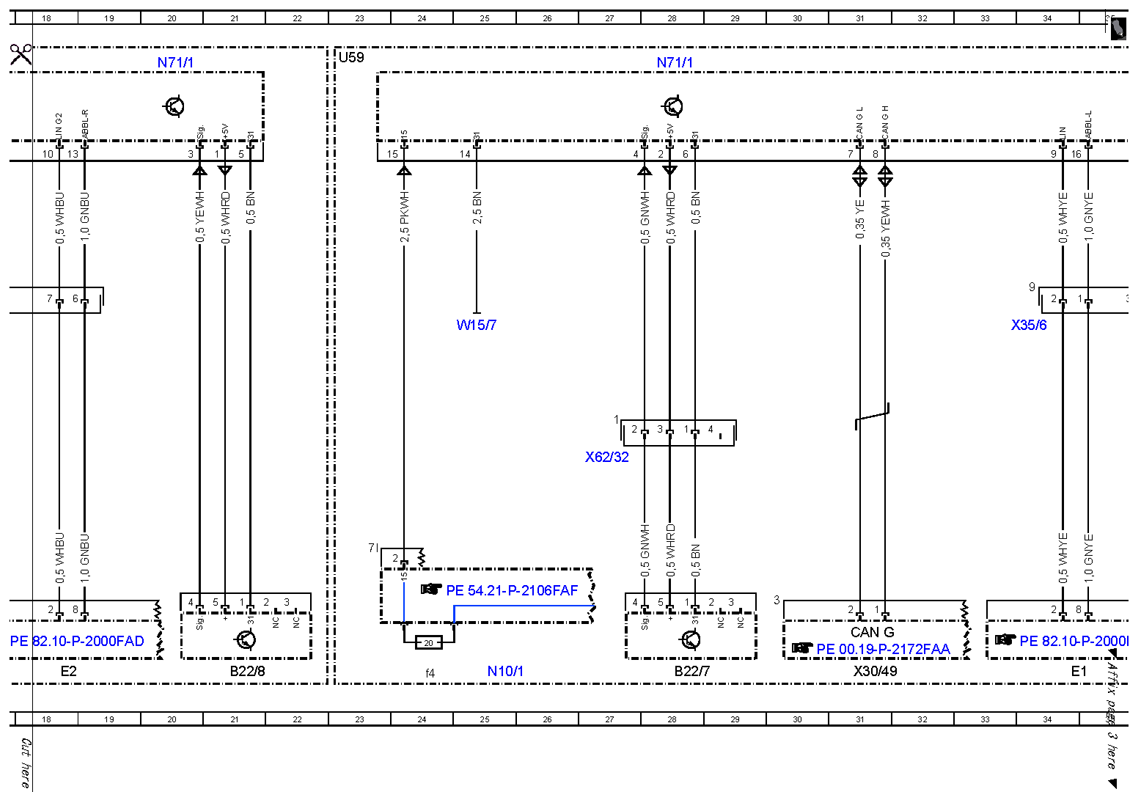

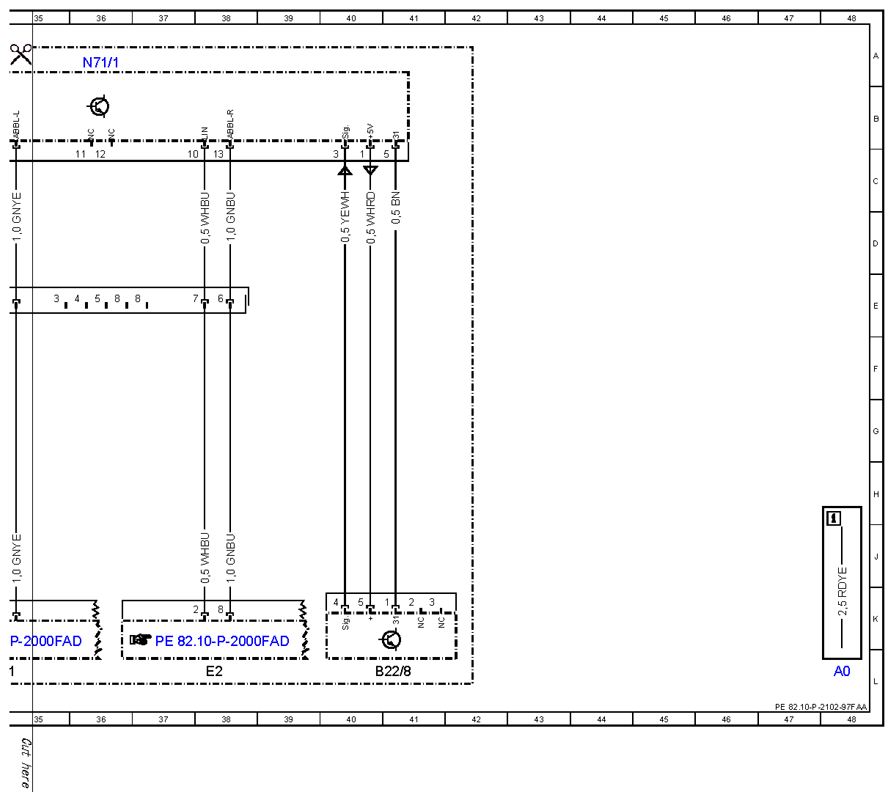

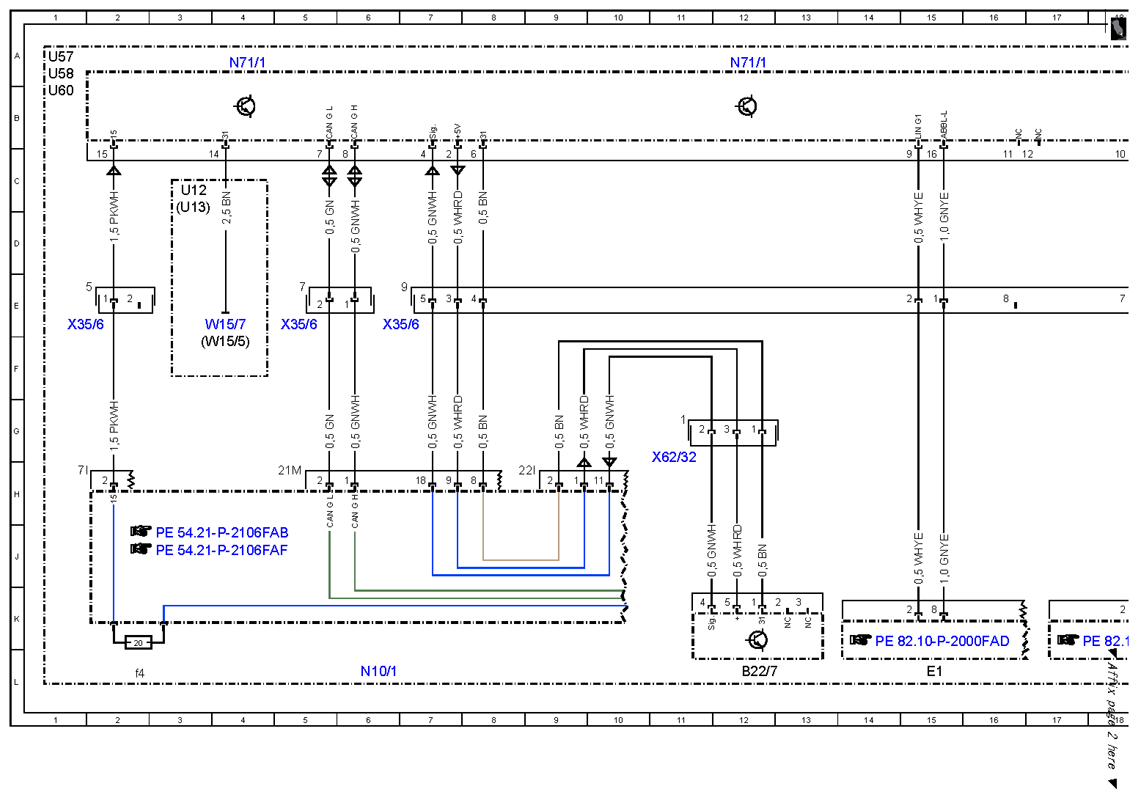

| A0 |
Color code key |
48L |
| B22/7 |
Left rear level sensor |
12L |
| B22/7 |
Left rear level sensor |
28L |
| B22/8 |
Left front level sensor |
21L |
| B22/8 |
Left front level sensor |
41L |
| CAN G |
Front end CAN |
31K |
| E1 |
Left front lamp unit |
15L |
| E1 |
Left front lamp unit |
34L |
| E2 |
Right front lamp unit |
18L |
| E2 |
Right front lamp unit |
38L |
| LIN G1 |
Left headlamp LIN |
15B |
| LIN G2 |
Right headlamp LIN |
18B |
| N10/1 |
Front SAM control unit with fuse and relay module |
6L |
| N10/1 |
Front SAM control unit with fuse and relay module |
25L |
| N10/1f4 |
Fuse 4 |
2L |
| N10/1f4 |
Fuse 4 |
24L |
| N71/1 |
Headlamp control unit |
4A |
| N71/1 |
Headlamp control unit |
12A |
| N71/1 |
Headlamp control unit |
20A |
| N71/1 |
Headlamp control unit |
28A |
| N71/1 |
Headlamp control unit |
36A |
| U12 |
Valid for left-hand drive vehicles |
3C |
| U13 |
Valid for right-hand drive vehicles |
3D |
| U57 |
Valid for model 204.2 |
1A |
| U58 |
Valid for model 204.0 |
1A |
| U59 |
Valid for model 204.9 |
23A |
| U60 |
Valid for model 204.3 |
1B |
| W15/5 |
Left front footwell ground point |
4F |
| W15/7 |
Right front footwell ground point |
4E |
| W15/7 |
Right front footwell ground point |
25E |
| X30/49 |
Front end CAN potential distributor electrical connector |
31L |
| X35/6 |
Instrument panel and module box electrical connector |
1E |
| X35/6 |
Instrument panel and module box electrical connector |
5E |
| X35/6 |
Instrument panel and module box electrical connector |
7E |
| X35/6 |
Instrument panel and module box electrical connector |
34E |
| X62/32 |
Rear axle electrical connector, left distributor |
11H |
| X62/32 |
Rear axle electrical connector, left distributor |
27H |
