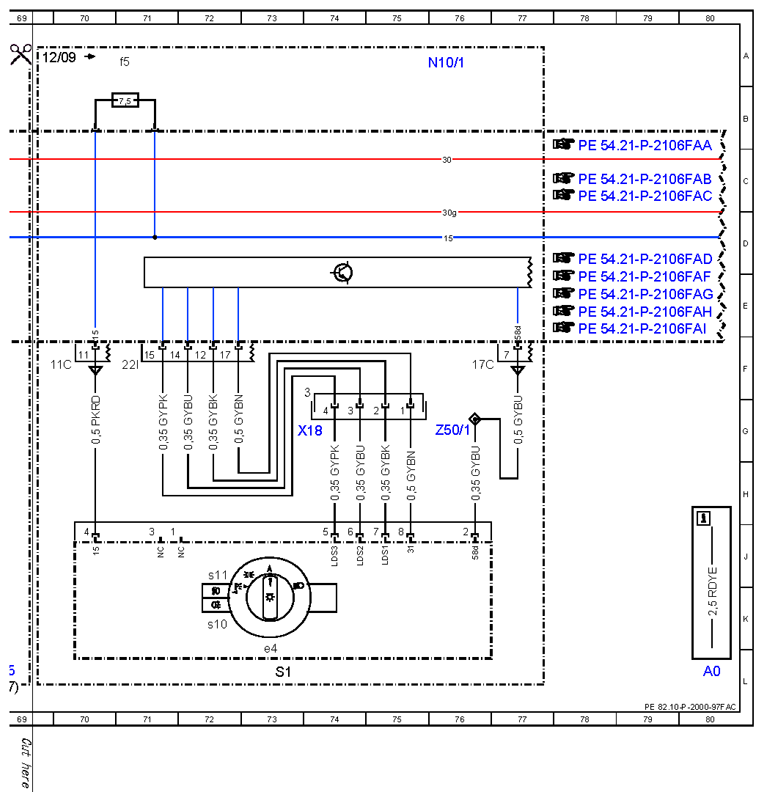

| A0 |
Color code key |
80L |

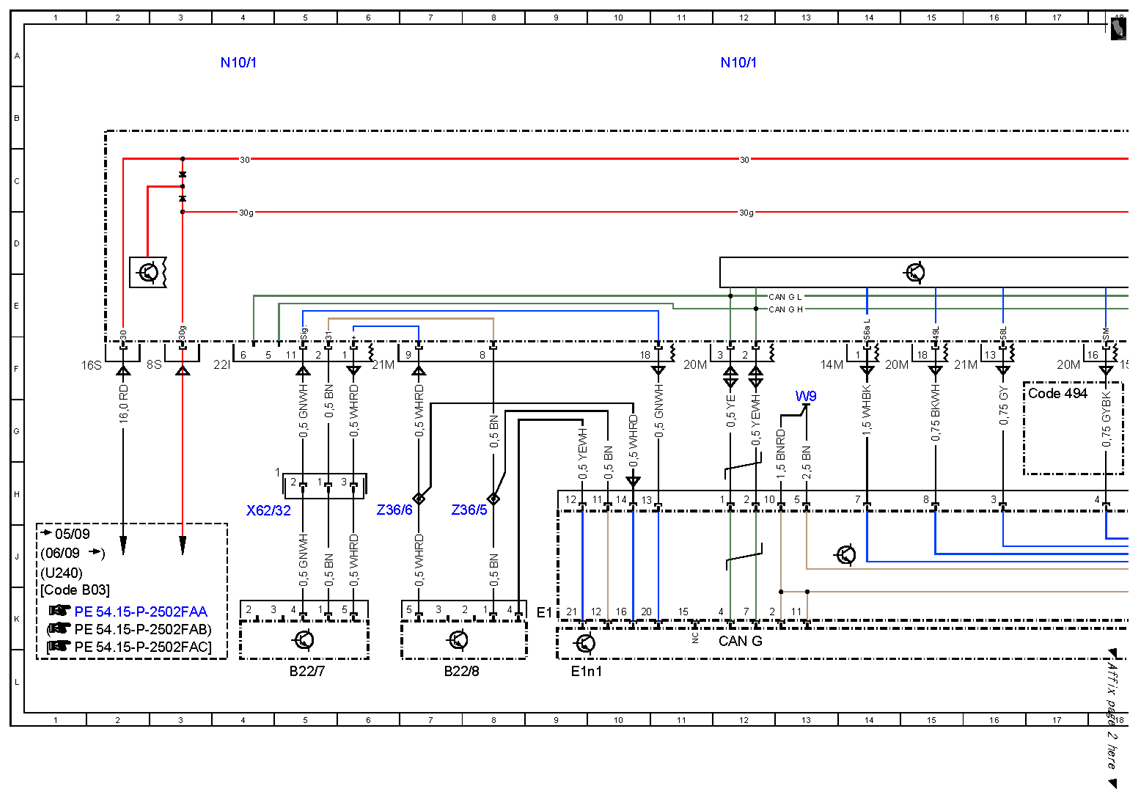

| B22/7 |
Left rear level sensor |
5L |
| B22/8 |
Left front level sensor |
7L |
| CAN G |
Front end CAN |
12K |
| CAN G |
Front end CAN |
39K |
| Code 494 |
USA version |
43F |
| Code 494 |
USA version |
17F |
| Code B03 |
ECO start/stop function |
1K |

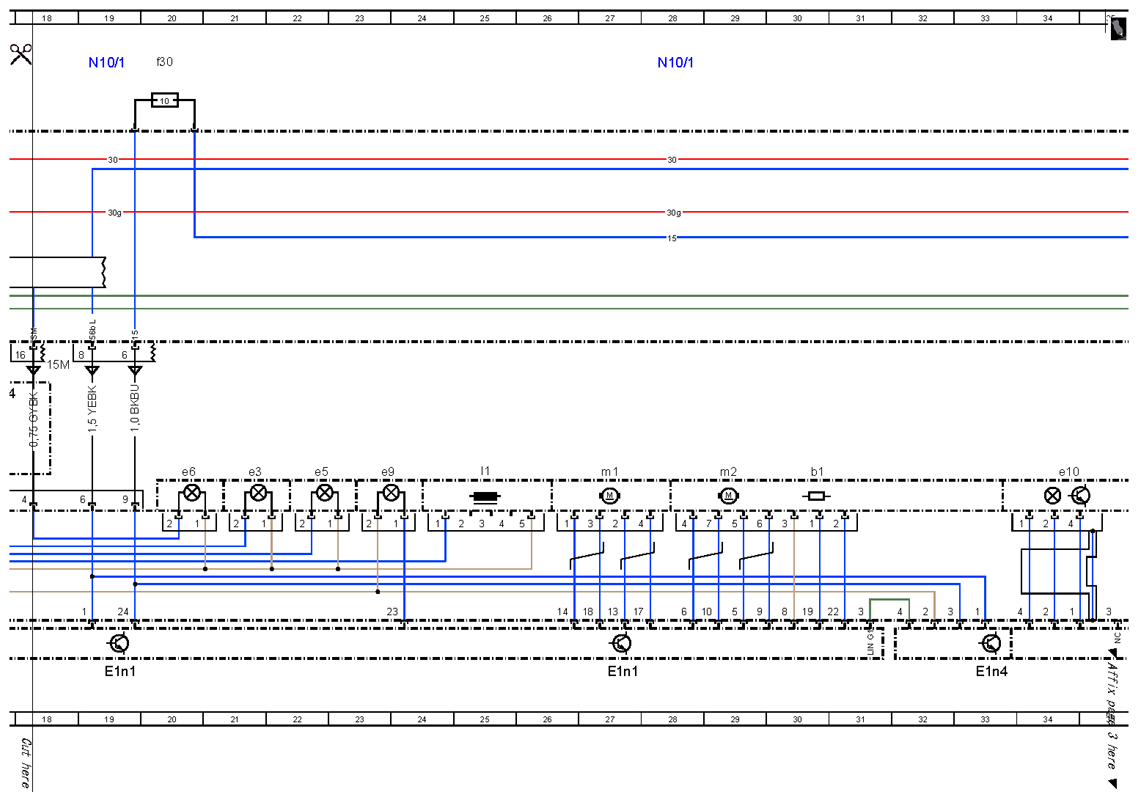

| E1 |
Left front lamp unit |
9K |
| E1b1 |
Left active curve illumination position sensor |
30H |
| E1e10 |
Left xenon bulb with integrated ignition module |
34H |
| E1e3 |
Left front standing and parking lamp |
21H |
| E1e5 |
Left front turn signal lamp |
22H |
| E1e6 |
Left front side-marker lamp |
20H |
| E1e9 |
Left cornering illumination |
23H |
| E1l1 |
Left high beam solenoid |
25H |
| E1m1 |
Left headlamp range adjustment actuator motor |
27H |
| E1m2 |
Left active curve illumination actuator motor |
29H |
| E1n1 |
Left xenon lamp control unit |
9L |
| E1n1 |
Left xenon lamp control unit |
27L |
| E1n1 |
Left xenon lamp control unit |
19L |
| E1n4 |
Left xenon light power supply module |
33L |

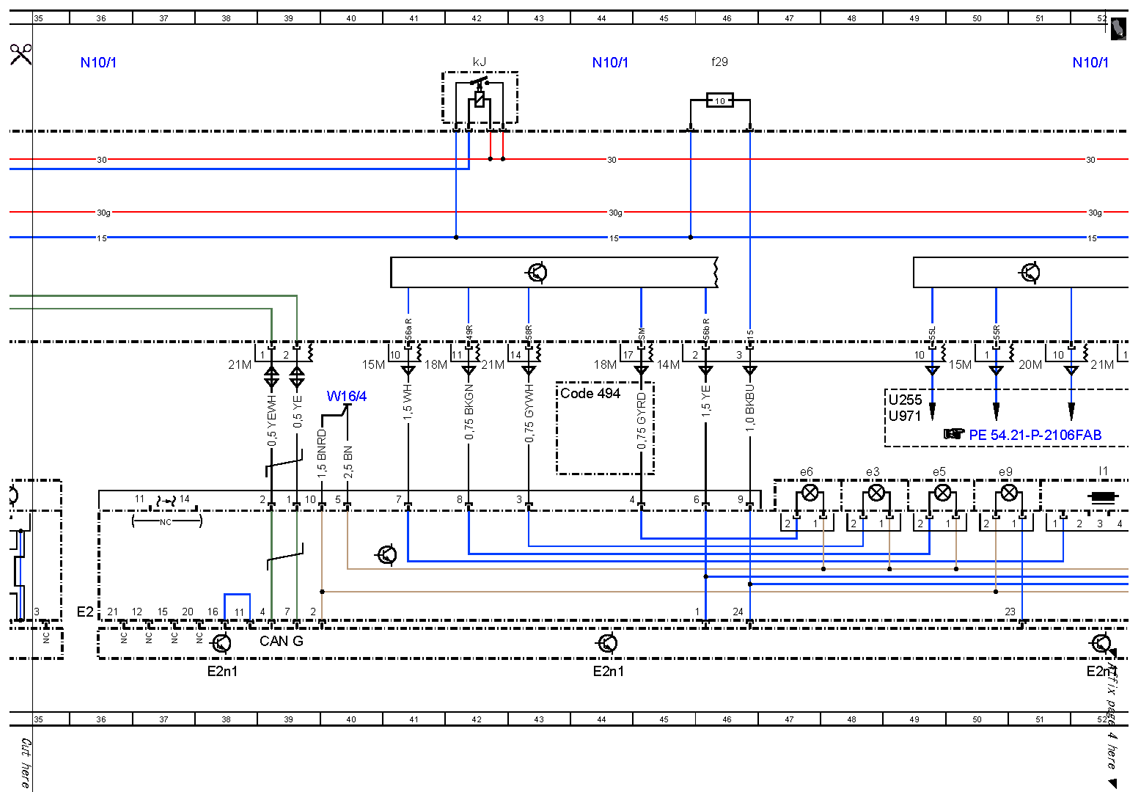

| E2 |
Right front lamp unit |
36K |
| E2b1 |
Right active curve illumination position sensor |
57H |
| E2e10 |
Right xenon bulb with integrated ignition module |
61H |
| E2e3 |
Right front standing and parking lamp |
48H |
| E2e5 |
Right front turn signal lamp |
49H |
| E2e6 |
Right front side-marker lamp |
47H |
| E2e9 |
Right cornering illumination |
50H |
| E2l1 |
Right high beam solenoid |
52H |
| E2m1 |
Right headlamp range adjustment actuator motor |
54H |
| E2m2 |
Right active curve illumination actuator motor |
56H |
| E2n1 |
Right xenon light control unit |
38L |
| E2n1 |
Right xenon light control unit |
44L |
| E2n1 |
Right xenon light control unit |
52L |
| E2n1 |
Right xenon light control unit |
58L |

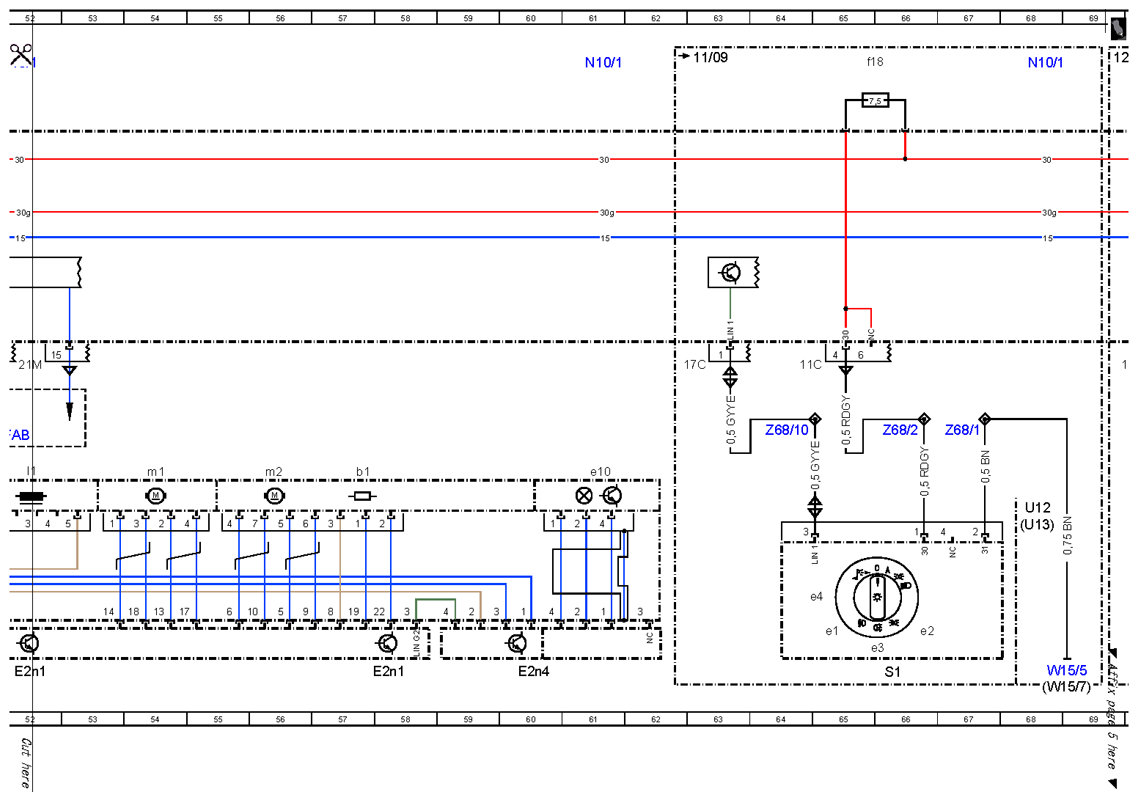

| E2n4 |
Right xenon light power supply module |
60L |
| LIN 1 |
Instrument panel LIN |
64J |
| LIN 1 |
Instrument panel LIN |
63F |
| LIN G1 |
Left headlamp LIN |
31K |
| LIN G2 |
Right headlamp LIN |
58K |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
19A |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
52A |
| N10/1 |
Front SAM control unit with fuse and relay module |
61A |
| N10/1 |
Front SAM control unit with fuse and relay module |
68A |
| N10/1 |
Front SAM control unit with fuse and relay module |
76A |
| N10/1f18 |
Fuse 18 |
65A |
| N10/1f29 |
Fuse 29 |
46A |
| N10/1f30 |
Fuse 30 |
20A |
| N10/1f5 |
Fuse 5 |
71A |
| N10/1kJ |
Circuit 15 relay |
42A |
| S1 |
Exterior lights switch |
66L |
| S1 |
Exterior lights switch |
73L |
| S1e1 |
Front fog lamps indicator lamp |
65K |
| S1e2 |
Rear fog lamp indicator lamp |
66K |
| S1e3 |
Standing lamps indicator lamp |
65L |
| S1e4 |
Switch illumination |
65K |
| S1e4 |
Switch illumination |
73L |
| S1s10 |
Rear fog light button |
72K |
| S1s11 |
Front fog lamp button |
72J |
| U12 |
Valid for left-hand drive vehicles |
68H |
| U13 |
Valid for right-hand drive vehicles |
68J |
| U240 |
Valid for all except ECO start/stop function |
1J |
| U255 |
Valid for front fog lamps |
49G |
| U971 |
Valid for daytime running lamps |
49G |
| W15/5 |
Left front footwell ground point |
68L |
| W15/7 |
Right front footwell ground point |
68L |
| W16/4 |
Right wheelhouse ground point |
40G |
| W9 |
Left front ground point (at lamp unit) |
13G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
74G |
| X62/32 |
Rear axle electrical connector, left distributor |
4H |
| Z36/5 |
Headlamp range adjustment sensor ground connector sleeve |
8H |
| Z36/6 |
Sensor voltage supply connector sleeve |
6H |
| Z50/1 |
Circuit 58d instrument panel connector sleeve |
76G |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
67G |
| Z68/10 |
Instrument panel LIN connector sleeve |
64G |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
66G |
