| A0 |
Color code key |
64L |
| Code 494 |
USA version |
17J |
| Code 494 |
USA version |
15J |
| Code 494 |
USA version |
30J |
| Code 494 |
USA version |
30J |
| Code B03 |
ECO start/stop function |
1K |

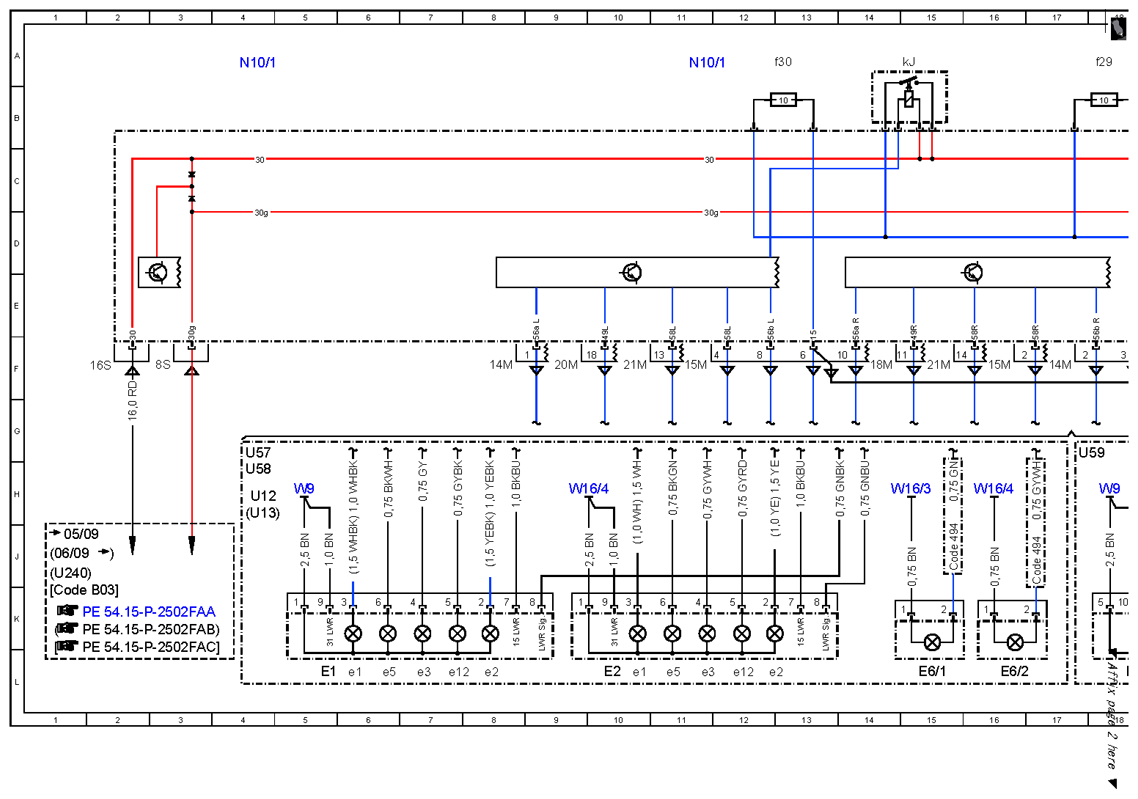

| E1 |
Left front lamp unit |
5L |
| E1 |
Left front lamp unit |
18L |
| E1e1 |
Left high beam |
6L |
| E1e1 |
Left high beam |
19L |
| E1e12 |
Left front standing light 2 |
7L |
| E1e2 |
Left low beam |
8L |
| E1e2 |
Left low beam |
21L |
| E1e3 |
Left front standing and parking lamp |
7L |
| E1e3 |
Left front standing and parking lamp |
20L |
| E1e5 |
Left front turn signal lamp |
6L |
| E1e5 |
Left front turn signal lamp |
19L |

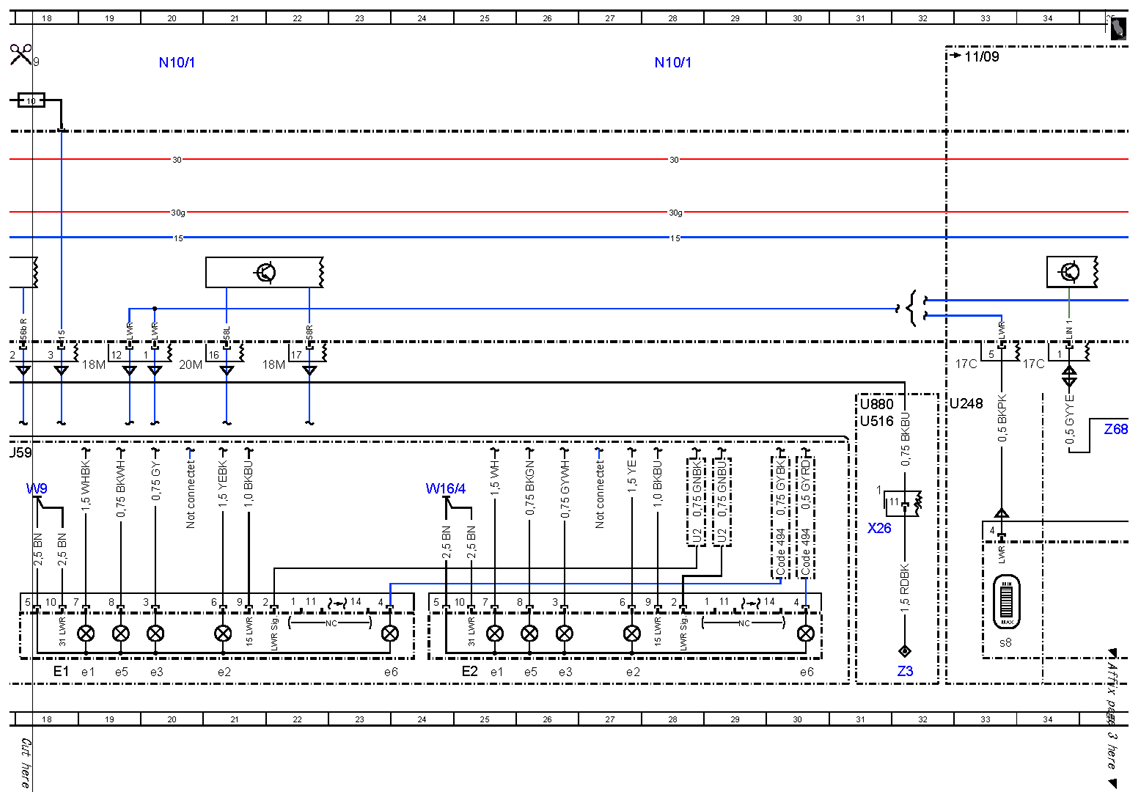

| E2 |
Right front lamp unit |
10L |
| E2 |
Right front lamp unit |
25L |
| E2e1 |
Right high beam |
10L |
| E2e1 |
Right high beam |
25L |
| E2e12 |
Right front standing light 2 |
12L |
| E2e2 |
Right low beam |
12L |
| E2e2 |
Right low beam |
27L |
| E2e3 |
Right front standing and parking lamp |
11L |
| E2e3 |
Right front standing and parking lamp |
26L |
| E2e5 |
Right front turn signal lamp |
11L |
| E2e5 |
Right front turn signal lamp |
26L |
| E2e6 |
Right front side-marker lamp |
23L |
| E2e6 |
Right front side-marker lamp |
30L |
| E6/1 |
Left front side-marker lamp |
15L |
| E6/2 |
Right front side-marker lamp |
16L |
| LIN 1 |
Instrument panel LIN |
35J |
| LIN 1 |
Instrument panel LIN |
34F |

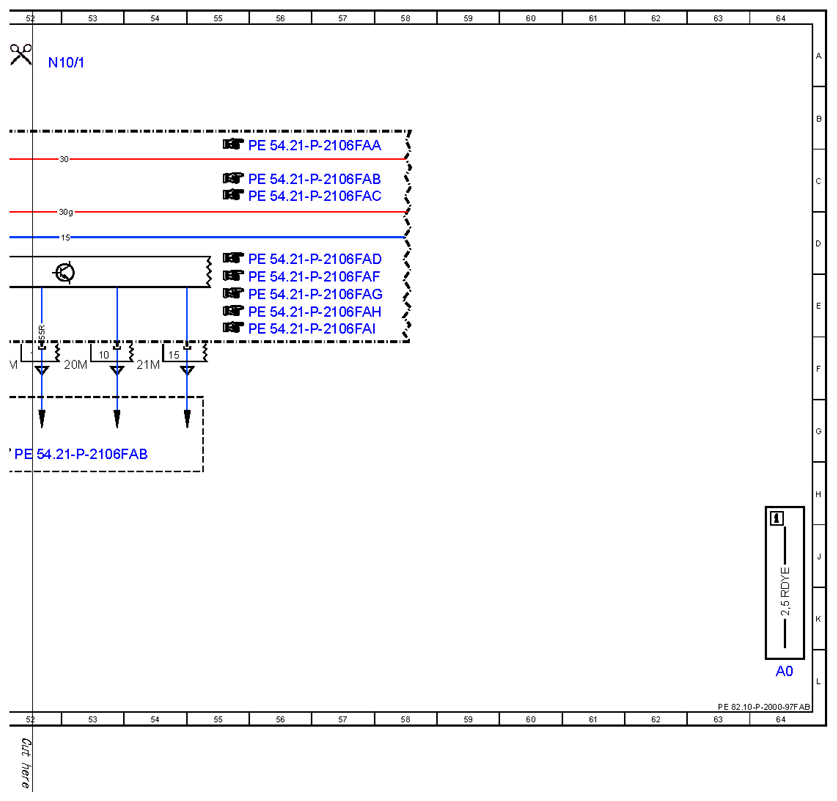

| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
11A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
52A |
| N10/1f18 |
Fuse 18 |
37A |
| N10/1f29 |
Fuse 29 |
18A |
| N10/1f30 |
Fuse 30 |
13A |
| N10/1f5 |
Fuse 5 |
43A |
| N10/1kJ |
Circuit 15 relay |
15A |

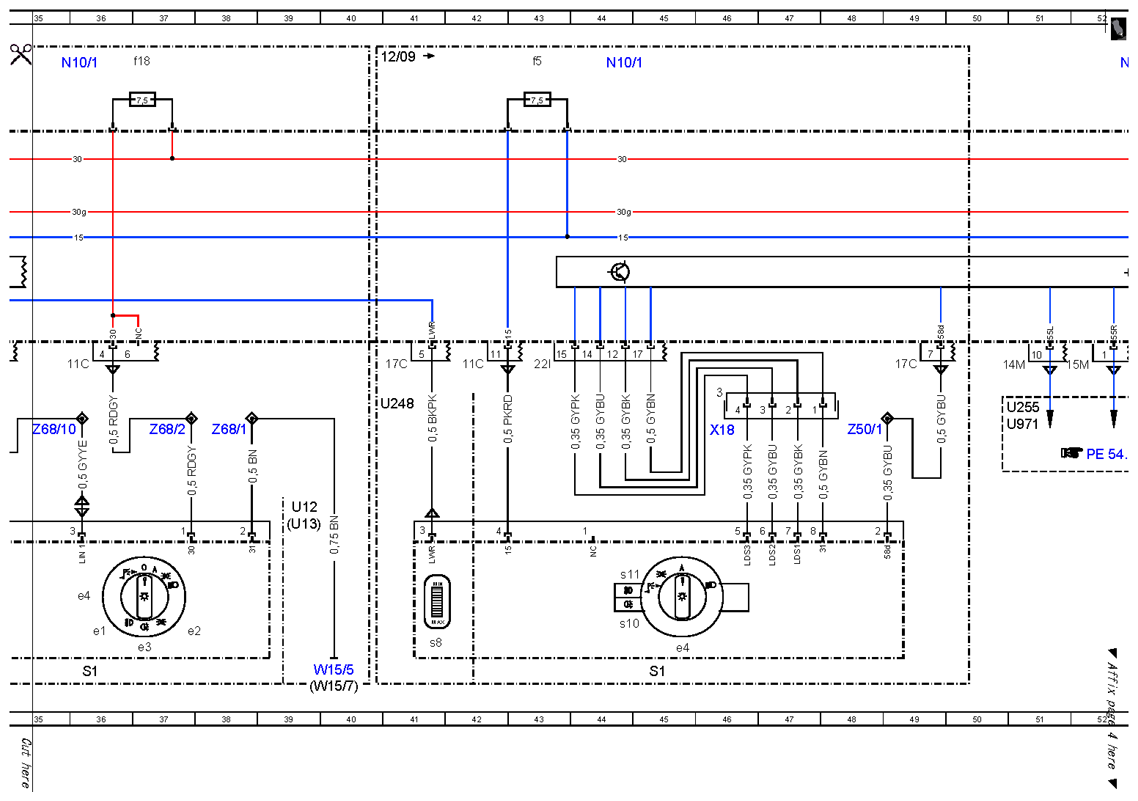

| S1 |
Exterior lights switch |
36L |
| S1 |
Exterior lights switch |
45L |
| S1e1 |
Front fog lamps indicator lamp |
36K |
| S1e2 |
Rear fog lamp indicator lamp |
37K |
| S1e3 |
Standing lamps indicator lamp |
37L |
| S1e4 |
Switch illumination |
45L |
| S1e4 |
Switch illumination |
36K |
| S1s10 |
Rear fog light button |
44K |
| S1s11 |
Front fog lamp button |
44J |
| S1s8 |
Headlamp range controller |
33K |
| S1s8 |
Headlamp range controller |
41K |
| U12 |
Valid for left-hand drive vehicles |
4H |
| U12 |
Valid for left-hand drive vehicles |
39H |
| U13 |
Valid for right-hand drive vehicles |
4H |
| U13 |
Valid for right-hand drive vehicles |
39J |
| U2 |
Valid for all except USA |
29J |
| U2 |
Valid for all except USA |
28J |
| U240 |
Valid for all except ECO start/stop function |
1J |
| U248 |
Valid for headlamp range adjustment for halogen headlamps |
32G |
| U248 |
Valid for headlamp range adjustment for halogen headlamps |
40G |
| U255 |
Valid for front fog lamps |
50G |
| U516 |
Valid for emissions standard EURO 4 |
31G |
| U57 |
Valid for model 204.2 |
4G |
| U58 |
Valid for model 204.0 |
4H |
| U59 |
Valid for model 204.9 |
17G |
| U880 |
Valid for diesel engine 642 |
31G |
| U971 |
Valid for daytime running lamps |
50G |
| W15/5 |
Left front footwell ground point |
40L |
| W15/7 |
Right front footwell ground point |
40L |
| W16/3 |
Left major assembly compartment ground point |
15H |
| W16/4 |
Right wheelhouse ground point |
9H |
| W16/4 |
Right wheelhouse ground point |
16H |
| W16/4 |
Right wheelhouse ground point |
24H |
| W9 |
Left front ground point (at lamp unit) |
5H |
| W9 |
Left front ground point (at lamp unit) |
18H |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
46G |
| X26 |
Interior and engine wiring harness electrical connector |
31J |
| Z3 |
Tml. 15 connector sleeve |
32L |
| Z50/1 |
Circuit 58d instrument panel connector sleeve |
48G |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
38G |
| Z68/10 |
Instrument panel LIN connector sleeve |
35G |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
37G |
