Remove/install xenon light power supply module - AR82.10-P-4635CY
MODEL 204.9 up to model year 2013 with CODE 615 (Bi-xenon headl. (LHD veh.) w. corn. function) Up to model year 2013

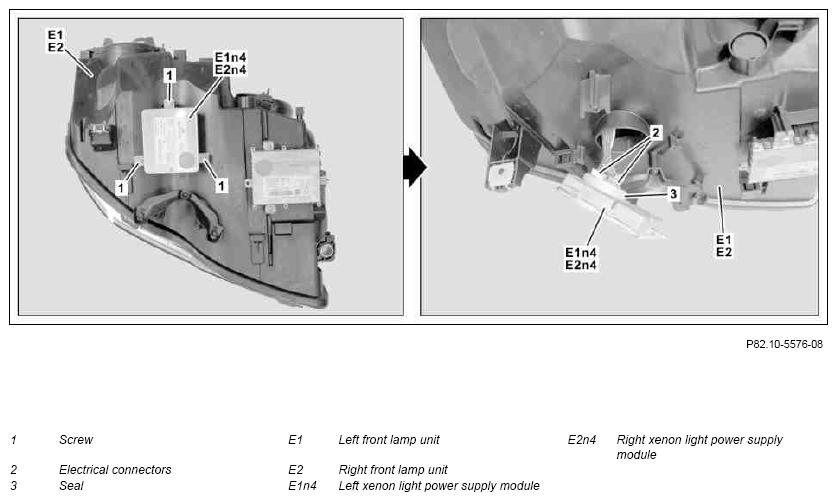

Shown on the left front lamp unit (E1)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of death due to high voltage in xenon headlamps. Risk of explosion/risk of fire caused by highly flammable materials in the vicinity of damaged xenon bulbs. Risk of injury caused by UV light, hot components at xenon headlamps and glass splinters produced by bursting xenon bulbs. Risk of poisoning caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with skin | Do not touch parts conducting high voltage. Persons with active electronic implants (e.g. cardiac pacemakers) must never work on xenon headlamps. Switch off the entire lighting system. Wear insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure sufficient ventilation in the working area. | AS82.10-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of left xenon light power supply module (E1n4) or right xenon light power supply module (E2n4) | Only when replacing left xenon light power supply module (E1n4) or right xenon light power supply module (E2n4). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 3 | Lift vehicle on vehicle lift. | ||
| 4 | Release left fender liner in vicinity of bumper and lift out fender liner with assembly wedge | When removing left xenon light power supply module (E1n4). | |
| Figure | |||
| 5 | Release right fender liner in vicinity of bumper and lift out fender liner with assembly wedge | When removing right xenon light power supply module (E2n4). | |
| Figure | |||
| 6 | Remove bolt (1) | ||
| 7 | Remove left xenon light power supply module (E1n4) or right xenon light power supply module (E2n4) | ||
| 8 | Separate electrical connectors (2) | ||
| 9 | Install in the reverse order |
