Remove/install telescoping nozzle for headlamp cleaning system - AR82.15-P-6100CY
MODEL 204.9 with CODE (600) Headlamp cleaning system

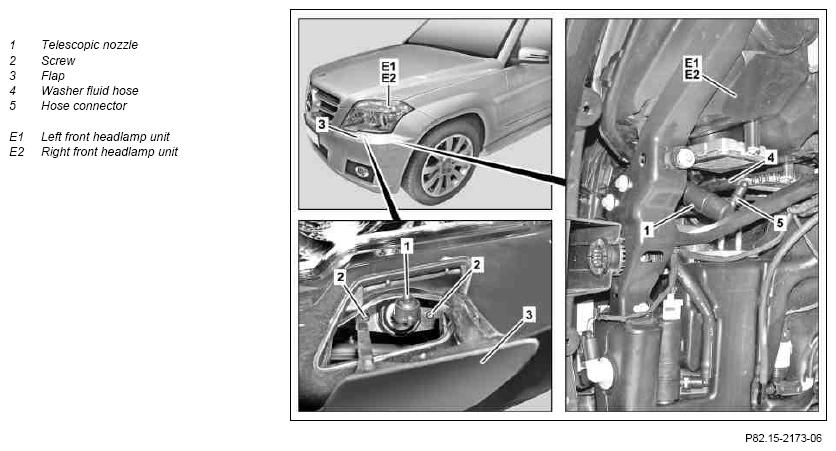

Model 204.9, shown at left side of vehicle
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on lifting platform. | ||
| 2.1 | Unfasten washer fluid reservoir of windshield washer system and push to side with lines connected | When removing left telescopic nozzle (1). | AR82.35-P-6000CY |
| 2.2 | Remove front section of fender liner in right front fender | When removing right telescopic nozzle (1). | |
| 3 | Clamp off washer fluid hose (4) with a clamp and disconnect hose coupling (5) with washer fluid hose (4) from telescopic nozzle (1). | Fig 2 | |
| 4 | Open flap (3) of headlamp cleaning system in front bumper | ||
| 5 | Remove screws/bolts (2) of telescopic nozzle (1) | ||
| 6 | Remove telescopic nozzle (1) | ||
| 7 | Install in the reverse order | ||
| 8 | Check spray nozzle setting of headlamp cleaning system, adjust if necessary | AP82.30-P-8252CW |
