Remove/install taillamp - AR82.10-P-4905CY

MODEL 204.9

REFER TO USER INFORMATION     OV00.01-P-1901-07A
Fig 1: Identifying Taillamp Remove/Install Components (1 Of 4)
G09983997Courtesy of MERCEDES-BENZ USA

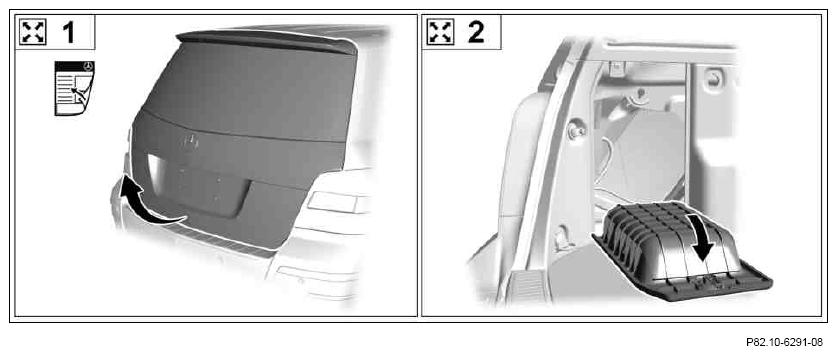

Fig 2: Identifying Taillamp Remove/Install Components (2 Of 4)
G09983998Courtesy of MERCEDES-BENZ USA

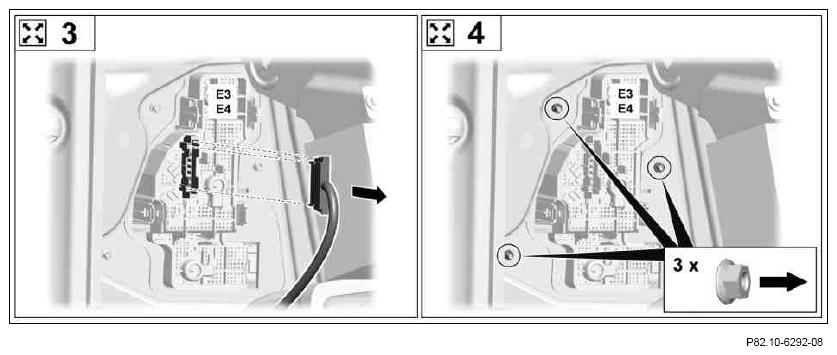

Fig 3: Identifying Taillamp Remove/Install Components (3 Of 4)
G09983999Courtesy of MERCEDES-BENZ USA

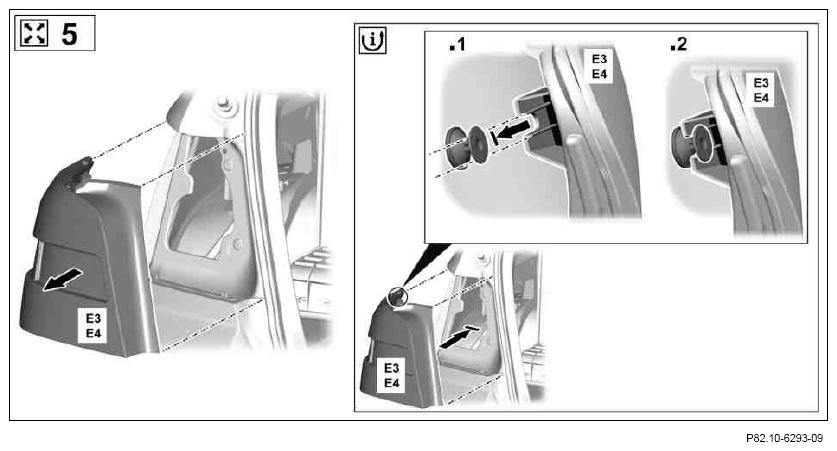

Fig 4: Identifying Taillamp Remove/Install Components (4 Of 4)
G09984000Courtesy of MERCEDES-BENZ USA
INSTALLING 5 to 1
