Remove/install signaling lights actuation module - AR82.10-P-4655CYA

MODEL 204.9 as of model year 2013 with CODE 615 (Bi-xenon headl. (LHD veh.) w. corn. function)

MODEL 204.9 as of model year 2013 with CODE 621 (Intelligent Light System (left-hand traffic))

MODEL 204.9 as of model year 2013 with CODE 622 (Intelligent Light System (right-hand traffic))

Shown with code 622 (Intelligent Light System (right-hand traffic))

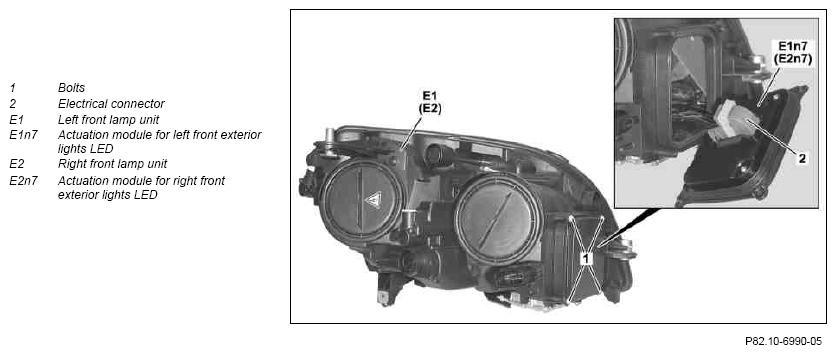

Fig 1: Identifying Signaling Lights Actuation Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Carry out initial startup of left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7)	When replacing left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7)
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		Note string for LAM number on the left front lamp unit (E1) or right front lamp unit (E2).
2	Remove left front lamp unit (E1) or right front lamp unit (E2)		AR82.10-P-4730CY
3	Remove screws/bolts (1) and remove left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) until electrical connector (2) is accessible
4	Disconnect electrical connector (2) and remove left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7)
5	Install in the reverse order
