Remove/install headlight beam adjustment control unit - AR82.10-P-4081CW
MODEL 204.0/2 as of model year 2012 with CODE 615 (Bi-xenon headlamp unit) with CODE 621 (Intelligent Light System (left-hand traffic)) with CODE 622 (Intelligent Light System (right-hand traffic))
MODEL 204.3 with CODE 615 (Bi-xenon headlamp unit) with CODE 621 (Intelligent Light System (left-hand traffic)) with CODE 622 (Intelligent Light System (right-hand traffic))
MODEL 204.9 as of model year 2013 with CODE 615 (Bi-xenon headlamp unit) with CODE 621 (Intelligent Light System (left-hand traffic)) with CODE 622 (Intelligent Light System (right-hand traffic))
Illustrated on model 204.3

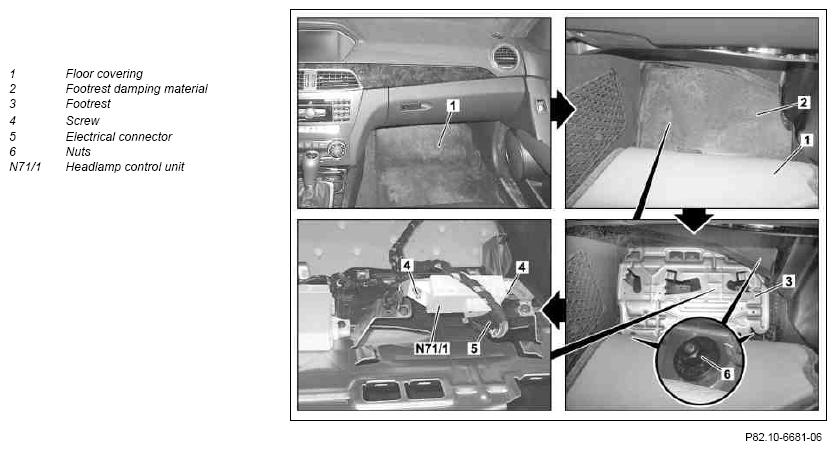

Fig 1: Identifying Headlight Beam Adjustment Control Unit Remove/Install Components - Illustrated On Model 204.3
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73) | KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go | |
| 2 | Fold back floor covering (1) in passenger footwell | ||
| 3 | Remove footrest damping material (2) | MODEL 204.0/2/3 | |
| 4 | Remove nuts (6) and fold footrest (3) toward rear | ||
| 5 | Remove screws/bolts (4) | ||
| 6 | Disconnect electrical connector (5) and remove headlamp control unit (N71/1) | ||
| 7 | Install in the reverse order | ||
| 8 | Perform initial startup of headlamp control unit (N71/1) | ||
| AD00.00-P-2000-04A | |||
