Remove/install display in rear - AR82.60-P-7720CY

MODEL 204.9 with CODE (864) Rear entertainment system

Illustrated on model 204.9

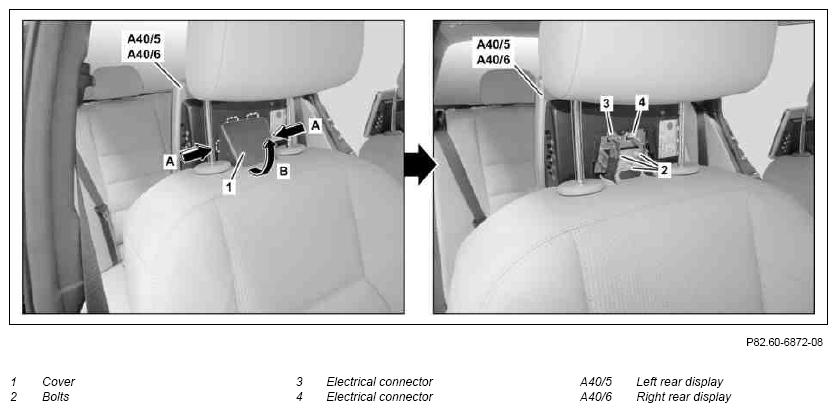

Fig 1: Identifying Rear Display Remove/Install Components - Illustrated On Model 204.9 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

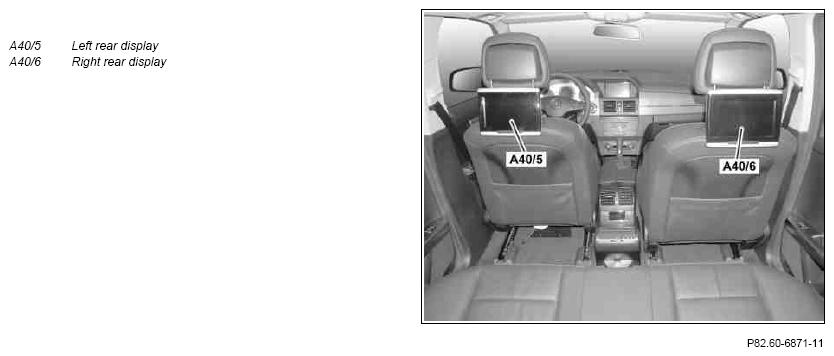

Fig 2: Identifying Rear Display Remove/Install Components - Illustrated On Model 204.9 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Illustrated on model 204.9

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Buffer basic data of rear entertainment system in STAR DIAGNOSIS	When replacing the left rear display (A40/5) or the right rear display (A40/6). Transfer buffered basic data to rear entertainment system.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Adjust head restraints at driver and front passenger seat upwards
3	Push cover (1) together carefully in direction of arrow (arrows A), swivel upwards (arrow B) and remove
4	Disconnect electrical connectors (3, 4)
5	Remove bolts (2)	The black clip for fastening the seat cover may prevent the lower screw/bolt (2) from being removed. If necessary, remove black clip for fastening seat cover.
6	Remove left rear display (A40/5) or right rear display (A40/6) upwards
7	Install in the reverse order
