Remove/install bass module speaker - AR82.62-P-7839CY
MODEL 204.9 with CODE (810) Sound system

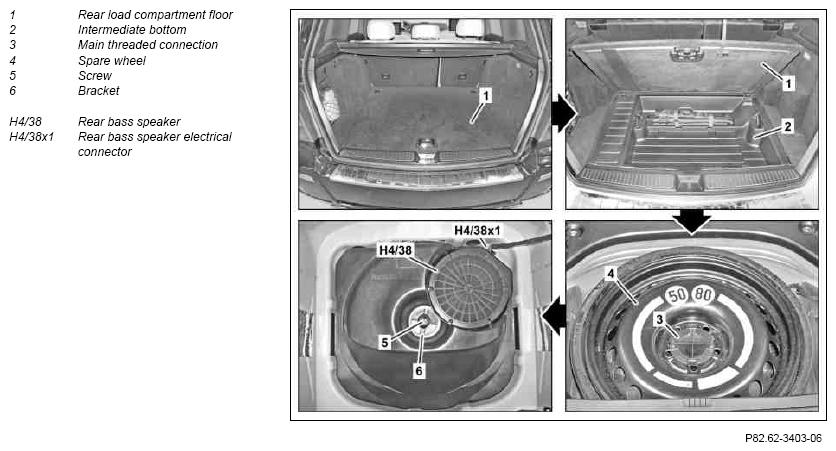

| Remove/install | |||
| 1 | Open rear cargo area floor (1) | ||
| 2 | Remove intermediate bottom (2) | ||
| 3 | Remove main threaded connection (3) and remove spare tire (4) | With code (669) Spare tire on steel rim | |
| 4 | Remove screw/bolt (5) and remove bracket (6) | ||
| 5 | Disconnect electrical connector from rear bass speaker (H4/38x1) and remove rear bass speaker (H4/38) | ||
| 6 | Install in the reverse order |
