Remove/install backup antenna for Tele-Aid emergency call system - AR82.95-P-0004CY
MODEL 204.9 with CODE (359) TELE AID emergency call system with CODE (494) USA version
| Remove/install | |||
| 1 | Remove headliner | AR68.30-P-4300CY | |
| 2 | Disconnect electrical connector for emergency call system (A2/52x1) | ||

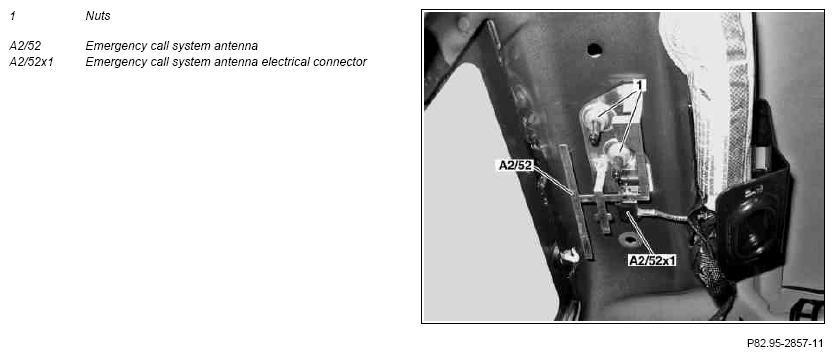

| 3 | Unscrew nuts (1) and remove the emergency call system antenna (A2/52) | ||
| 4 | Install in the reverse order |
