Remove/install DVD player - AR82.60-P-7505CY

MODEL 204.9 with CODE (864) Rear entertainment system

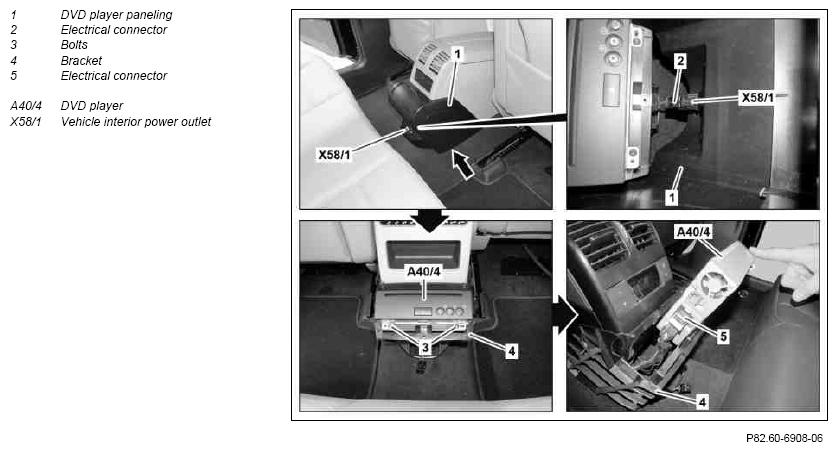

Fig 1: Identifying DVD Player Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Buffer basic data of rear entertainment system in STAR DIAGNOSIS	When replacing the DVD player (A40/4). Transfer buffered basic data to rear entertainment system.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Pull DVD player paneling (1) outwards slightly at the bottom (arrow) and then remove from above until the electrical connector (2) of the vehicle interior socket (X58/1) is accessible
3	Disconnect electrical connector (2) and remove DVD player paneling (1).
4	Remove screws (3) and lift DVD player (A40/4) out of bracket (4) from above until the electrical connector (5) is accessible
5	Disconnect electrical connector (5) and remove DVD player (A40/4)
6	Install in the reverse order
