Remove, install DVD player mount - AR82.60-P-7506CY

MODEL 204.9 with CODE (864) Rear entertainment system

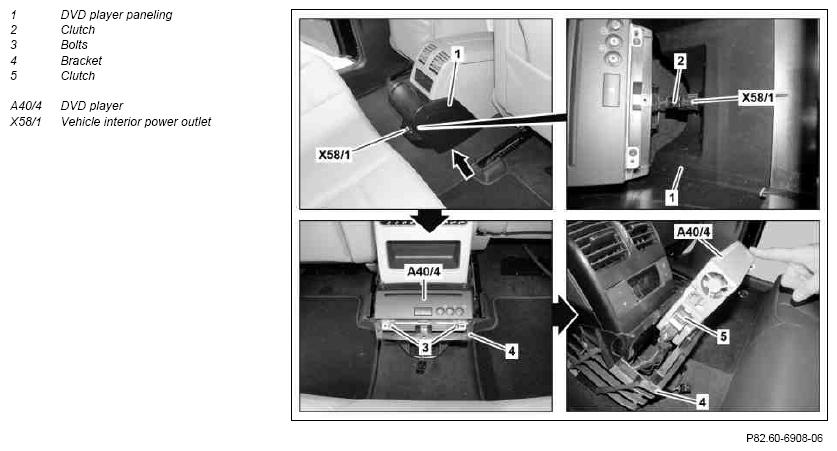

Fig 1: Identifying DVD Player Mount Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

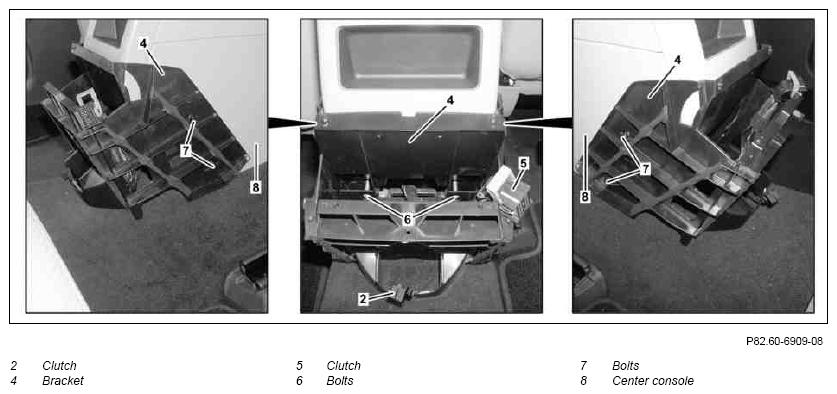

Fig 2: Identifying DVD Player Mount Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Pull DVD player paneling (1) outwards slightly at the bottom (arrow) and remove from above until the connector (2) of the vehicle interior power outlet (X58/1) is accessible
2	Disconnect connector (2) and remove DVD player paneling (1)
3	Remove screws (3) and lift out DVD player (A40/4) until the connector (5) is accessible
4	Disconnect connector (5) and put DVD player (A40/4) to one side
5	Remove bolts (6, 7) and bracket (4)	Only when replacing the bracket (4) or carrying out other repair work at the center console (8). Cordless drill/driver Route connectors (2, 5) through openings in bracket as shown.
6	Install in the reverse order
7	Perform function check of DVD player (A40/4) and vehicle interior power outlet (X58/1)
