Retrofit tablet PC mount - AZ82.80-P-0003CWA

MODEL 204.9 with CODE 866 (Preinstallation for rear entertainment system)

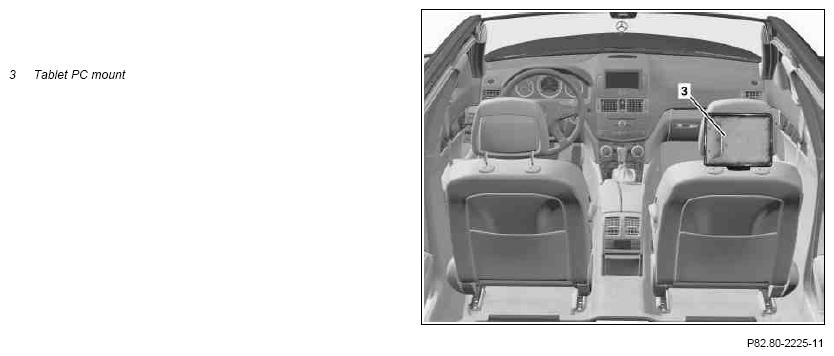

Fig 1: Identifying Tablet PC Mount

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Disconnect battery ground line
			AR54.10-P-0003CW
2	Release rear SAM control unit with fuse and relay module
			AR54.21-P-1258CY
		Do not disconnect electrical leads.
	Install
3	Retrofit bracket for Tablet PC mount (3)		AZ82.80-P-0003-04GQA
		The following operation steps are shown on the right side of the vehicle and can be accomplished analogously on the left side of the vehicle. Clarification must be reached with the customer in advance regarding the side of the vehicle on which the Tablet PC mount (3) is to be installed.
	Risk of injury  caused by burns to skin and eyes, risk of poisoning caused by inhaling fumes during soldering.	Wear protective gloves, protective clothing and safety glasses. Ensure that the work area is adequately ventilated. Secure power supply cables. Avoid sources of fire in working area.	AS00.19-Z-0002-01A
4	Retrofit wiring harness for Tablet PC mount (3)		AZ82.80-P-0003-02CWB
		Hot air blowers, soldering units
		Wiring harness repair kit, basic	Figure
		New passenger car wiring harness repair kit	Figure
5	Retrofit Tablet PC mount (3)		AZ82.80-P-0003-03GQA
6	Install remaining parts
7	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Tablet PC mount retrofitted as per AZ82.80-P-0003CWA " under field organization texts to design group 82 and design group 91.
8	Perform function test	See operator's manual for mount for Tablet PC.

Fig 2: Identifying Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
