Retrofit tablet PC mount - AZ82.80-P-0003CW

MODEL 204.0 (except 204.077), 204.2 (except 204.277) without CODE 866 (Preinstallation for rear entertainment system)

MODEL 204.9 without CODE 864 (Rear entertainment system) without CODE 866 (Preinstallation for rear entertainment system)

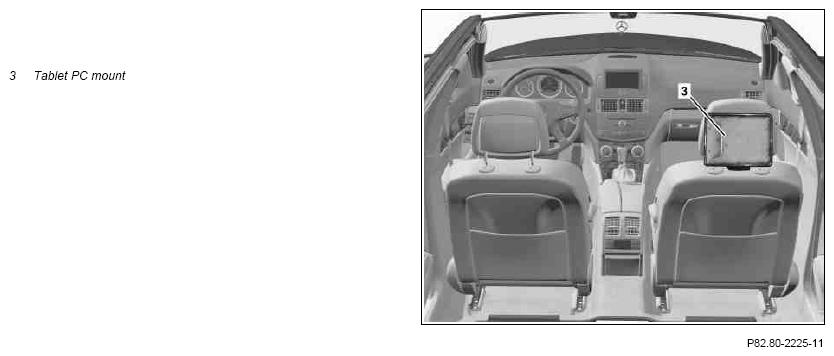

Fig 1: Identifying Retrofit Tablet PC Mount

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Determine installation location of Tablet PC mount (3)	The following operation steps are shown on the right side of the vehicle and can be accomplished analogously on the left side of the vehicle. Clarification shall need to be reached with the customer regarding the side of the vehicle on which the Tablet PC mount (3) is to be installed.
2	Detach right front seat
			AR91.10-P-1000CW
3	Remove seat-back lining from right backrest
			AR91.10-P-1910CW
4.1	Detach right front seat head restraint motor	Vehicles with CODE 242 (Electrically adjustable front passenger seat with memory) or with CODE 275 (Memory package (driver seat, steering column, mirror))
			AR91.29-P-1432CW
		Do not completely remove the head restraint, simply loosen it.
4.2	Move right front seat head restraint all the way to the top	Vehicles without CODE 242 (Electrically adjustable front passenger seat with memory) or without CODE 275 (Memory package (driver seat, steering column, mirror))
	Install
5	Make cutout for Tablet PC mount bracket (3)		AZ82.80-P-0003-07CW
6	Retrofit Tablet PC mount control unit	Vehicles with CODE 275 (Memory package (driver seat, steering column, mirror)) or with CODE 242 (Electrically adjustable front passenger seat with memory)	AZ82.80-P-0003-01CW
7	Retrofit wiring harness for Tablet PC mount (3)	Vehicles with CODE 275 (Memory package (driver seat, steering column, mirror)) or with CODE 242 (Electrically adjustable front passenger seat with memory)	AZ82.80-P-0003-02CWA
		Vehicles without CODE 275 (Memory package (driver seat, steering column, mirror)) or without CODE 242 (Electrically adjustable front passenger seat with memory)	AZ82.80-P-0003-02CW
8	Retrofit bracket for Tablet PC mount (3)		AZ82.80-P-0003-04CW
		Screw/bolt, tablet PC mount bracket to seat	*BA82.80-P-1001-01A
9	Retrofit Tablet PC mount (3)		AZ82.80-P-0003-03CW
10	Install remaining parts
11	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Tablet PC mount retrofitted as per AZ82.80-P-0003CW " to design group 82.
12	Perform function test	See operator's manual for Tablet PC holder.
