Retrofit additional fan for COMAND - AN82.85-P-0005CW

MODEL 204.0## (except 204.077) 1# up to 2/28/11, 204.2## (except 204.277) 1# up to 2/28/11 up to model year 2011 with CODE 510 (Audio 20 with CD changer) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 204.0## (except 204.077) 1# up to 2/28/11, 204.2## (except 204.277) 1# up to 2/28/11 up to model year 2011 with CODE 511 (Audio 50 APS with DVD changer) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 204.0## (except 204.077) 1# up to 2/28/11, 204.2## (except 204.277) 1# up to 2/28/11 up to model year 2011 with CODE 523 (MB Audio 20 radio) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 204.0## (except 204.077) 1# up to 2/28/11, 204.2## (except 204.277) 1# up to 2/28/11 up to model year 2011 with CODE 525 (MB Audio 50 APS radio) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 204.9## 1# up to 7/30/12 up to model year 2012 with CODE 510 (Audio 20 with CD changer) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 204.9## 1# up to 7/30/12 up to model year 2012 with CODE 511 (Audio 50 APS with DVD changer) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 204.9## 1# up to 7/30/12 up to model year 2012 with CODE 523 (MB Audio 20 radio) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 204.9## 1# up to 7/30/12 up to model year 2012 with CODE 525 (MB Audio 50 APS radio) without CODE 494 (US version) without CODE 498 (Japanese version)

Shown on model 204.0

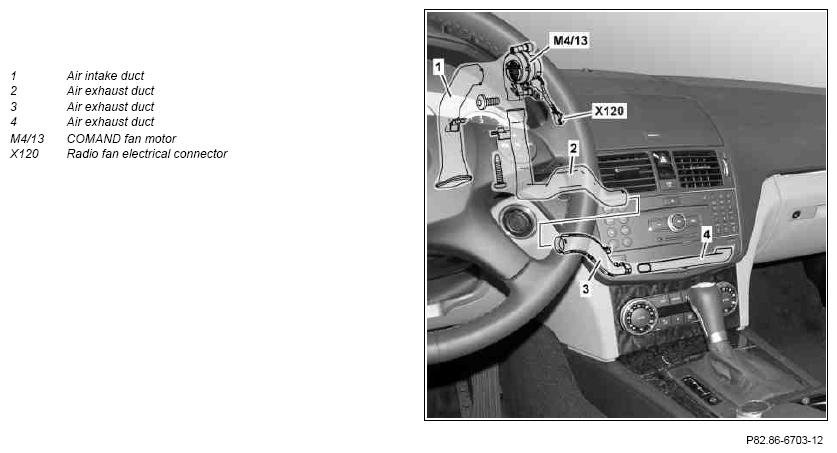

Fig 1: Identifying Retrofit Comand APS With DVD Changer - Shown On Model 204.0 (1 Of 2)
G09983968Courtesy of MERCEDES-BENZ USA

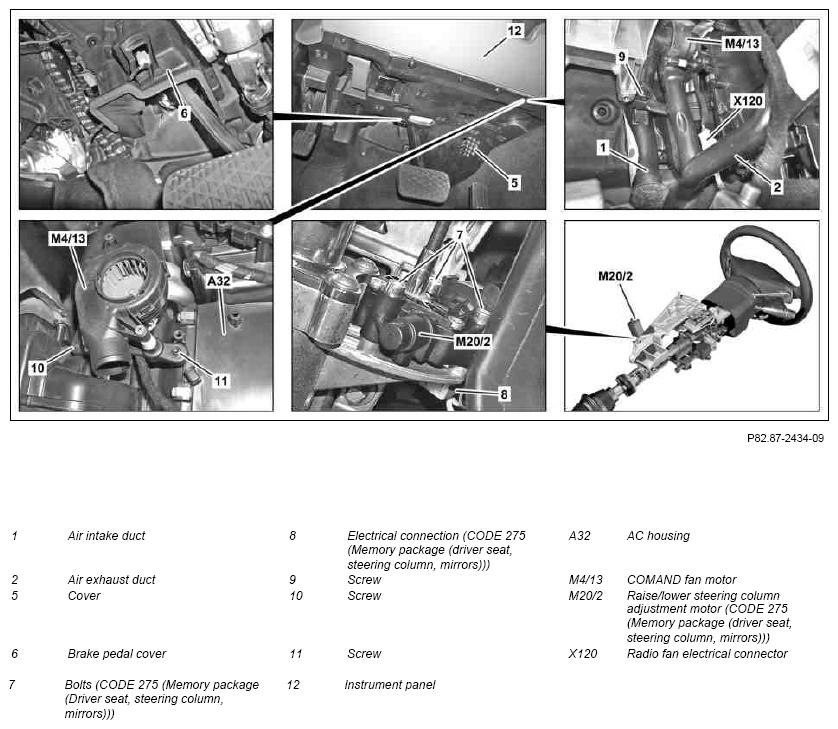

Fig 2: Identifying Retrofit Comand APS With DVD Changer - Shown On Model 204.0 (2 Of 2)
G09983969Courtesy of MERCEDES-BENZ USA

Shown with CODE 275 (Memory package (driver seat, steering column, mirrors))

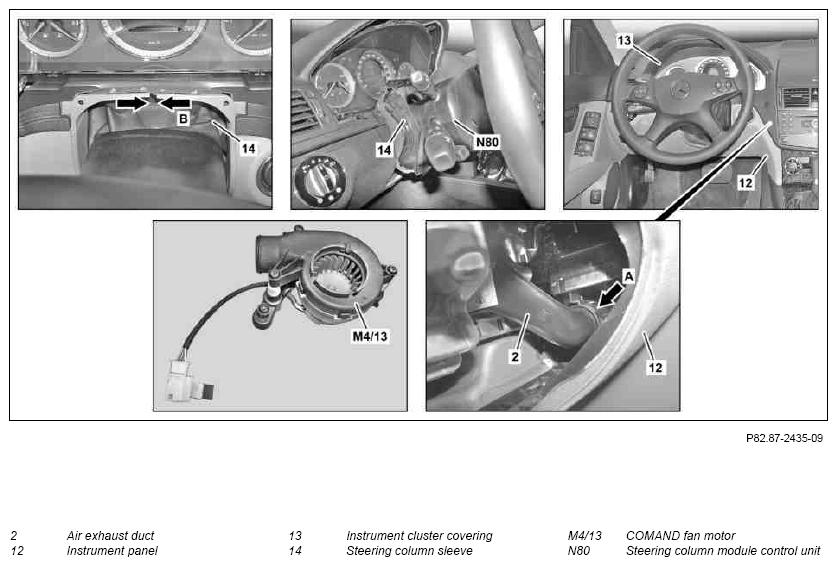

Fig 3: Identifying Retrofit Comand APS With DVD Changer
G09983970Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove audio equipment
REFER TO TESTING & REPAIR     AR82.60-P-7502CW
2 Remove instrument cluster cover (13)
REFER TO TESTING & REPAIR   MODEL 204.0/2 AR54.30-P-6015CW
REFER TO TESTING & REPAIR   MODEL 204.9 AR54.30-P-6015CY
3 Unclip steering column sleeve (14) from instrument panel (12) at both ends (arrows B) and pull over steering column tube module control unit (N80)
4 Remove cover (5)
5 Remove brake pedal cover (6)
6 Disconnect electrical connector (8) from steering column raise/lower adjustment motor (M20/2) MODEL 204 with CODE 275 (Memory package (driver seat, steering column, mirrors))
7 Remove screws/bolts (7) and remove steering column raise/lower adjustment motor (M20/2) MODEL 204 with CODE 275 (Memory package (driver seat, steering column, mirrors))
INSTALLING Install
8 Guide air exhaust duct (3) through opening in area of instrument cluster cover (13) and clip into slot of removed audio equipment at side
9 Slide air exhaust duct (4) into air exhaust duct (3)
10 Position COMAND fan motor (M4/13) at air conditioner housing (A32)
11 Tighten screws/bolts (10, 11) IMPORTANT Use a flexible extension that is approx. 25 to 30 cm long and a compact cordless screwdriver to tighten the bolt (10).
Rechargeable screwdriver, rechargeable drill

12 Connect radio fan electrical connector (X120)
13 Loosely position air exhaust duct (2) in instrument panel (12)
14 Install air intake duct (1) at COMAND fan motor (M4/13) IMPORTANT Ensure that air intake duct (1) engages completely at COMAND fan motor (M4/13). Otherwise air intake duct (1) can work its way loose and thus generate noise.
15 Insert steering column raise/lower adjustment motor (M20/2) and tighten screws/bolts (7) MODEL 204 with CODE 275 (Memory package (driver seat, steering column, mirrors))
16 Connect electrical connector (8) to steering column raise/lower adjustment motor (M20/2) MODEL 204 with CODE 275 (Memory package (driver seat, steering column, mirrors))
17 Insert air exhaust duct (2) into connection (arrow A) of air exhaust duct (3) IMPORTANT Access and visual inspection via the installation opening of the steering column sleeve (14) in the instrument panel (12).
18 Clip steering column sleeve (14) into instrument panel (12) (arrows B)
19 Install instrument cluster cover (13)
REFER TO TESTING & REPAIR   MODEL 204.0/2 AR54.30-P-6015CW
REFER TO TESTING & REPAIR   MODEL 204.9 AR54.30-P-6015CY
20 Tighten bolt (9)
21 Install brake pedal cover (6)
22 Install cover (5)
23 Install audio equipment
REFER TO TESTING & REPAIR     AR82.60-P-7502CW
