Retrofit COMAND APS with DVD changer - AN82.85-P-0004CYC

MODEL 204.9## 1# as of 7/31/12 as of model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 510 (Audio 20 with CD changer) without CODE 523 (Audio 20 CD)

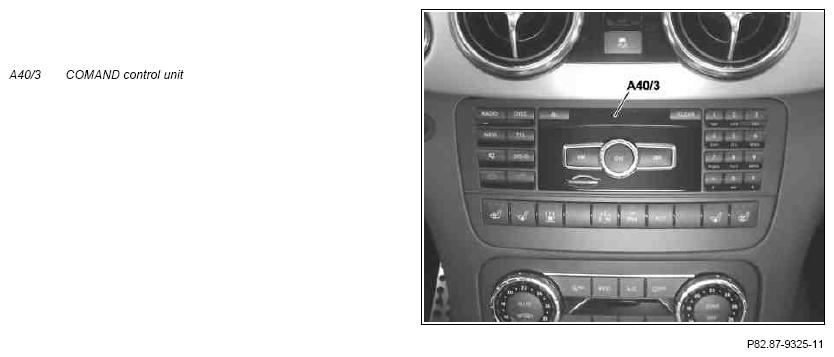

Fig 1: Identifying Retrofit Comand APS With DVD Changer

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove COMAND controller unit (A40/3) with single DVD drive (with navigation)
			AR82.60-P-7502CY
		Install new COMAND controller unit (A40/3) with DVD changer
2	Install in the reverse order
3	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
4	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Delete:  Code (527) COMAND APS with single DVD drive (with navigation) Add:  Code (512) COMAND APS with DVD changer
5	Document retrofitted equipment through VeDoc	Attach "COMAND APS with DVD changer retrofitted, as per AN82.85-P-0004CYC " note under the field organization texts to design group 82.
6	Perform variant coding with XENTRY using the software calibration number (SCN)	Listed control unit must be SCN coded with the Diagnosis Assistance System: "COMAND controller unit (A40/3) with DVD changer"
7	Disconnect STAR DIAGNOSIS
			AD00.00-P-2000-04A
8	Perform function test	See operator's manual for COMAND controller unit (A40/3) incl. DVD changer.
