Remove/install 360° front camera - AR54.30-P-3001CY
MODEL 204.9 with CODE 501 (360° camera)
MODIFICATION NOTES
| 21.8.15 | "Perform initial startup of front 360° camera using the diagnostic system" added. | Operation step 8 |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||

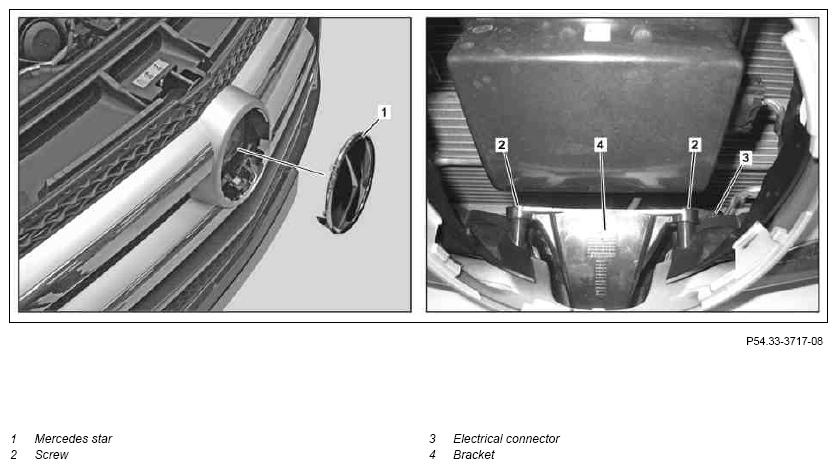

| 2 | Unfasten the Mercedes star (1) at the 3 catch hooks on the inner side of the radiator trim and take it off | ||
| 3 | Remove upper radiator trim | ||
| 4 | Release and disconnect electrical connection (3) | ||
| 5 | Unscrew bolts (2) | ||
| 6 | Remove front 360° camera and holder (4) | Handle front 360° camera with care. The lens will otherwise be damaged. The lens will otherwise be damaged. |
|
| 7 | Install in the reverse order | ||
| 8 | Perform initial startup of front 360° camera using the diagnostic system | If the front 360° camera was replaced. | |
| AD00.00-P-2000-04A | |||
| 9 | Calibrate front 360° camera using the diagnostic system | AD00.00-P-2000-04A |
