Remove/install 360° camera control unit - AR54.30-P-3004CY
MODEL 204.9 with CODE 501 (360° camera)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Read out data from 360° camera control unit (N148) with diagnostic system | When replacing 360° camera control unit (N148) | |
| AD00.00-P-2000-04A | |||
| 2 | Remove paneling on left side in trunk | ||

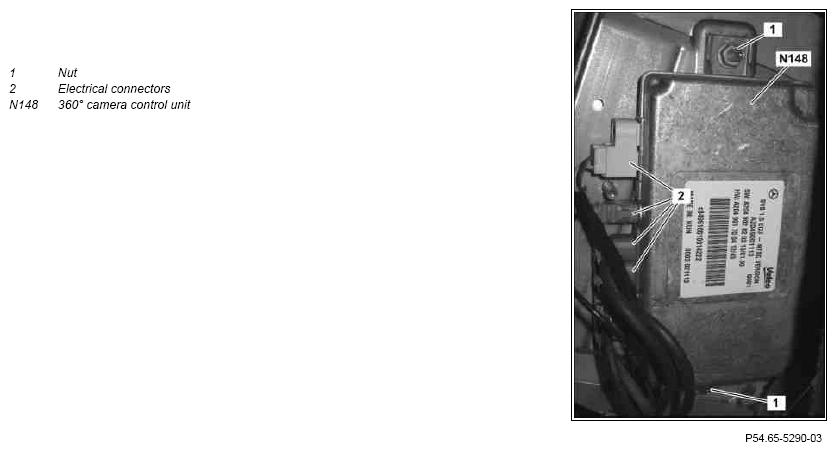

| 3 | Unscrew nuts (1) | ||
| 4 | Disconnect electrical connections (2) at 360° camera control unit (N148) | ||
| 5 | Install in the reverse order | ||
| 6 | Transfer data read out from 360° camera control unit (N148) with diagnostic system When replacing 360° camera control unit (N148) | ||
| AD00.00-P-2000-04A |
