Relay Assignment Of Fuse And Relay Box In Trunk - GF54.15-P-1257-04CE

MODEL 204.0/2 as of model year 2009

MODEL 204.3

MODEL 204.9

up to 31.5.09

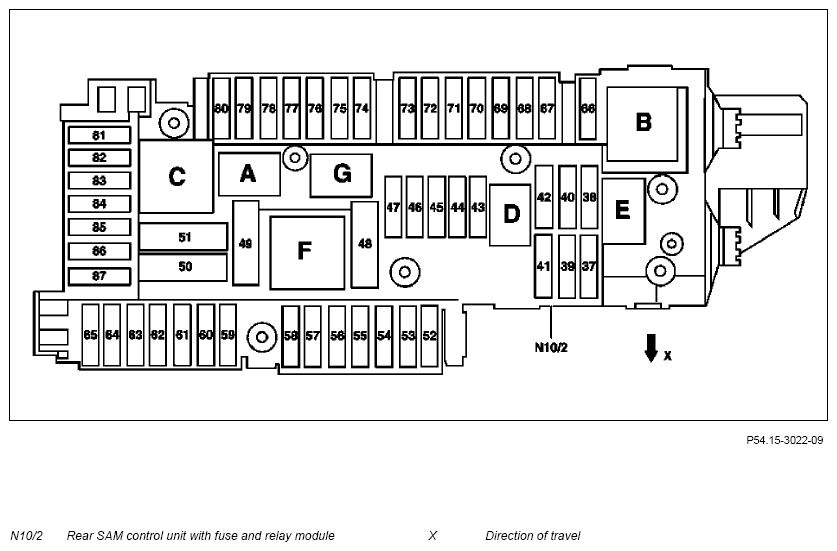

Fig 1: Identifying Fuse And Relay Box In Trunk

As of 1.6.09

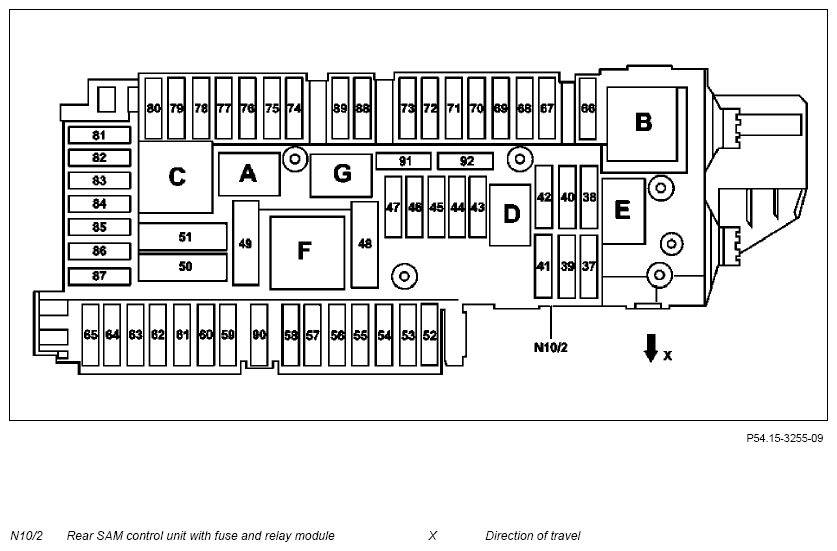

Fig 2: Identifying Fuse And Relay Box In Trunk

Slot	Designation
A	Circuit 15 relay (N10/2kA)
B	Circuit 15R relay (1) (N10/2kB)
C	Rear window heater relay (N10/2kC)
D	Valid for diesel engine: Fuel pump relay (N10/2kD)
E	Valid for model 204.2/9: Liftgate windshield wiper relay (N10/2kE)
F	Valid without code (275) Memory package (driver seat, steering column, mirrors): Seat adjustment relay (N10/2kF)
G	Circuit 15R relay (2) (N10/2kG)
