Relay Assignment Of Fuse And Relay Box In Left Side Of Engine Compartment - GF54.15-P-1257-03CE

MODEL 204.0/2 as of model year 2009

MODEL 204.3

MODEL 204.9

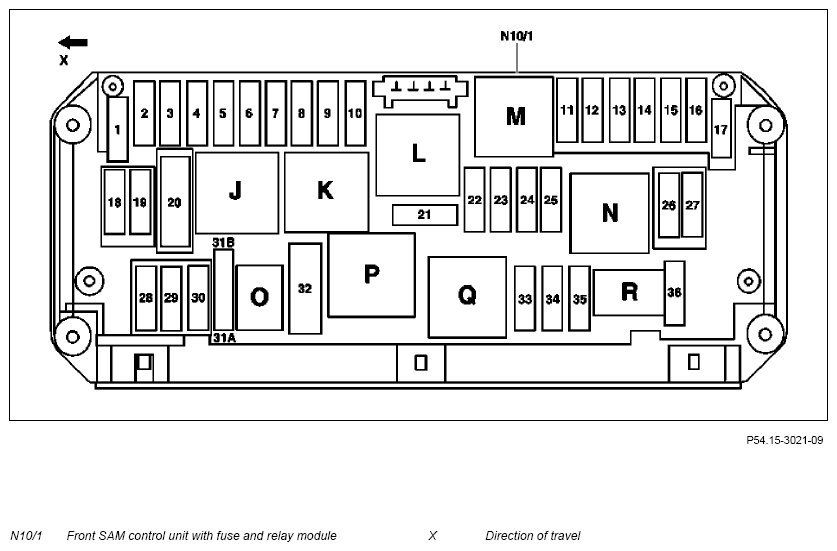

Fig 1: Identifying Fuse And Relay Box In Engine Compartment Left Side

Slot	Designation
J	Circuit 15 relay (N10/1kJ)
K	Circuit 15R relay (N10/1kK)
L	Reserve relay (N10/1kL)
M	Starter circuit 50 relay (N10/1kM)
N	Engine circuit 87 relay (N10/1kN)
O	Horn relay (N10/1kO)
P	Valid for engine 156, 272, 276:  Secondary air injection relay (N10/1kP)
Q	Valid for code (B03) ECO start/stop function:  Oil cooler fan motor relay (N10/1)
R	Chassis circuit 87 relay (N10/1kR)
