Fuse And Relay Box, As-Built Configuration - GF54.15-P-0800CE
MODEL 204.0/2 as of model year 2009
MODEL 204.3
MODEL 204.9

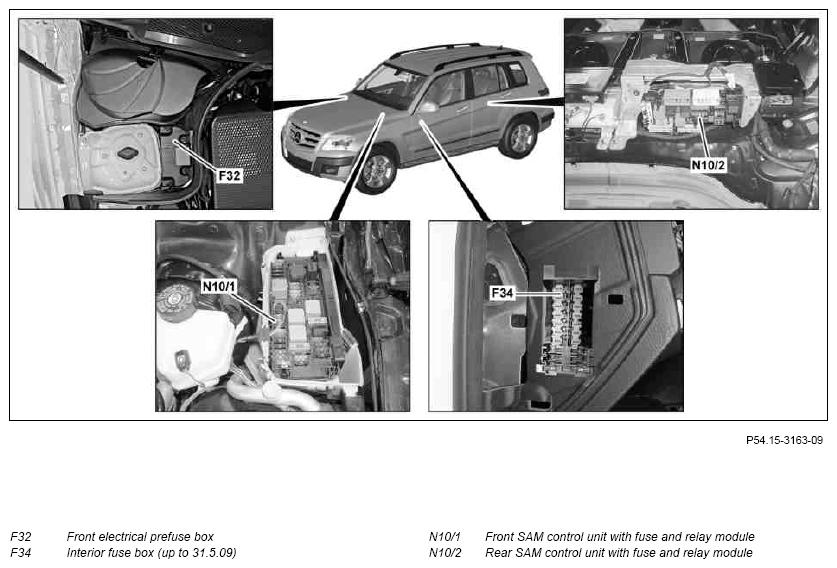

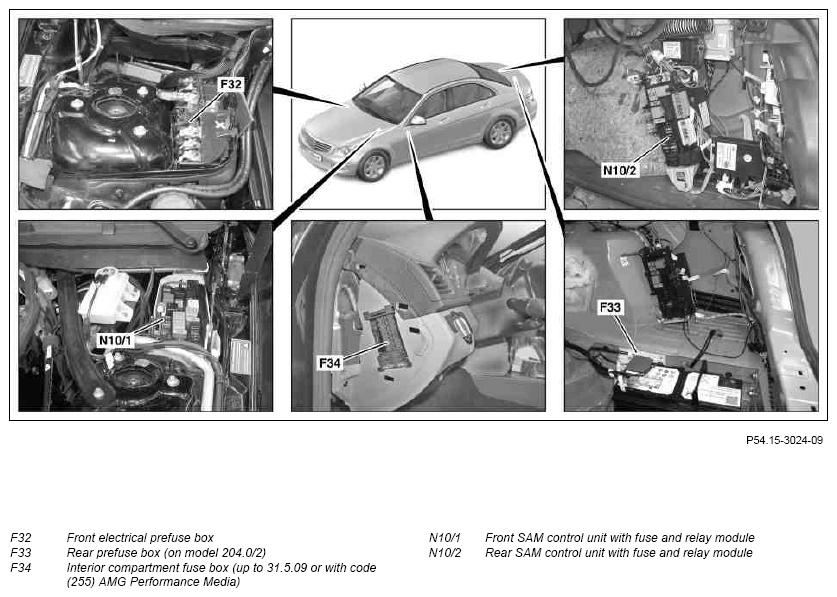

Model 204.0/2/3; illustration shows model 204.0
Model 204.9
Great Britain version; illustration shows model 204.0

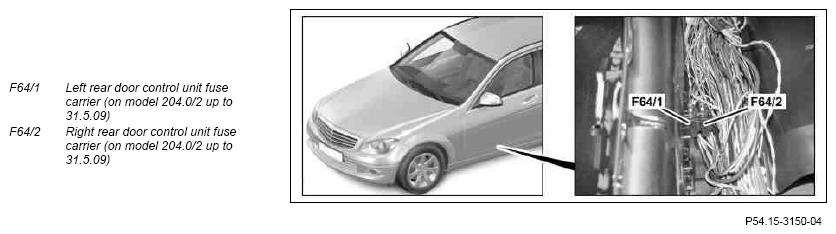

The rear door control unit fuse carrier is on the driver's side in the main wiring harness.
The left rear door control unit fuse carrier protects the left rear door control unit (N693), and the right rear door control unit fuse carrier protects the right rear door control unit (N694) with I = 30 amps.
| Fuse assignment of front prefuse box | MODEL 204.0/2 as of model year 2009 up to model year 2010MODEL 204.9 up to model year 2010 F32 |
GF54.15-P-1256-07CE | |
| Fuse assignment of front prefuse box | MODEL 204.0/2 as of model year 2010MODEL 204.3MODEL 204.9 as of model year 2010 F32 |
GF54.15-P-1256-07CEA | |
| Fuse assignment of rear prefuse box | MODEL 204.0/2 as of model year 2009 F33 |
GF54.15-P-1256-08CE | |
| Fuse assignment of fuse box in left of cockpit | MODEL 204.0/2/3 as of model year 2013 with CODE 255 (AMG Performance Media) MODEL 204.0/2 as of model year 2009 up to model year 2010 without CODE 255 (AMG Performance Media) MODEL 204.9 up to model year 2010 F34 |
GF54.15-P-1256-13CE | |
| Fuse assignment of fuse and relay box in left engine compartment | N10/1 | GF54.15-P-1256-03CE | |
| Fuse assignment of fuse and relay box in trunk | N10/2 | GF54.15-P-1256-06CE | |
| Relay assignment of fuse and relay box in left side of engine compartment | N10/1 | GF54.15-P-1257-03CE | |
| Relay assignment of fuse and relay box in trunk | N10/2 | GF54.15-P-1257-04CE |
