DC/AC Converter Control Unit, Component Description - GF54.21-P-4127GD
MODEL 204.9 with CODE (U80) 115 V power outlet in load compartment with CODE (460) Canada version with CODE (494) USA version
MODEL 204.0 with CODE (U80) 115 V power outlet with CODE (460) Canada version with CODE (494) USA version as of model year 2011/YoM 10
Illustrated on model 204.9
Location

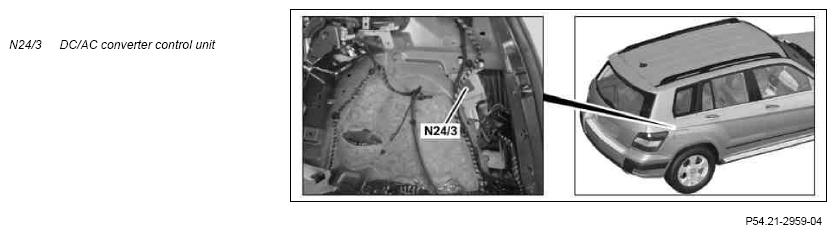

The DC/AC converter control unit in model 204.9 is located in the trunk behind the right luggage compartment lining.
On model 204.0 the DC/AC converter control unit is located in the center console under the trim.
Task
The DC/AC converter control unit converts the DC voltage of the on-board electrical system into a 115 V AC voltage. The 115 V (X58/34) power outlet enables small electrical devices to be connected that require an AC voltage (e.g. video games consoles, cell phone chargers). The maximum available electrical continuous load is P = 150 W, for a short-term up to P = 300 W is permissible for t = 2 s.
The rear SAM control unit with fuse and relay module (N10/2) supplies power to the microswitch power outlet (X58/34s1) in the 115 V power outlet. If a consumer is now connected to the 115 V power outlet, this voltage is switched through to the control input for the DC/AC converter control unit.
| Wiring diagram control unit DC/AC converter | PE54.10-P-2103-97FAA |
