Component Description For Instrument Cluster - GF54.30-P-6000CE

MODEL 204.0/2 as of model year 2009

MODEL 204.3

MODEL 204.9

Model 204.0/2/3/9 (except model 204.077/277/377) as of 1.6.12 without code (442) Comfort multifunction steering wheel shown on transmission 722

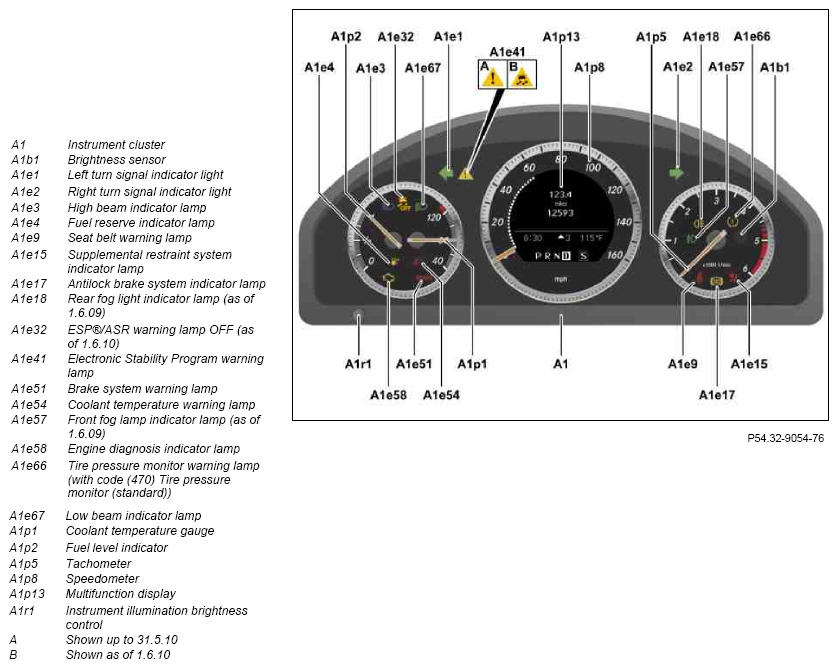

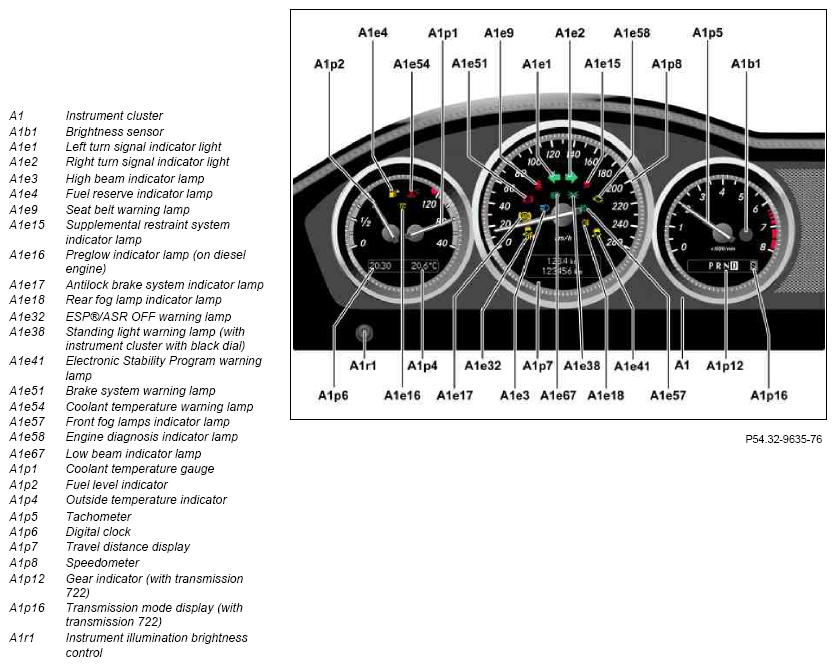

Fig 1: Identifying Instrument Cluster Components - Shown On Model 204.0/2/3/9

Model 204.0/2/3/9 (except model 204.077/277/377) as of 1.6.12 with code (442) Comfort multifunction steering wheel shown on transmission 722

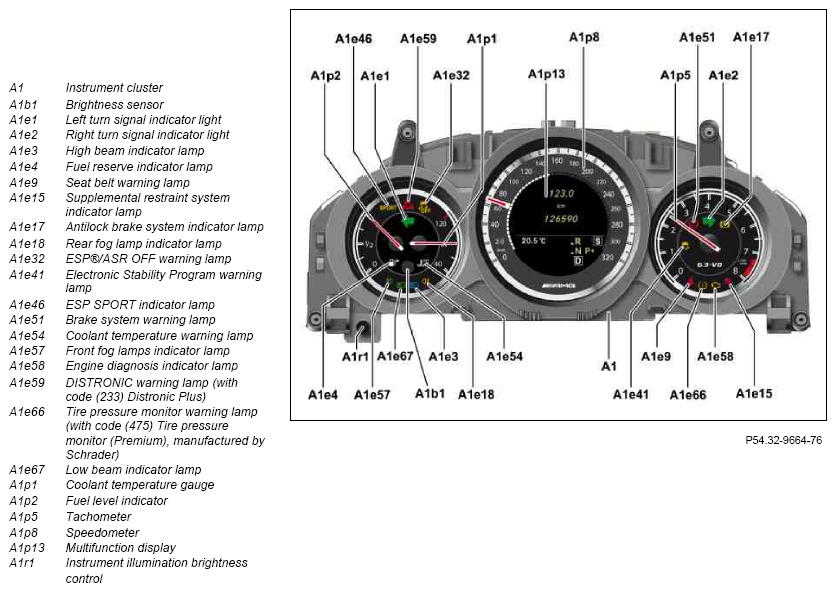

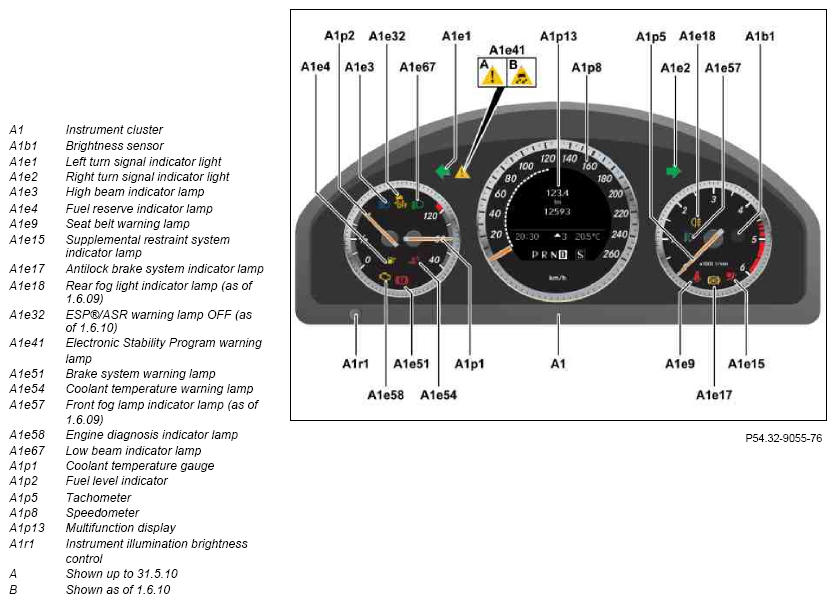

Fig 2: Identifying Instrument Cluster Components - Shown On Model 204.0/2/3/9

Model 204.0/2 (except model 204.077/277) as of 1.3.11 up to 31.5.12, model 204.3 (except model 204.377) up to 31.5.12 without code (442) Comfort multifunction steering wheel shown on gasoline engine and transmission 722

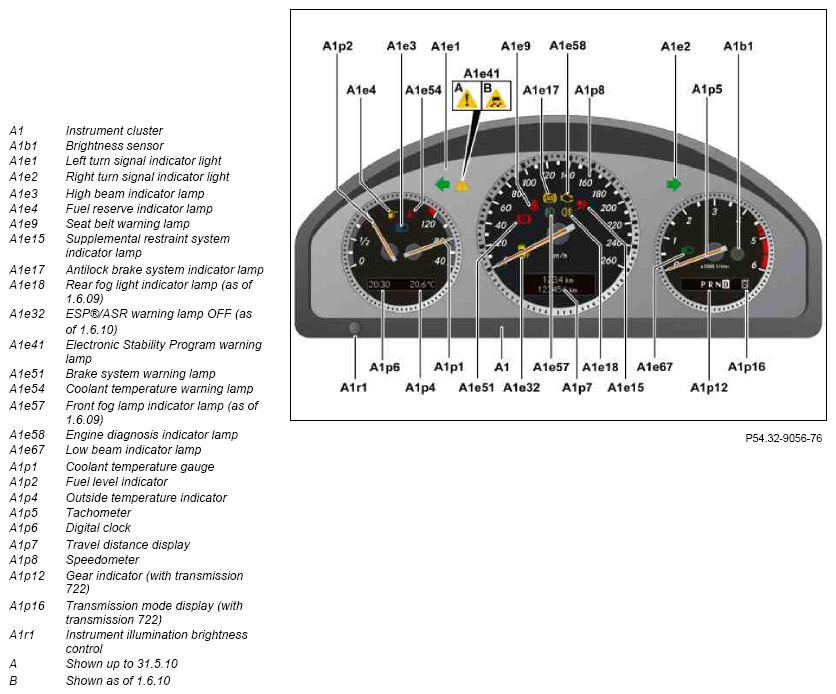

Fig 3: Identifying Instrument Cluster Components - Shown On Model 204.0/2

Model 204.0/2 (except model 204.077/277) as of 1.3.11 up to 31.5.12, model 204.3 (except model 204.377) up to 31.5.12 with code (442) Comfort multifunction steering wheel shown on gasoline engine and transmission 722

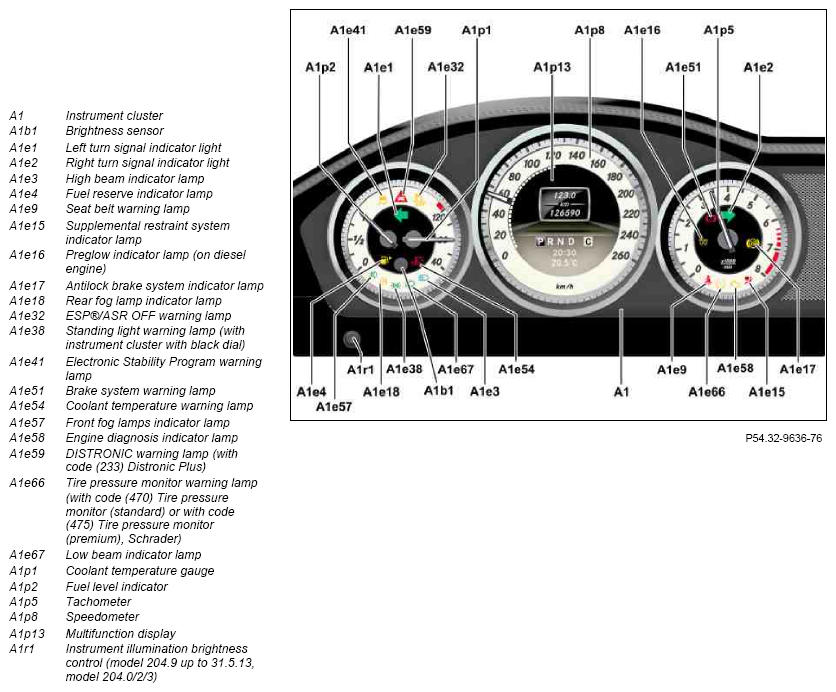

Fig 4: Identifying Instrument Cluster Components - Shown On Model 204.0/2

Model 204.0/2 (except model 204.077/277) up to 28.2.11, model 204.9 up to 31.5.12 without code (442) Comfort multifunction steering wheel shown on gasoline engine and transmission 722

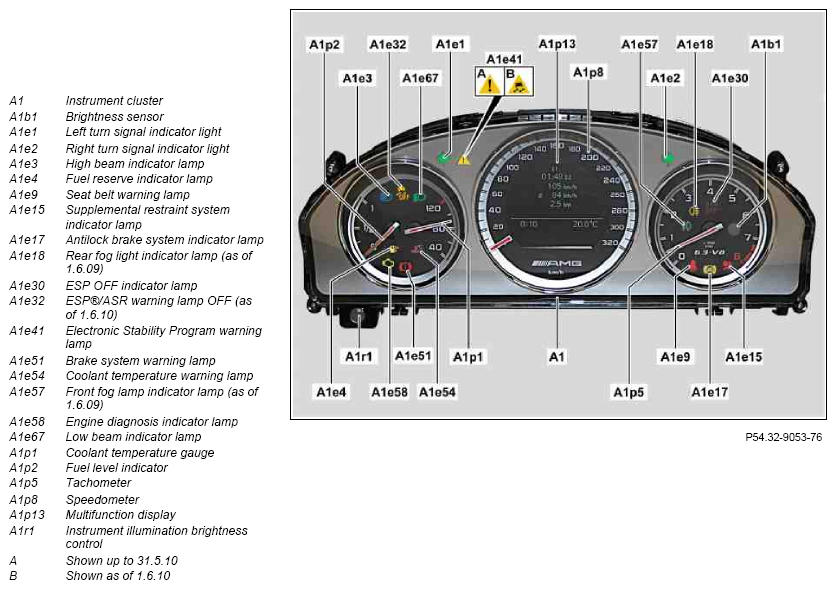

Fig 5: Identifying Instrument Cluster Components - Shown On Model 204.0/2

Model 204.0/2 (except model 204.077/277) up to 28.2.11 with code (442) Comfort multifunction steering wheel with gasoline engine shown on transmission 722 and without code (494) USA version

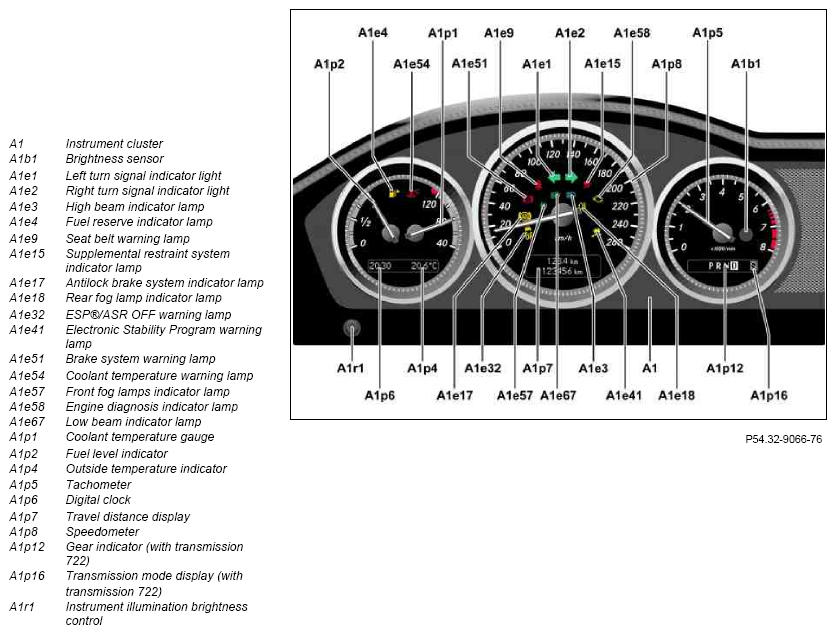

Fig 6: Identifying Instrument Cluster Components - Shown On Model 204.0/2

Model 204.0/2 (except model 204.077/277) up to 28.2.11 with code (442) Comfort multifunction steering wheel shown on gasoline engine and transmission 722 and code (494) USA version, model 204.9 up to 31.5.12

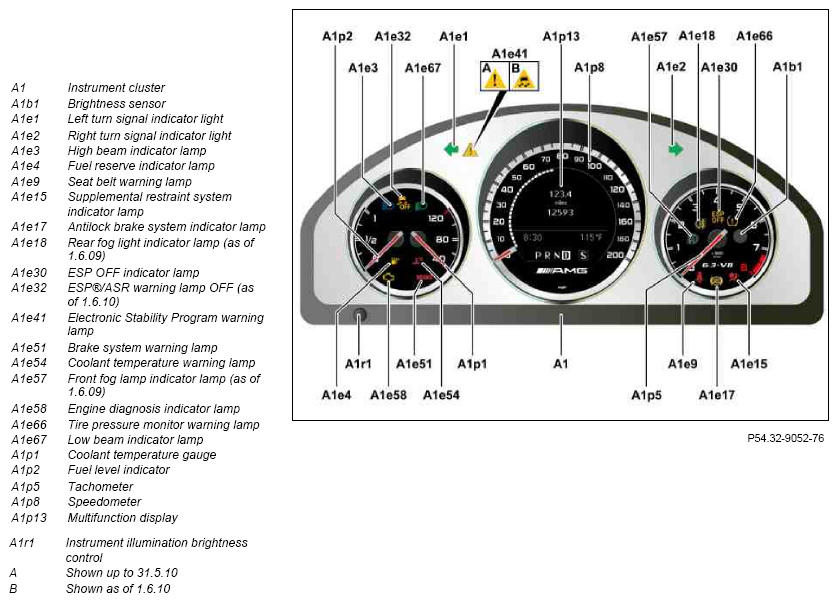

Fig 7: Identifying Instrument Cluster Components - Shown On Model 204.0/2

Model 204.077/277 as of 1.6.11, model 204.377

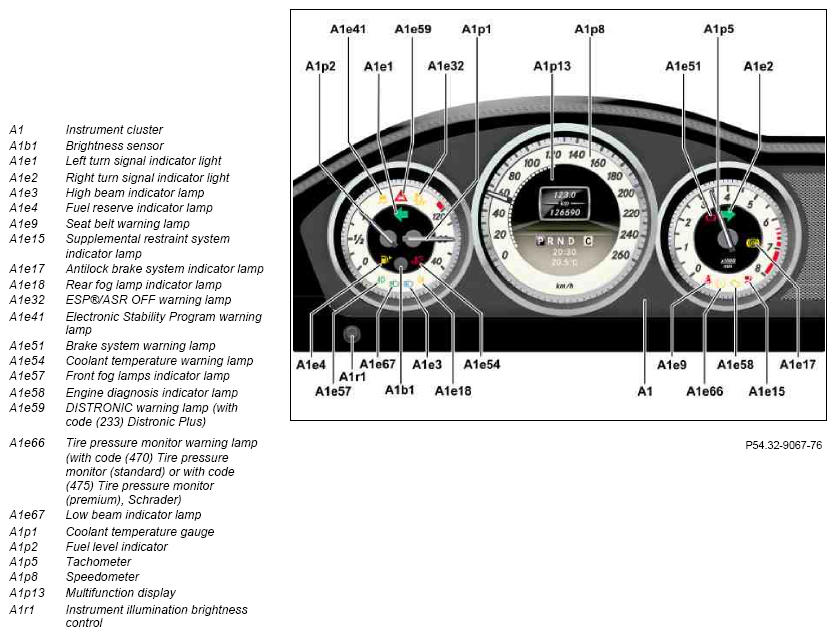

Fig 8: Identifying Instrument Cluster Components - Shown On Model 204.077/277

Model 204.077 up to 31.5.11 without code (494) USA version, model 204.277 up to 31.5.11

Fig 9: Identifying Instrument Cluster Components - Shown On Model 204.077

Model 204.077 up to 31.5.11 with code (494) USA version

Fig 10: Identifying Instrument Cluster Components - Shown On Model 204.077

Location

The instrument cluster is located in the dashboard on the driver-side.

Task

The instrument cluster has the following tasks:

Reading in of signals
Evaluation of input factors
Actuation of components
Output of acoustic and information warnings
Output of signals

Reading in of signals

The instrument cluster reads in the input factors via the following connections:

Interior CAN (CAN B)
Chassis CAN (CAN E)

Interior CAN

The signals are read in by the instrument cluster over the interior CAN. The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Chassis CAN

The signals are read in by the instrument cluster via the chassis CAN. The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

The instrument cluster directly actuates all internal actuators (e.g. indicator and warning lamps, stepper motors of displays, multifunction display) as well as the instrument illumination.

Output of acoustic and information warnings

To output the warning and information sounds requested by the systems installed in the vehicle, the instrument cluster actuates the internal speaker ("chime") or the warning buzzer (A1h1).

The "audible turn signal indicator" is acoustically realized by actuating the acoustic turn signal lights function check (A1h2).

Output of signals

The signals are issued over the following connections:

Interior CAN
Chassis CAN

Interior CAN

The signals are sent by the instrument cluster over the interior CAN. The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Chassis CAN

The signals are sent by the instrument cluster via the chassis CAN. The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Wiring diagram for instrument cluster (IC) control unit

PE54.30-P-2101-97FAA
