| A0 |
Color code key |
40L |
| A98 |

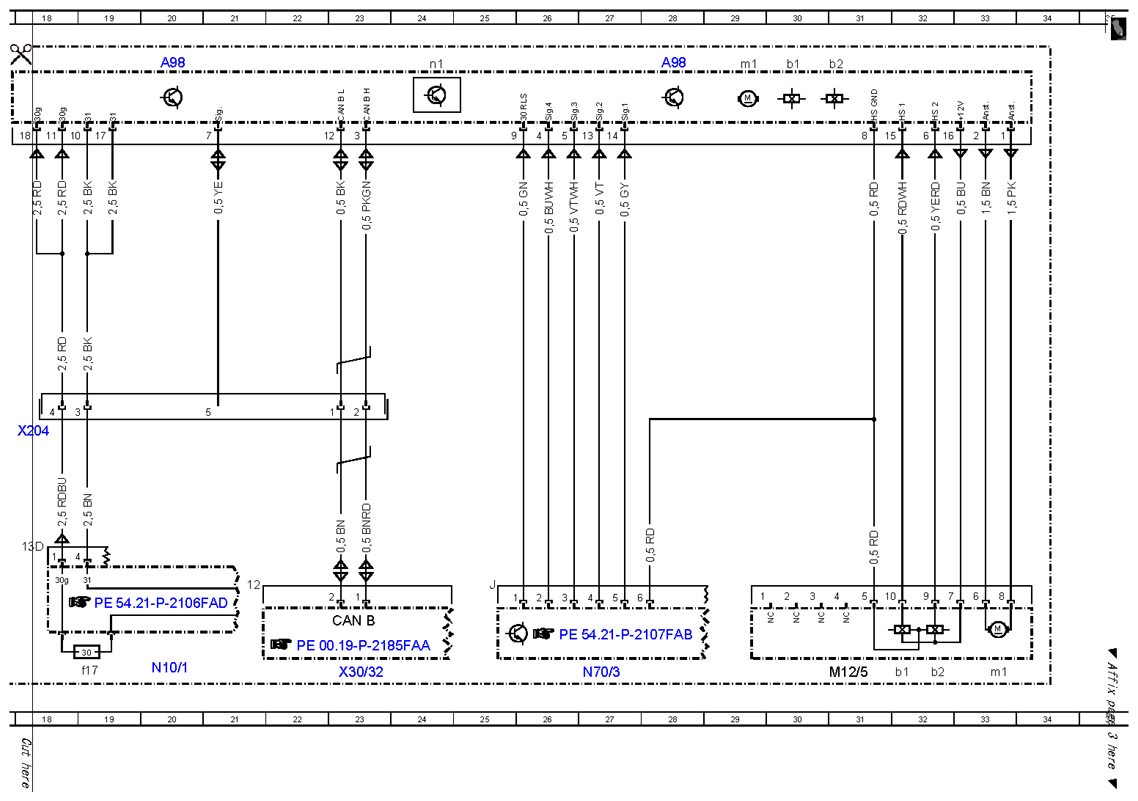

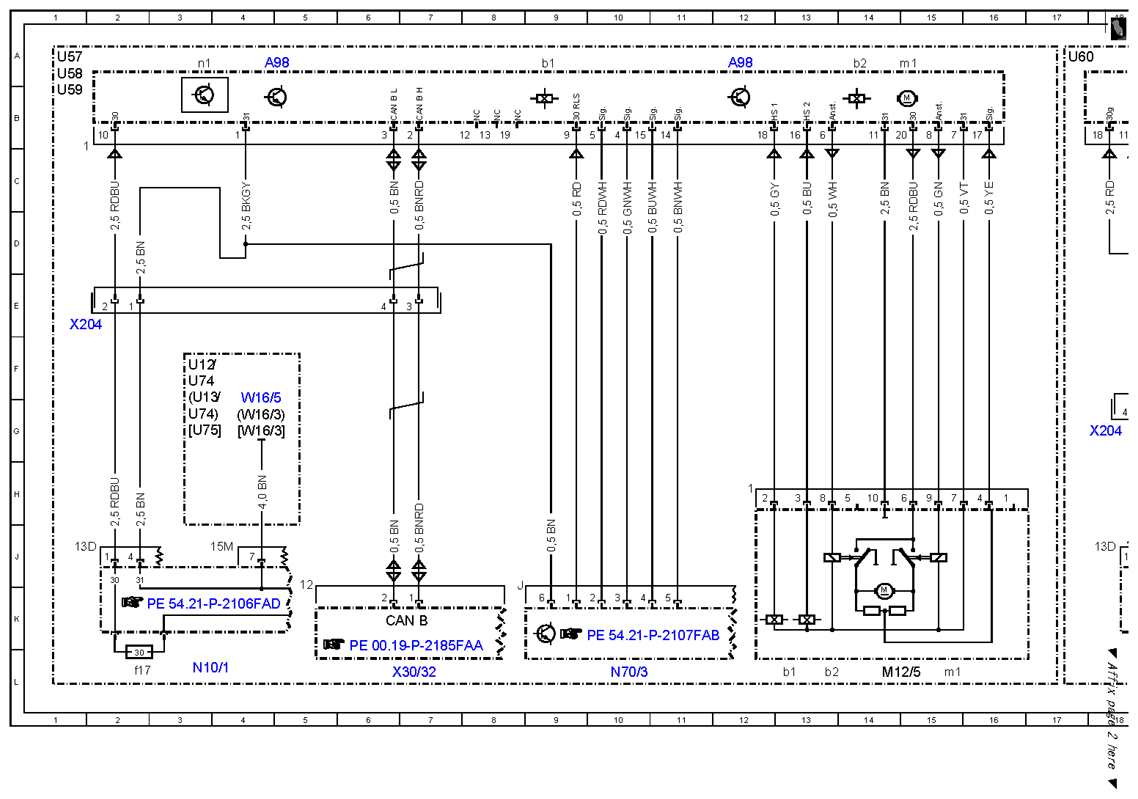

Panoramic sliding roof control module |
4A |
| A98 |
Panoramic sliding roof control module |
12A |
| A98 |
Panoramic sliding roof control module |
20A |
| A98 |
Panoramic sliding roof control module |
28A |
| A98b1 |
Hall sensor 1, panoramic sliding roof |
9A |
| A98b1 |
Hall sensor 1, panoramic sliding roof |
30A |
| A98b2 |
Hall sensor 2, panoramic sliding roof |
14A |
| A98b2 |
Hall sensor 2, panoramic sliding roof |
31A |
| A98m1 |
Panoramic sliding roof motor |
15A |
| A98m1 |
Panoramic sliding roof motor |
29A |
| A98n1 |
Panoramic sliding roof control unit |
3A |
| A98n1 |
Panoramic sliding roof control unit |
24A |
| CAN B |
Interior CAN |
6K |
| CAN B |
Interior CAN |
23K |
| M12/5 |
Panoramic sliding roof roller sun blind drive unit |
14L |
| M12/5 |
Panoramic sliding roof roller sun blind drive unit |
31L |
| M12/5b1 |
Hall sensor 1, panoramic sliding roof roller sun blind |
13L |
| M12/5b1 |
Hall sensor 1, panoramic sliding roof roller sun blind |
32L |
| M12/5b2 |
Hall sensor 2, panoramic sliding roof roller sun blind |
13L |
| M12/5b2 |
Hall sensor 2, panoramic sliding roof roller sun blind |
32L |
| M12/5m1 |
Panoramic sliding roof roller sun blind motor |
15L |
| M12/5m1 |
Panoramic sliding roof roller sun blind motor |
33L |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1 |
Front SAM control unit with fuse and relay module |
20L |
| N10/1f17 |
Fuse 17 |
2L |
| N10/1f17 |
Fuse 17 |
19L |
| N70/3 |
Overhead control panel electronics |
10L |
| N70/3 |
Overhead control panel electronics |
27L |
| U12 |
Valid for left-hand drive vehicles |
3F |
| U13 |
Valid for right-hand drive vehicles |
3G |
| U57 |
Valid for model 204.2 |
1A |
| U58 |
Valid for model 204.0 |
1A |
| U59 |
Valid for model 204.9 |
1B |
| U60 |
Valid for model 204.3 |
17A |
| U74 |
Valid for diesel engines |
3G |
| U74 |
Valid for diesel engines |
3F |
| U75 |
Valid for gasoline engines |
3G |
| W16/3 |
Left major assembly compartment ground point |
4G |
| W16/3 |
Left major assembly compartment ground point |
4G |
| W16/5 |
Left major assembly compartment electronics ground point |
4G |
| X204 |
Panoramic sliding roof electrical connector |
18G |
| X204 |
Panoramic sliding roof electrical connector |
2E |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
7L |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
23L |
