Remove/Install Rear Ashtray - AR68.20-P-2230CW

MODEL 204, 207 with CODE (301) Ashtray package/smoker package

MODIFICATION NOTES

2.3.10

This document has been replaced by a document with an increased number of illustrations

			OV00.01-P-1901-07A
1	Remove rear air nozzle	Do not separate the electrical connectors.
		Model 204	AR83.10-P-4800CW
		Model 207	AR83.10-P-4800EC

Fig 1: Identifying Rear Ashtray Remove/Install Components (1 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Rear Ashtray Remove/Install Components (2 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Rear Ashtray Remove/Install Components (3 Of 4)

Courtesy of MERCEDES-BENZ USA

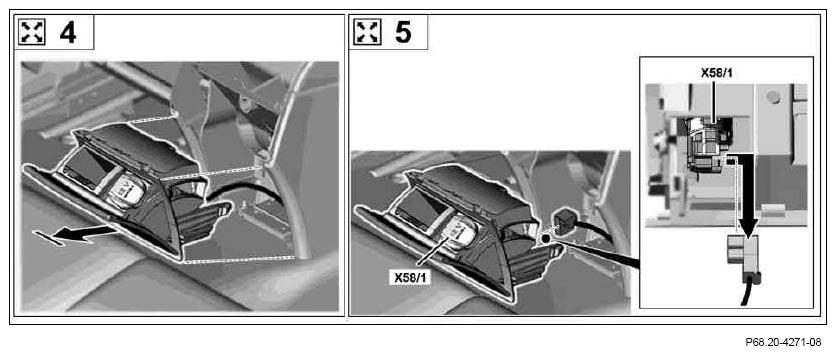

Fig 4: Identifying Rear Ashtray Remove/Install Components (4 Of 4)

Courtesy of MERCEDES-BENZ USA

5 to 1
