| A0 |
Color code key |
23L |
| B86/1 |

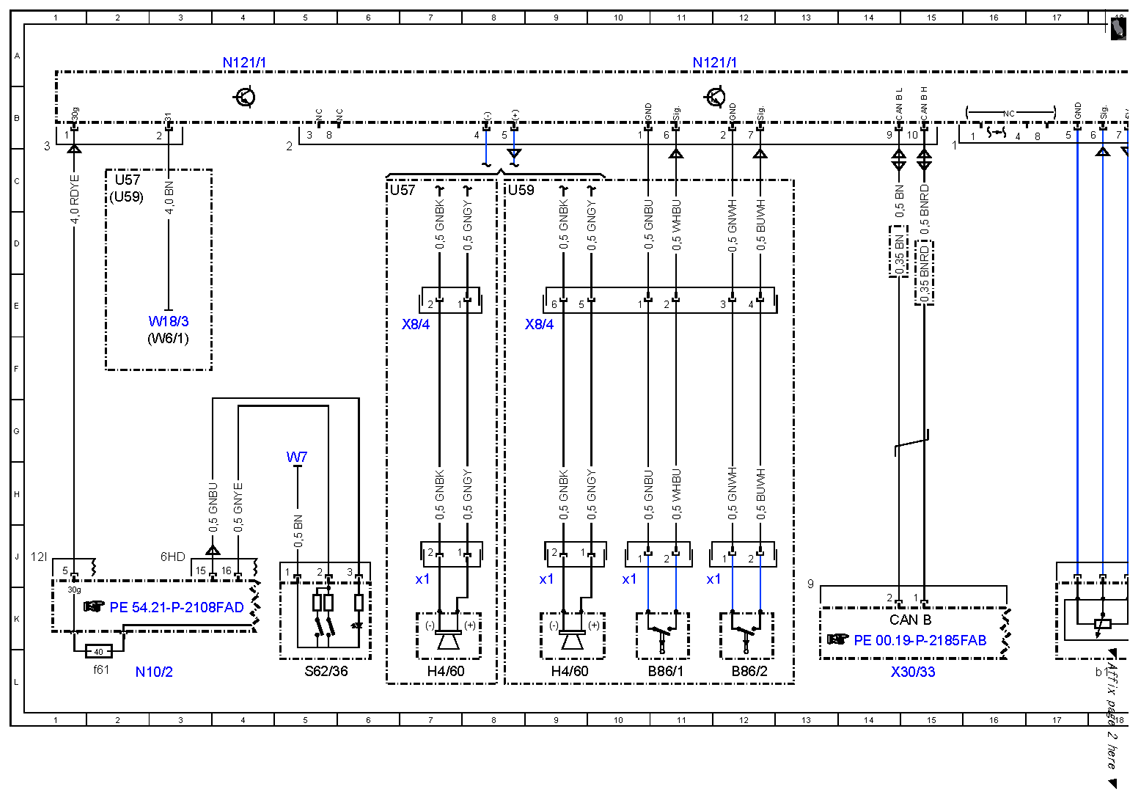

Left tailgate control obstruction sensor strip |
11L |
| B86/1x1 |
Left tailgate control obstruction sensor strip electrical connector |
10J |
| B86/2 |
Right tailgate control obstruction sensor strip |
12L |
| B86/2x1 |
Right tailgate control obstruction sensor strip electrical connector |
11J |
| CAN B |
Interior CAN |
15K |
| H4/60 |
Tailgate control warning buzzer |
7L |
| H4/60 |
Tailgate control warning buzzer |
9L |
| H4/60x1 |
Tailgate control warning buzzer electrical connector |
7J |
| H4/60x1 |
Tailgate control warning buzzer electrical connector |
9J |

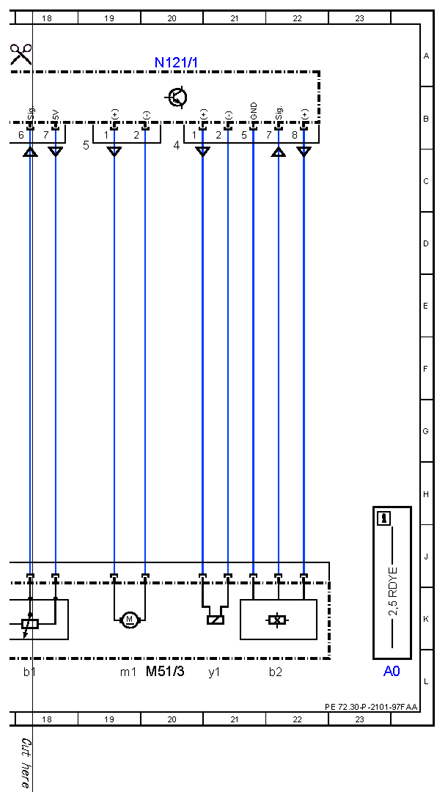

| M51/3 |
Tailgate control drive unit |
20L |
| M51/3b1 |
Tailgate control Hall sensor |
18L |
| M51/3b2 |
Tailgate control position sensor |
22L |
| M51/3m1 |
Tailgate control electric motor |
19L |
| M51/3y1 |
Tailgate control magnetic clutch |
21L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
2L |
| N10/2f61 |
Fuse 61 |
2L |
| N121/1 |
Tailgate control control unit |
4A |
| N121/1 |
Tailgate control control unit |
11A |
| N121/1 |
Tailgate control control unit |
20A |
| S62/36 |
Tailgate control button |
5L |
| U57 |
Valid for model 204.2 |
2C |
| U57 |
Valid for model 204.2 |
6C |
| U59 |
Valid for model 204.9 |
2C |
| U59 |
Valid for model 204.9 |
8C |
| W18/3 |
Left front seat crossmember ground point 2 |
3E |
| W6/1 |
Left taillamp trunk ground point |
3F |
| W7 |
Right wheelhouse trunk ground point |
5H |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
15L |
| X8/4 |
Tailgate electrical connector |
9E |
| X8/4 |
Tailgate electrical connector |
7E |
