| A0 |
Color code key |
48L |

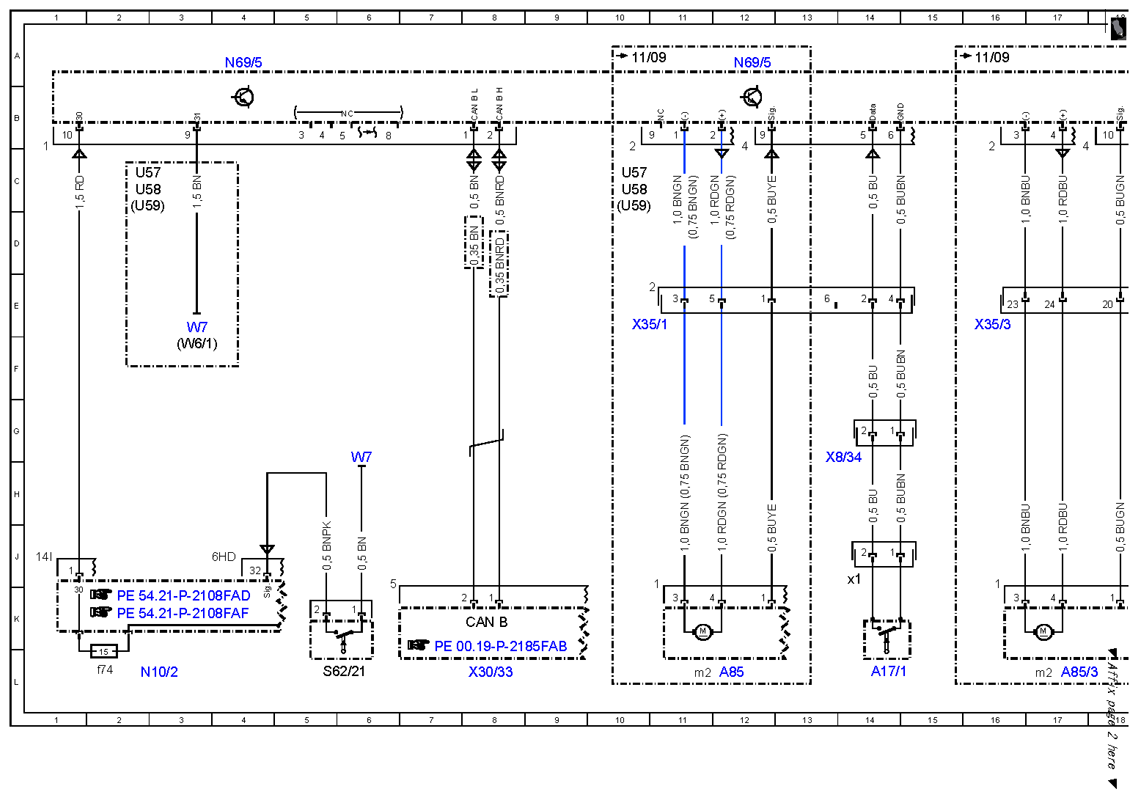

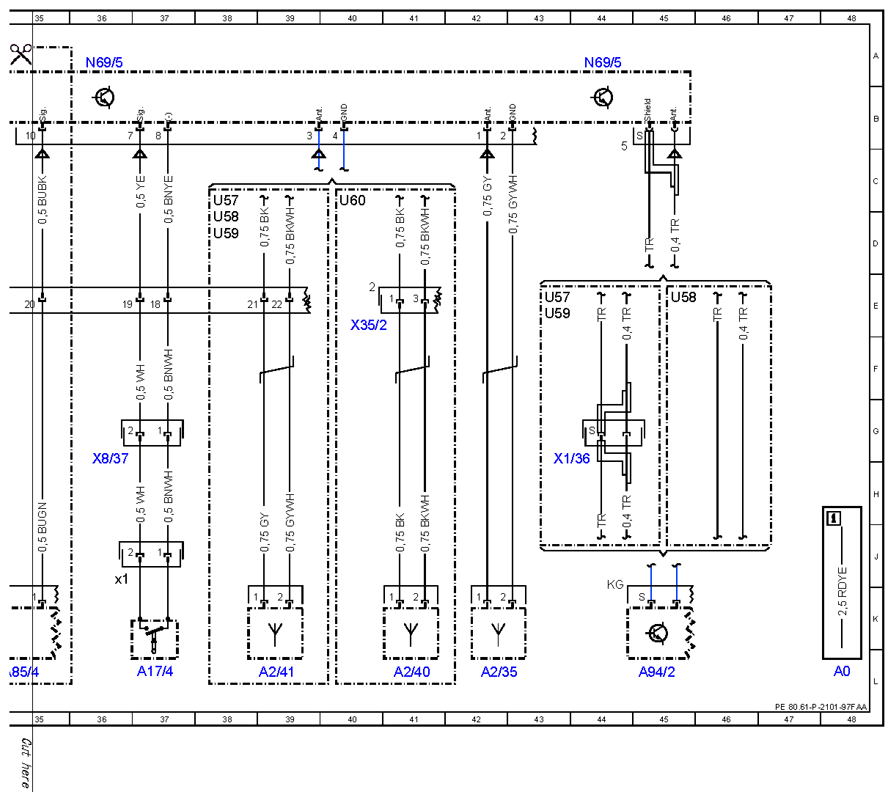

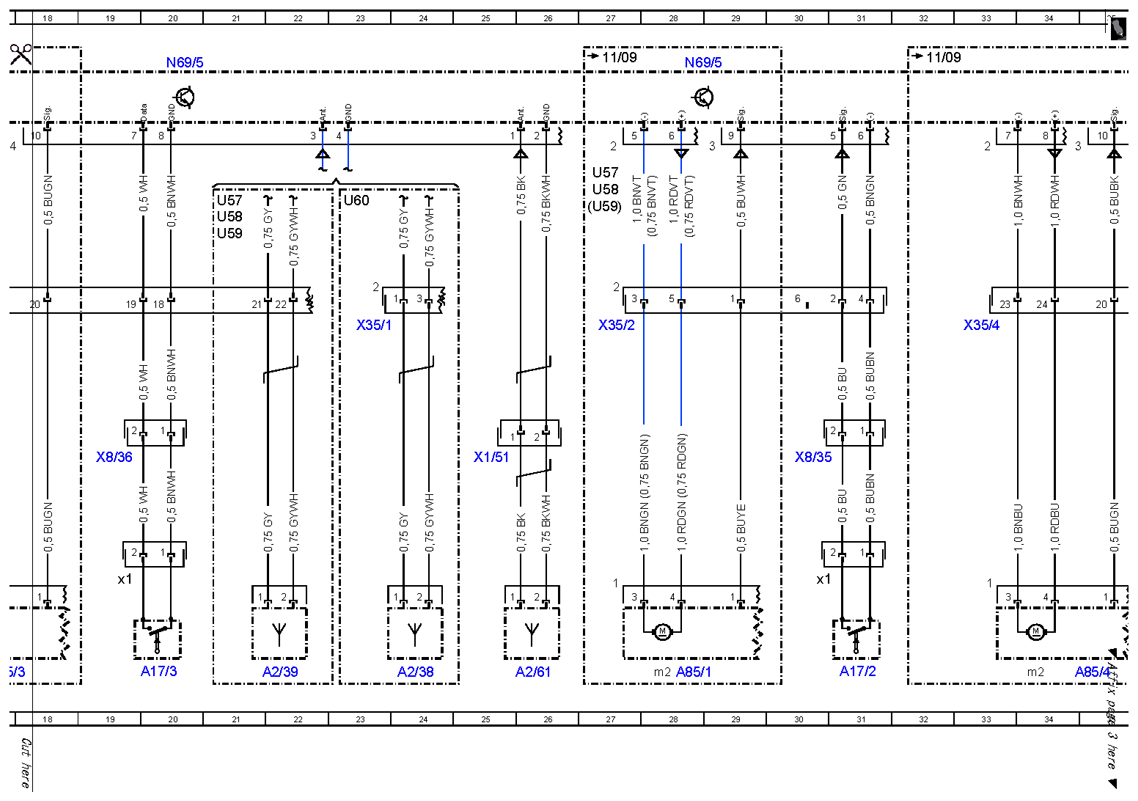

| A17/1 |
Left front KEYLESS GO door handle |
14L |
| A17/1x1 |
Left front KEYLESS GO door handle electrical connector |
14J |
| A17/2 |
Right front KEYLESS GO door handle |
31L |
| A17/2x1 |
Right front KEYLESS GO door handle electrical connector |
30J |
| A17/3 |
Left rear KEYLESS GO door handle |
20L |
| A17/3x1 |
Left rear KEYLESS GO door handle electrical connector |
19J |
| A17/4 |
Right rear KEYLESS GO door handle |
37L |
| A17/4x1 |
Right rear KEYLESS GO door handle electrical connector |
36J |
| A2/35 |
Trunk KEYLESS GO antenna |
42L |
| A2/38 |
Left door KEYLESS-GO antenna |
24L |
| A2/39 |
Left rear door KEYLESS GO antenna |
22L |
| A2/40 |
Right door KEYLESS-GO antenna |
41L |
| A2/41 |
Right rear door KEYLESS GO antenna |
39L |
| A2/61 |
Interior KEYLESS GO antenna |
26L |
| A85 |
Left front door lock |
12L |
| A85/1 |
Right front door lock |
28L |
| A85/1m2 |
Right front door opening assist motor |
28L |
| A85/3 |
Left rear door lock |
17L |
| A85/3m2 |
Left rear door opening assist motor |
17L |
| A85/4 |
Right rear door lock |
35L |
| A85/4m2 |
Right rear door opening assist motor |
34L |
| A85m2 |
Left front door opening assist motor |
11L |
| A94/2 |
TV 2 antenna amplifier |
45L |
| CAN B |
Interior CAN |
8K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f74 |
Fuse 74 |
2L |
| N69/5 |
KEYLESS-GO control unit |
4A |
| N69/5 |
KEYLESS-GO control unit |
12A |
| N69/5 |
KEYLESS-GO control unit |
20A |
| N69/5 |
KEYLESS-GO control unit |
28A |
| N69/5 |
KEYLESS-GO control unit |
36A |
| N69/5 |
KEYLESS-GO control unit |
44A |
| S62/21 |
Trunk lid KEYLESS GO button |
5L |
| U57 |
Valid for model 204.2 |
2C |
| U57 |
Valid for model 204.2 |
10C |
| U57 |
Valid for model 204.2 |
21C |
| U57 |
Valid for model 204.2 |
27C |
| U57 |
Valid for model 204.2 |
38C |
| U57 |
Valid for model 204.2 |
43E |
| U58 |
Valid for model 204.0 |
2C |
| U58 |
Valid for model 204.0 |
10C |
| U58 |
Valid for model 204.0 |
21D |
| U58 |
Valid for model 204.0 |
27C |
| U58 |
Valid for model 204.0 |
38D |
| U58 |
Valid for model 204.0 |
45E |
| U59 |
Valid for model 204.9 |
2C |
| U59 |
Valid for model 204.9 |
10C |
| U59 |
Valid for model 204.9 |
21D |
| U59 |
Valid for model 204.9 |
27C |
| U59 |
Valid for model 204.9 |
38D |
| U59 |
Valid for model 204.9 |
43E |
| U60 |
Valid for model 204.3 |
23C |
| U60 |
Valid for model 204.3 |
40C |
| W6/1 |
Left taillamp trunk ground point |
3F |
| W7 |
Right wheelhouse trunk ground point |
6H |
| W7 |
Right wheelhouse trunk ground point |
3E |
| X1/36 |
Trunk KEYLESS GO antenna electrical connector |
44H |
| X1/51 |
Interior KEYLESS GO antenna electrical connector |
25H |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
8L |
| X35/1 |
Left front door electrical connector |
10E |
| X35/1 |
Left front door electrical connector |
23E |
| X35/2 |
Right front door electrical connector |
27E |
| X35/2 |
Right front door electrical connector |
40E |
| X35/3 |
Left rear door electrical connector |
16E |
| X35/4 |
Right rear door electrical connector |
33E |
| X8/34 |
Left front KEYLESS GO door handle electrical connector |
14H |
| X8/35 |
Right front KEYLESS GO door handle electrical connector |
30H |
| X8/36 |
Left rear KEYLESS GO door handle electrical connector |
19H |
| X8/37 |
Right rear KEYLESS GO door handle electrical connector |
36H |
