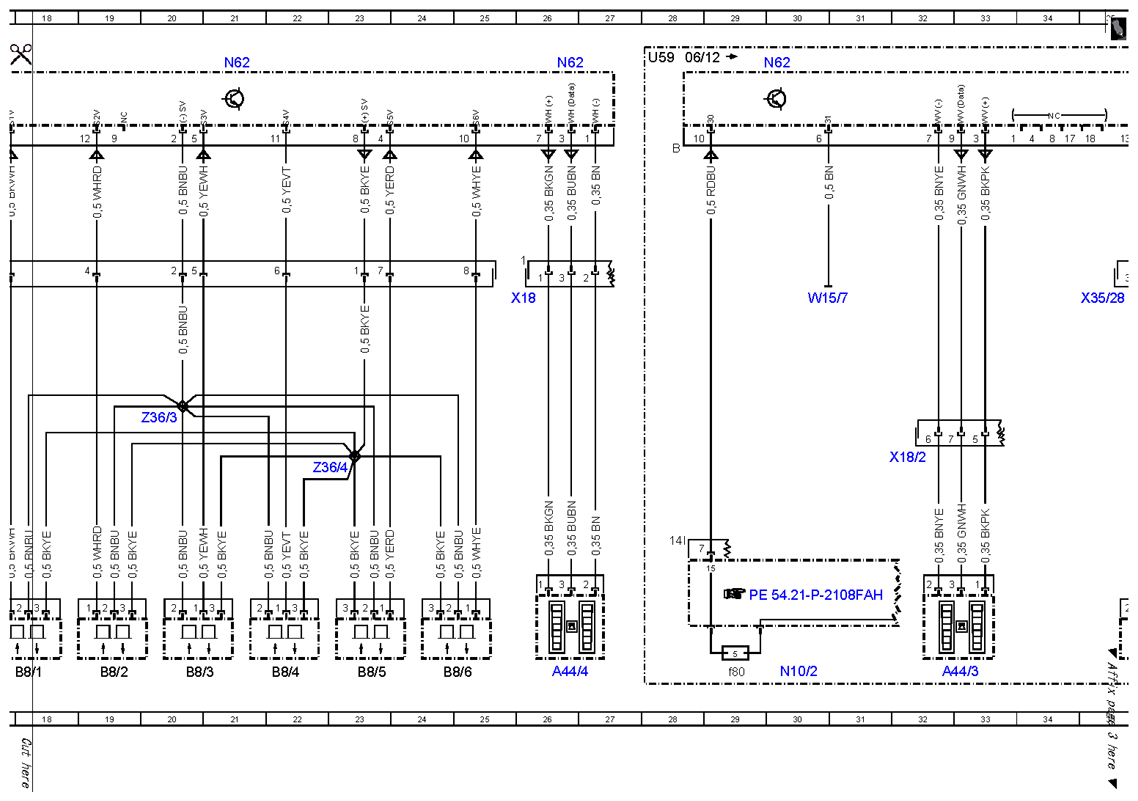

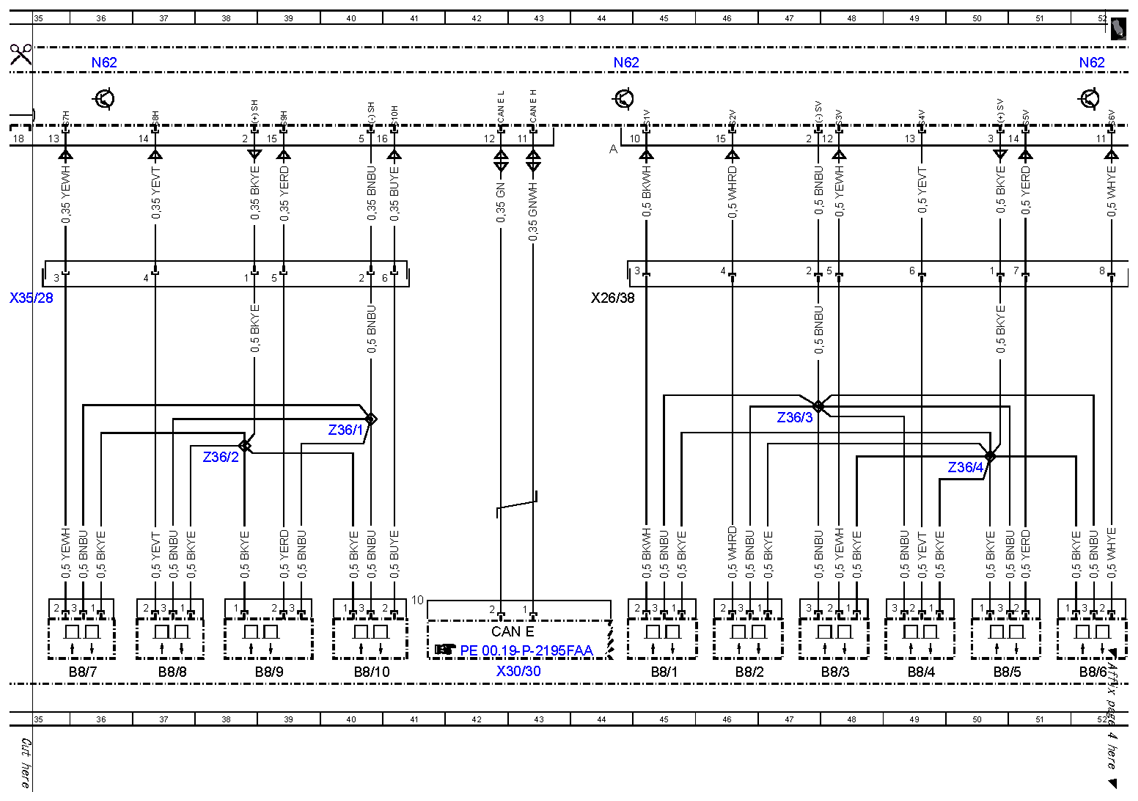

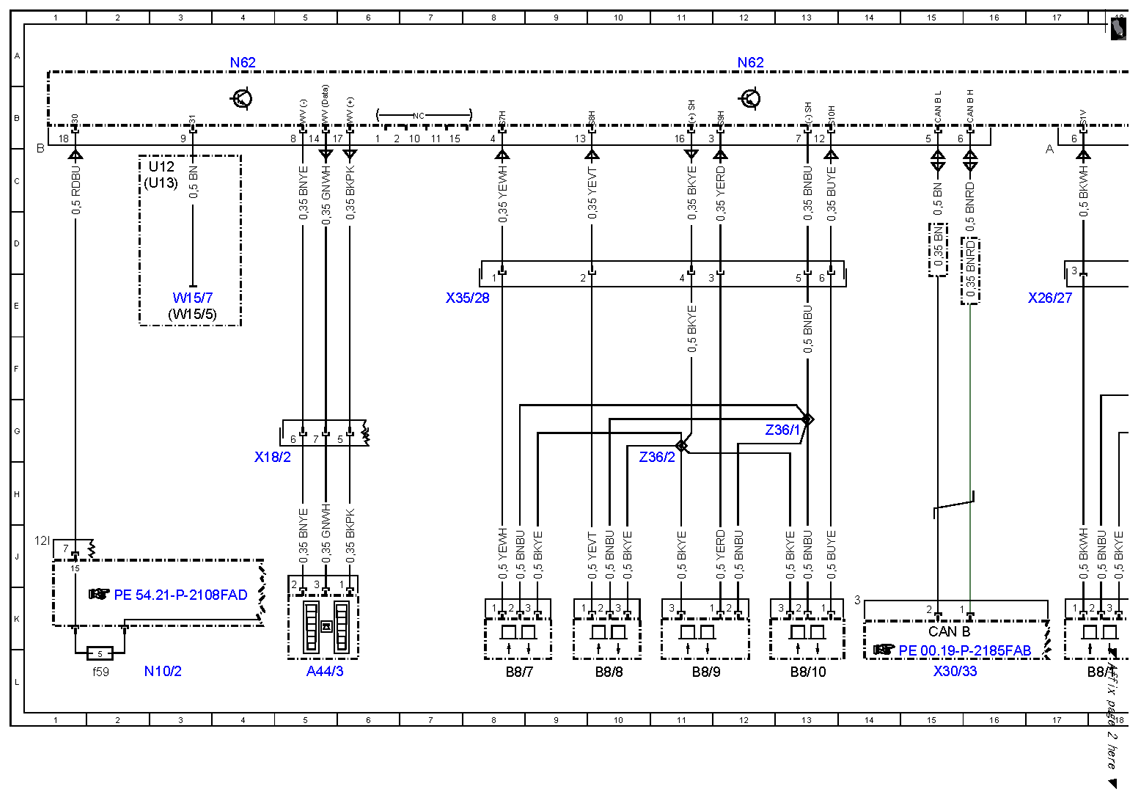

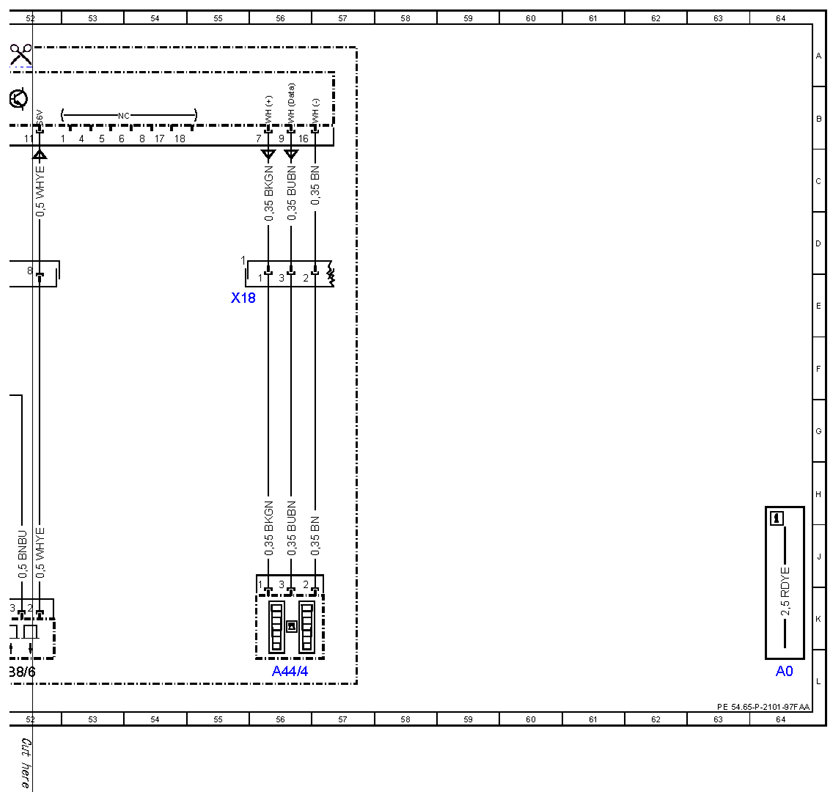

| A0 |
Color code key |
64L |
| A44/3 |
Rear parking system warning indicator |
32L |
| A44/3 |
Rear parking system warning indicator |
5L |
| A44/4 |
Instrument panel parking system warning indicator |
26L |
| A44/4 |
Instrument panel parking system warning indicator |
56L |
| B8/1 |
Outer left front parking system distance sensor |
18L |
| B8/1 |
Outer left front parking system distance sensor |
45L |
| B8/10 |
Outer left rear parking system distance sensor |
13L |
| B8/10 |
Outer left rear parking system distance sensor |
40L |
| B8/2 |
Center left front parking system distance sensor |
19L |
| B8/2 |
Center left front parking system distance sensor |
46L |
| B8/3 |
Inner left front parking system distance sensor |
20L |
| B8/3 |
Inner left front parking system distance sensor |
48L |
| B8/4 |
Inner right front parking system distance sensor |
22L |
| B8/4 |
Inner right front parking system distance sensor |
49L |
| B8/5 |
Center right front parking system distance sensor |
23L |
| B8/5 |
Center right front parking system distance sensor |
50L |
| B8/6 |
Outer right front parking system distance sensor |
24L |
| B8/6 |
Outer right front parking system distance sensor |
52L |
| B8/7 |
Outer right rear parking system distance sensor |
8L |
| B8/7 |
Outer right rear parking system distance sensor |
36L |
| B8/8 |
Inner right rear parking system distance sensor |
10L |
| B8/8 |
Inner right rear parking system distance sensor |
37L |
| B8/9 |
Inner left rear parking system distance sensor |
11L |
| B8/9 |
Inner left rear parking system distance sensor |
39L |
| CAN B |
Interior CAN |
15K |
| CAN E |
Chassis CAN |
42K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
30L |
| N10/2f59 |
Fuse 59 |
2L |
| N10/2f80 |
Fuse 80 |
29L |
| N62 |
Parking system control unit |
12A |
| N62 |
Parking system control unit |
4A |
| N62 |
Parking system control unit |
21A |
| N62 |
Parking system control unit |
26A |
| N62 |
Parking system control unit |
30A |
| N62 |
Parking system control unit |
36A |
| N62 |
Parking system control unit |
44A |
| N62 |
Parking system control unit |
52A |
| U12 |
Valid for left-hand drive vehicles |
2C |
| U13 |
Valid for right-hand drive vehicles |
2C |
| U59 |
Valid for model 204.9 |
28A |
| W15/5 |
Left front footwell ground point |
3E |
| W15/7 |
Right front footwell ground point |
3E |
| W15/7 |
Right front footwell ground point |
30E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
26E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
55E |
| X18/2 |
Interior/roof electrical connector |
4H |
| X18/2 |
Interior/roof electrical connector |
32H |
| X26/27 |
Front bumper PARKTRONIC electrical connector |
17E |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
44E |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
43L |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
15L |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
8E |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
35E |
| Z36/1 |
Rear PARKTRONIC sensors ground line connector sleeve |
13G |
| Z36/1 |
Rear PARKTRONIC sensors ground line connector sleeve |
40G |
| Z36/2 |
Rear PARKTRONIC sensors positive line connector sleeve |
11G |
| Z36/2 |
Rear PARKTRONIC sensors positive line connector sleeve |
38G |
| Z36/3 |
Front PARKTRONIC sensors ground line connector sleeve |
20G |
| Z36/3 |
Front PARKTRONIC sensors ground line connector sleeve |
47G |
| Z36/4 |
Front PARKTRONIC sensors positive line connector sleeve |
23H |
| Z36/4 |
Front PARKTRONIC sensors positive line connector sleeve |
50H |
