Measure front axle carrier (when removed) - AR40.30-P-0450GZ

MODEL 164

Shown on front axle carrier without axle components

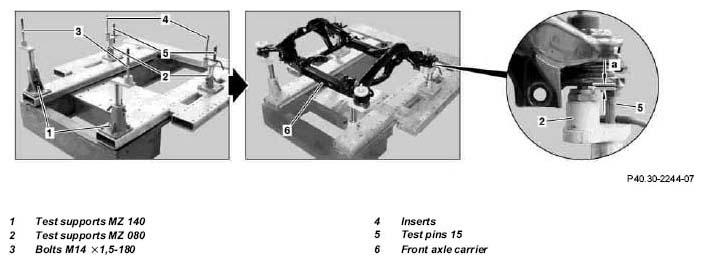

Fig 1: Identifying Test Supports MZ 080/MZ 140, Test Pin 15 And Rear Axle Carrier

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Measure
	The front axle carrier (6) can be measured with or without axle components and drive components
1	Set up Celette straightening bench with module members	See Celette setup plans.	AR60.10-P-1060GZ
2	Mount test supports MZ 080 (2) and test supports MZ 140 (1) on Celette straightening bench, insert bolts M14 x 1.5-180 (3) and insert inserts (4), insert test pins 15 (5) and secure with locking pins B76	See Celette setup plans.	AR60.10-P-1060GZ
3	Place front axle carrier (6) on the test supports MZ 080 (2) and test supports MZ 140 (1)	If it is not possible to put on the front axle carrier (6) without using force, it must be replaced.
4	Check the dimensions (dimension a) between the contact surfaces of the rear mounts of the front axle carrier (6) and the inserts (4)	If one of the permissible dimensions (dimension a) is exceeded, the front axle carrier (6) must be replaced.
			*BE40.30-P-1001-08C
		Feeler gauge	Figure
5	Remove front axle carrier (6), strip down straightening bench

Fig 2: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
