TIREFIT puncture sealing compound - check expiration date - AP40.10-P-4054R

MODEL 163, 168, 169, 170, 245

MODEL 164, 171, 209, 216, 221, 230, 240, 414 except CODE (669) Spare wheel on steel rim

MODEL 209, 211.0 /2 /6, 219.3 except CODE (679) Spare wheel in structural wheel design

MODEL 209, 211.0 /2 /6, 216, 219.3, 221 except CODE (690) Compact spare wheel as emergency wheel

MODEL 203

Model 170, 171, 203, 230

Model 209 without code P98 Black Series

shown on model 230

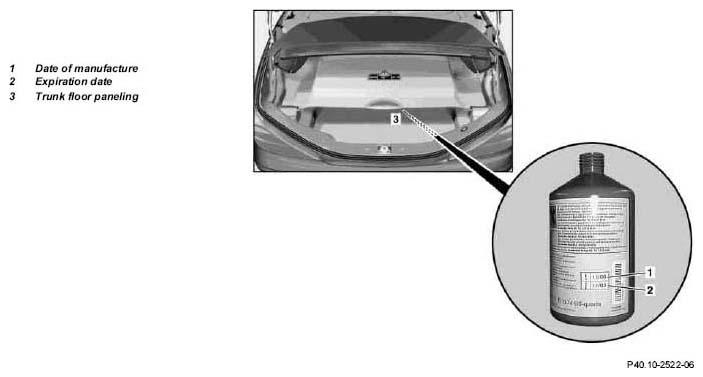

Fig 1: Identifying TIREFIT Puncture Sealing Compound With Manufacture And Expiration Date (Shown On Model 230)

G05258310

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 168

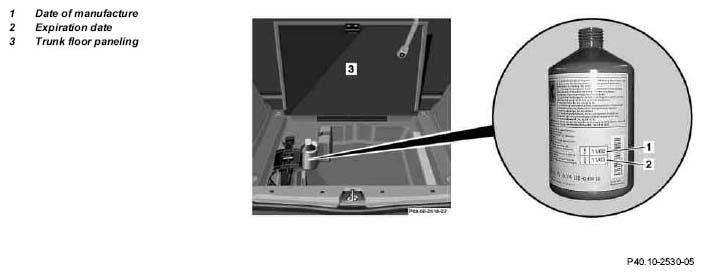

Fig 2: Identifying TIREFIT Puncture Sealing Compound With Manufacture And Expiration Date (Shown On Model 168)

G05258311

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 209 with code P98 Black Series

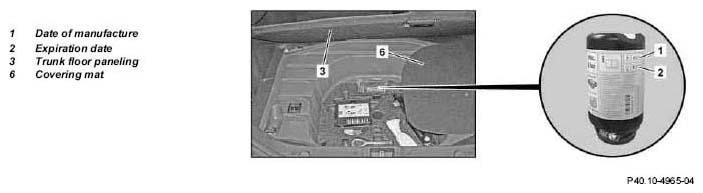

Fig 3: Identifying Trunk Floor Paneling And Covering Mat

G05258312

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 211.0

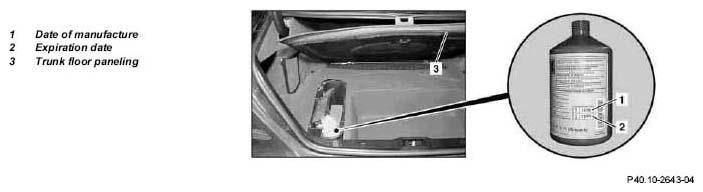

Fig 4: Identifying TIREFIT Puncture Sealing Compound With Manufacture And Expiration Date (Model 211.0)

G05258313

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 164, 211.2/6

Shown on model 211.2

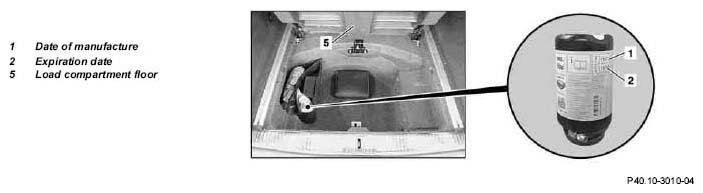

Fig 5: Identifying TIREFIT Puncture Sealing Compound With Manufacture And Expiration Date (Shown On Model 211.2)

G05258314

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 240

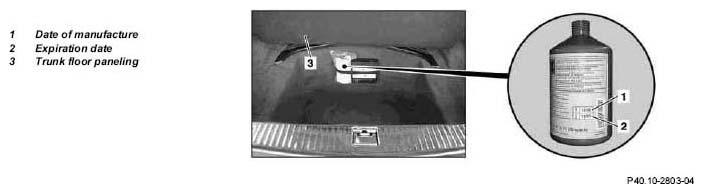

Fig 6: Identifying TIREFIT Puncture Sealing Compound With Manufacture And Expiration Date (Model 240)

G05258315

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 163, 169, 245, 414

Illustrated on model 169

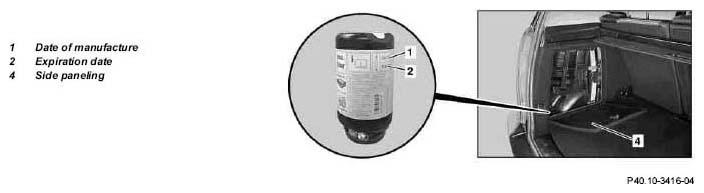

Fig 7: Identifying TIREFIT Puncture Sealing Compound With Manufacture And Expiration Date (Model 169)

G05258316

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 219.3

Fig 8: Identifying TIREFIT Puncture Sealing Compound With Manufacture And Expiration Date (Model 219.3)

G05258317

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 216, 221

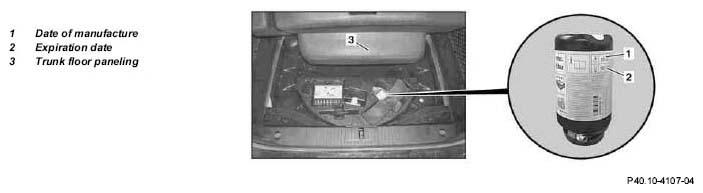

Fig 9: Identifying TIREFIT Puncture Sealing Compound With Manufacture And Expiration Date (Model 216, 221)

G05258318

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of poisoning caused by swallowing the TIREFIT emulsion. Risk of injury caused by skin contact and eye contact with the TIREFIT emulsion. Risk of fire caused by ignition of the TIREFIT emulsion	Do not swallow or come into contact with the TIREFIT tire sealant, which is an emulsion of rubber and terpene phenolic resin. No open fire or open light sources.	AS40.10-Z-0001-01A
1	Open luggage compartment lid	For model 211.6 the place where the TIREFIT tire repair kit is kept can vary depending on the vehicle body, see body manufacturer's operating manual.
2.1	Lift or remove trunk floor paneling (3)	Model 168, 170, 171, 203, 209, 211.0, 216, 219.3, 221, 230, 240
2.2	Lift load compartment floor (5)	Model 164, 211.2 /6 For model 211.6 the place where the TIREFIT tire repair kit is kept can vary depending on the vehicle body, see body manufacturer's operating manual.
2.3	Open left side paneling (4) in luggage compartment	Model 163, 169, 245, 414
3	Place cover mat (6) over vehicle tool kit insert to one side	Model 209 Black Series, Code P98
	Checking
4	Check expiration date (2) on the bottle.	Replace the TIREFIT tire sealant when the expiry date (2) is reached.
	TIREFIT tire sealant		AH40.10-P-0001-01A
		Dispose of used or out-of-date TIREFIT in a container designed for paintshop waste (see Workshop Equipment Manual Volume 2, Chapter U, Group 00 (22), Subject 2.3).
5	Install in the reverse order
