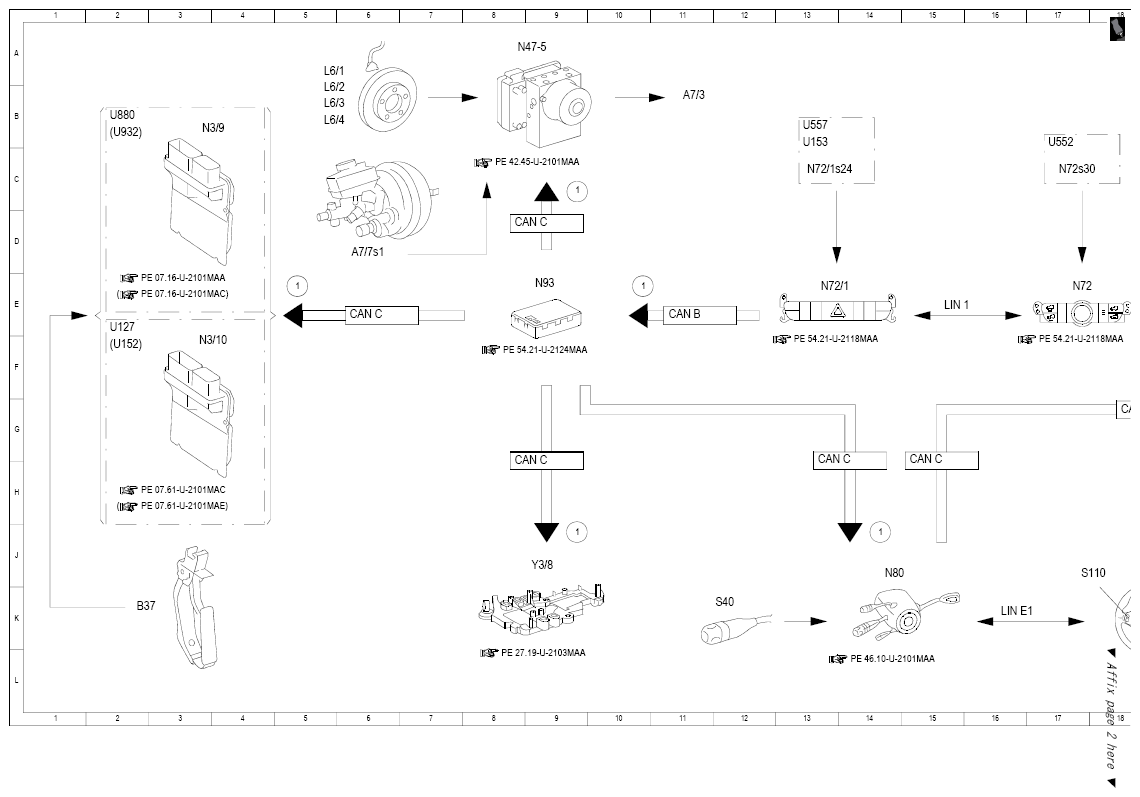

| 1 |
Off-road program switch, status |
5 E |
| 1 |
Off-road program switch, status |
9 J |
| 1 |
Off-road program switch, status |
9 C |
| 1 |
Off-road program switch, status |
10 E |
| 1 |
Off-road program switch, status |
14 J |

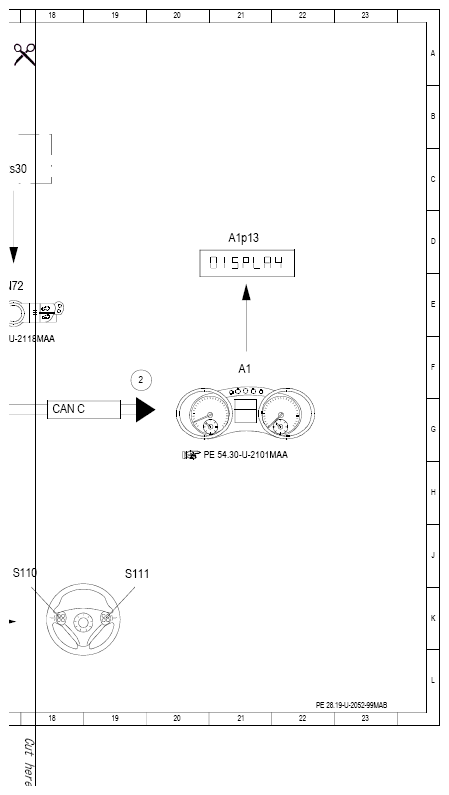

| 2 |
Multifunction display, actuation |
19 F |
| A1 |
Instrument cluster |
21 F |
| A1p13 |
Multifunction display |
21 D |
| A7/3 |
Traction system hydraulic unit |
11 B |
| A7/7s1 |
BAS release switch |
6 D |
| B37 |
Accelerator pedal sensor |
2 K |
| CAN B |
Interior CAN |
11 E |
| CAN C |
Engine compartment CAN |
6 E |
| CAN C |
Engine compartment CAN |
8 H |
| CAN C |
Engine compartment CAN |
8 D |
| CAN C |
Engine compartment CAN |
13 H |
| CAN C |
Engine compartment CAN |
15 H |
| CAN C |
Engine compartment CAN |
18 G |
| L6/1 |
Left front wheel speed sensor |
5 A |
| L6/2 |
Right front wheel speed sensor |
5 B |
| L6/3 |
Left rear wheel speed sensor |
5 B |
| L6/4 |
Right rear wheel speed sensor |
5 B |
| LIN 1 |
Instrument panel LIN |
15 E |
| LIN E1 |
Steering LIN |
16 K |
| N3/10 |
ME-SFI [ME] control module |
3 F |
| N3/9 |
CDI control module |
3 B |
| N47-5 |
ESP control module |
8 A |
| N72 |
Lower control field control module |
17 E |
| N72/1 |
Upper control panel control module |
13 E |
| N72/1s24 |
Downhill Speed Regulation switch |
13 C |
| N72s30 |
Downhill Speed Regulation switch |
17 C |
| N80 |
Steering column module |
14 J |
| N93 |
Central gateway control module |
9 E |
| S110 |
Left multifunction steering wheel pushbutton group |
17 J |
| S111 |
Right multifunction steering wheel pushbutton group |
19 J |
| S40 |
CC switch |
11 K |
| U127 |
Valid for engine 272, engine 273 KE |
2 F |
| U152 |
Valid for engine 156 |
2 F |
| U153 |
Valid for all except engine 156 |
13 C |
| U552 |
Valid for offroad package |
17 C |
| U557 |
Not valid for offroad package |
13 B |
| U880 |
Valid for engine 642 |
2 B |
| U932 |
Valid for engine 642 BLUETEC |
2 B |
| Y3/8 |
Electric control unit (VGS) |
9 J |
