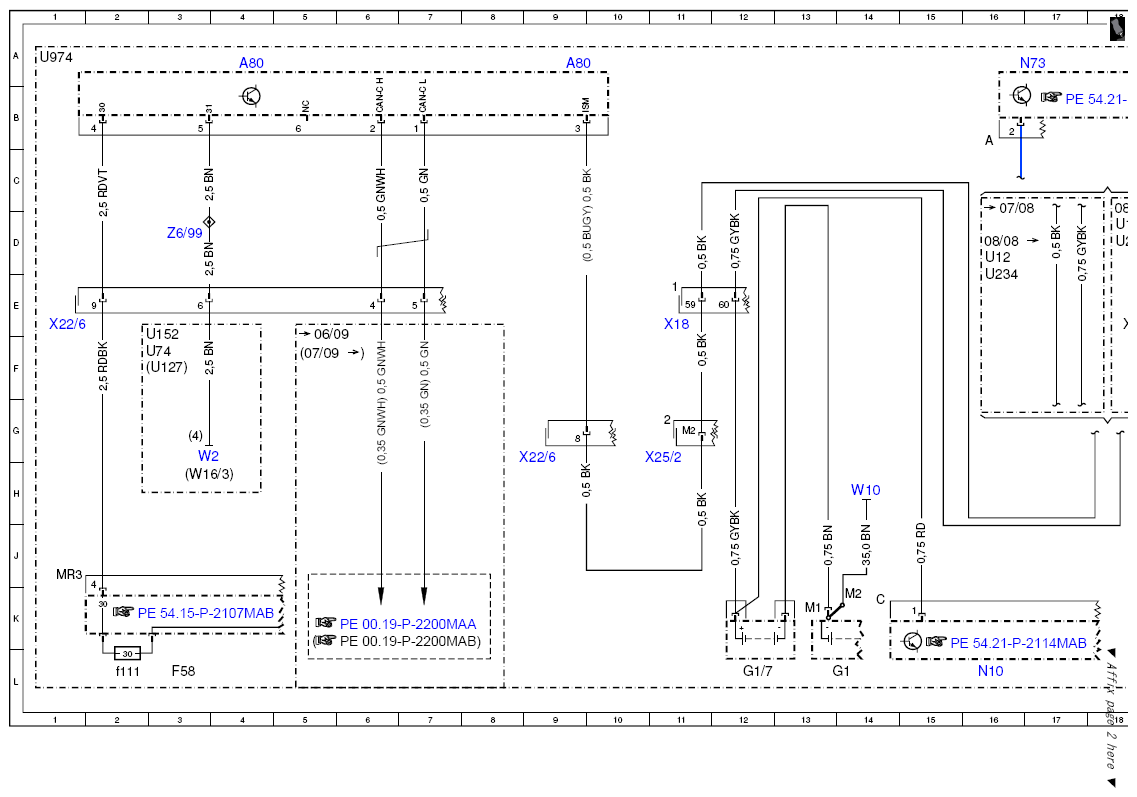

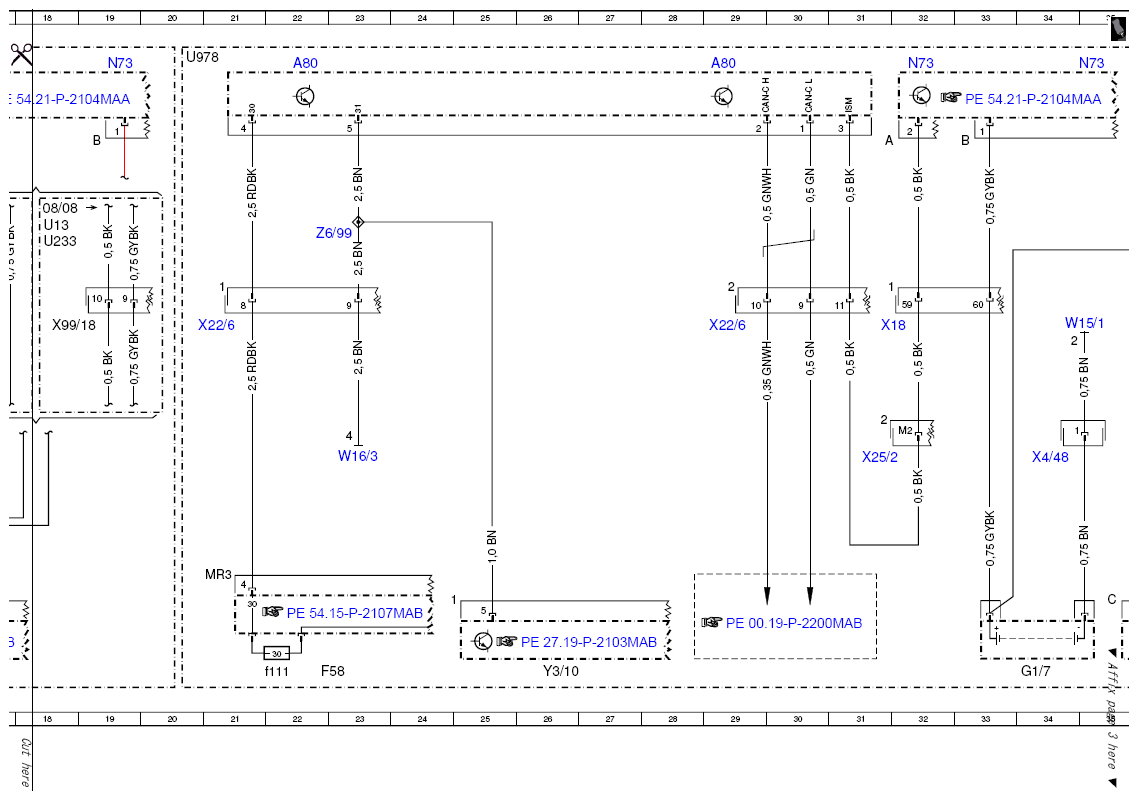

| A0 |
Color code key |
40L |
| A80 |
Intelligent servo module for DIRECT SELECT |
4A |
| A80 |
Intelligent servo module for DIRECT SELECT |
9A |
| A80 |
Intelligent servo module for DIRECT SELECT |
22A |
| A80 |
Intelligent servo module for DIRECT SELECT |
29A |
| F58 |
Engine compartment fuse and relay box |
3L |
| F58 |
Engine compartment fuse and relay box |
22L |
| F58f111 |
Fuse 111 |
2L |
| F58f111 |
Fuse 111 |
22L |
| G1 |
Battery |
14L |
| G1/7 |
Additional battery |
12L |
| G1/7 |
Additional battery |
34L |
| N10 |
Front SAM control unit |
16L |
| N10 |
Front SAM control unit |
37L |
| N73 |
EIS [EZS] control unit |
17A |
| N73 |
EIS [EZS] control unit |
19A |
| N73 |
EIS [EZS] control unit |
32A |
| N73 |
EIS [EZS] control unit |
35A |
| U12 |
Valid for left-hand drive vehicles |
16D |
| U127 |
Valid for engine 272, engine 273 KE |
3F |
| U13 |
Valid for right-hand drive vehicles |
18D |
| U152 |
Valid for engine 156 |
2F |
| U233 |
Valid for kneebag |
18D |
| U234 |
Not valid for kneebag |
16E |
| U74 |
Valid for diesel engines |
2F |
| U974 |
Not valid for full hybrid drive |
1A |
| U978 |
Valid for full hybrid drive |
20A |
| W10 |
Ground (battery) |
14H |
| W15/1 |
Ground (right footwell) |
34E |
| W16/3 |
Ground (left assembly compartment, power ground) |
23G |
| W16/3 |
Ground (left assembly compartment, power ground) |
3H |
| W2 |
Ground (right front, at lamp unit) |
3G |
| X18 |
Interior/cockpit connector |
11E |
| X18 |
Interior/cockpit connector |
32E |
| X22/6 |
Automatic transmission/intelligent servo module connector |
21E |
| X22/6 |
Automatic transmission/intelligent servo module connector |
9H |
| X22/6 |
Automatic transmission/intelligent servo module connector |
1E |
| X22/6 |
Automatic transmission/intelligent servo module connector |
29E |
| X25/2 |
Engine compartment/interior compartment connector |
11H |
| X25/2 |
Engine compartment/interior compartment connector |
31H |
| X4/48 |
Additional battery separating point |
34H |
| X99/18 |
EZS intermediate connector |
18E |
| Y3/10 |
Hybrid vehicle fully integrated transmission control controller unit |
26L |
| Z6/99 |
Transmission circuit 31 connector sleeve |
3D |
| Z6/99 |
Transmission circuit 31 connector sleeve |
23D |
