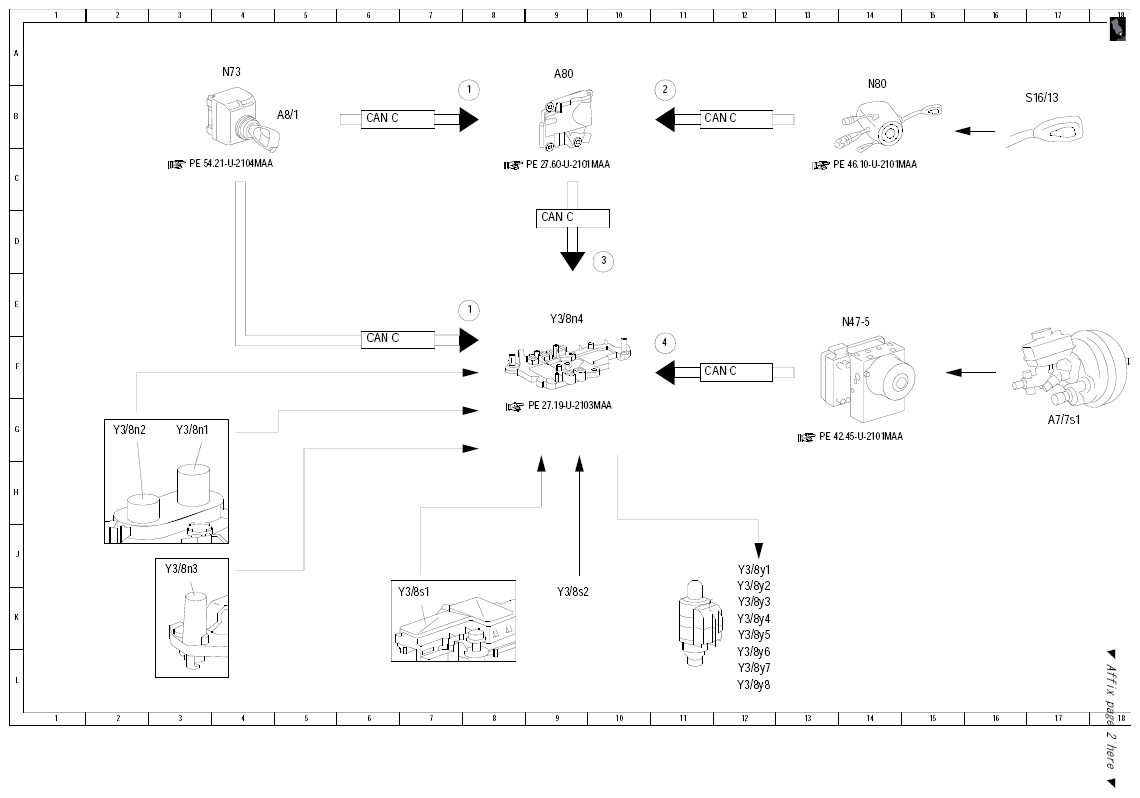

| 1 |
Circuit 15, status |
8 E |
| 1 |
Circuit 15, status |
8 B |
| 2 |
DIRECT SELECT gear selector switch, status |
11 B |
| 3 |
Range selection position, status |
10 D |
| 4 |
Service brake, status |
11 F |
| A7/7s1 |
BAS release switch |
17 G |
| A8/1 |
Transmitter key |
5 B |
| A80 |
Intelligent servo module for DIRECT SELECT |
9 A |
| CAN C |
Engine compartment CAN |
6 F |
| CAN C |
Engine compartment CAN |
6 B |
| CAN C |
Engine compartment CAN |
9 D |
| CAN C |
Engine compartment CAN |
11 F |
| CAN C |
Engine compartment CAN |
11 B |
| N47-5 |
ESP control module |
14 E |
| N73 |
EIS [EZS] control unit |
4 A |
| N80 |
Steering column module |
14 B |
| S16/13 |
Gear selector switch DIRECT SELECT |
16 B |
| Y3/8n1 |
Turbine speed sensor (VGS) |
3 G |
| Y3/8n2 |
Internal speed sensor (VGS) |
2 G |
| Y3/8n3 |
Output speed sensor (VGS) |
3 J |
| Y3/8n4 |
Fully integrated transmission control (VGS) control unit |
9 E |
| Y3/8s1 |
Selection range sensor (VGS) |
6 K |
| Y3/8s2 |
Transmission oil temperature sensor (VGS) |
9 K |
| Y3/8y1 |
Working pressure control solenoid valve (VGS) |
12 J |
| Y3/8y2 |
K1 clutch control solenoid valve (VGS) |
12 K |
| Y3/8y3 |
K2 clutch control solenoid valve (VGS) |
12 K |
| Y3/8y4 |
K3 clutch control solenoid valve (VGS) |
12 K |
| Y3/8y5 |
B1 brake control solenoid valve (VGS) |
12 K |
| Y3/8y6 |
B2 brake control solenoid valve (VGS) |
12 L |
| Y3/8y7 |
B3 brake control solenoid valve (VGS) |
12 L |
| Y3/8y8 |
Torque converter lockup clutch control solenoid valve (VGS) |
12 L |
