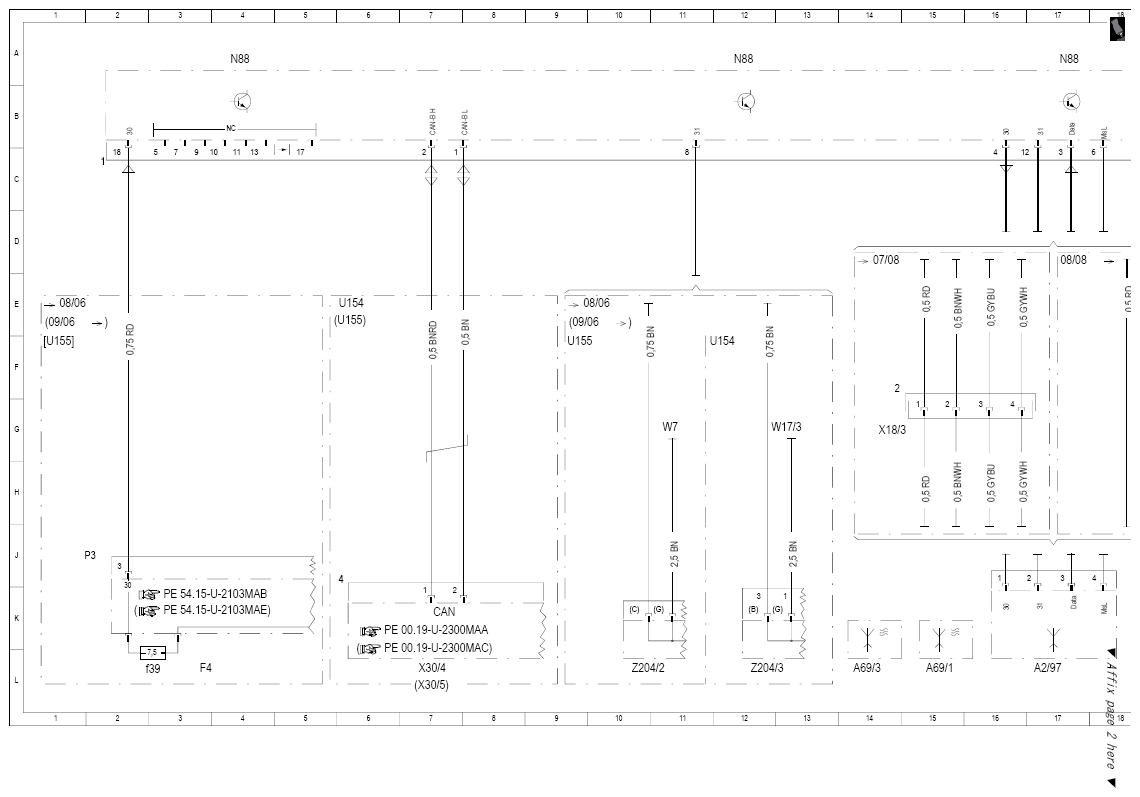

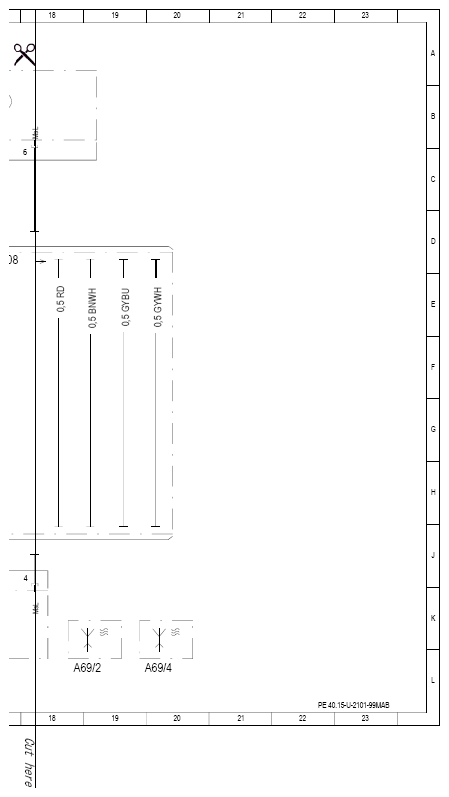

| A2/97 |
Central TPM [RDK] antenna |
17 L |
| A69/1 |
Left front TPM [RDK] wheel sensor |
15 L |
| A69/2 |
Right front TPM [RDK] wheel sensor |
18 L |
| A69/3 |
Left rear TPM [RDK] wheel sensor |
14 L |
| A69/4 |
Right rear TPM [RDK] wheel sensor |
19 L |
| F4 |
Load compartment fuse and relay box |
3 L |
| F4f39 |
Fuse 39 |
2 L |
| N88 |
TPM [RDK] control unit |
4 A |
| N88 |
TPM [RDK] control unit |
12 A |
| N88 |
TPM [RDK] control unit |
17 A |
| U154 |
Valid for 164.1 |
6 E |
| U154 |
Valid for 164.1 |
11 F |
| U155 |
Valid for 164.8 |
1 F |
| U155 |
Valid for 164.8 |
5 E |
| U155 |
Valid for 164.8 |
9 F |
| W17/3 |
Ground 2 (right rear seat) |
12 G |
| W7 |
Ground (right wheelhouse in luggage compartment) |
11 G |
| X18/3 |
Interior/fuel tank connector |
14 G |
| X30/4 |
Right voltage distributor (CAN) connector |
7 L |
| X30/5 |
Left voltage distributor (CAN) connector |
7 L |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
10 L |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
12 L |
