| A0 |
Color code key |
23L |
| A2/97 |

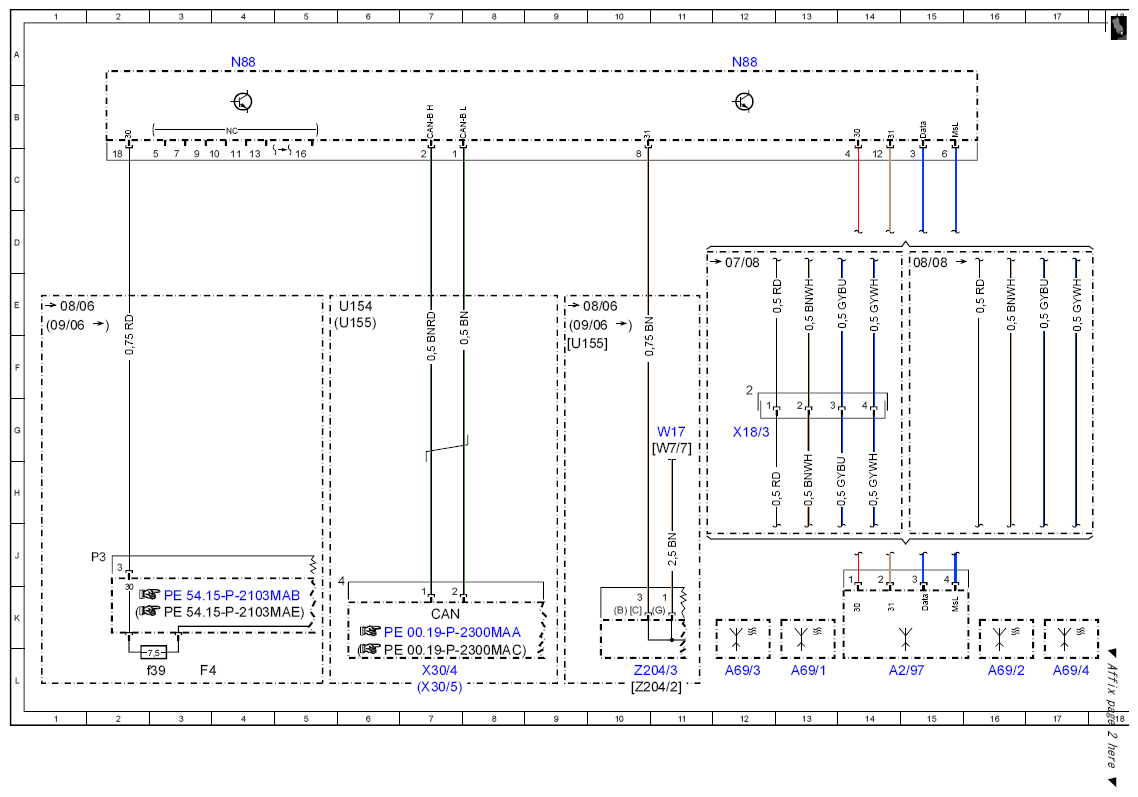

Central TPM [RDK] antenna |
14L |
| A69/1 |
Left front TPM [RDK] wheel sensor |
13L |
| A69/2 |
Right front TPM [RDK] wheel sensor |
16L |
| A69/3 |
Left rear TPM [RDK] wheel sensor |
12L |
| A69/4 |
Right rear TPM [RDK] wheel sensor |
17L |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f39 |
Fuse 39 |
3L |
| N88 |
TPM [RDK] control unit |
4A |
| N88 |
TPM [RDK] control unit |
12A |
| U154 |
Valid for 164.1 |
6E |
| U155 |
Valid for 164.8 |
5E |
| U155 |
Valid for 164.8 |
|
| W17 |
Ground (right rear seat) |
11G |
| W7/7 |
Ground (right spare tire well) |
9E |
| X18/3 |
Interior/fuel tank connector |
12G |
| X30/4 |
Right voltage distributor (CAN) connector |
7L |
| X30/5 |
Left voltage distributor (CAN) connector |
7L |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
11L |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
10L |
